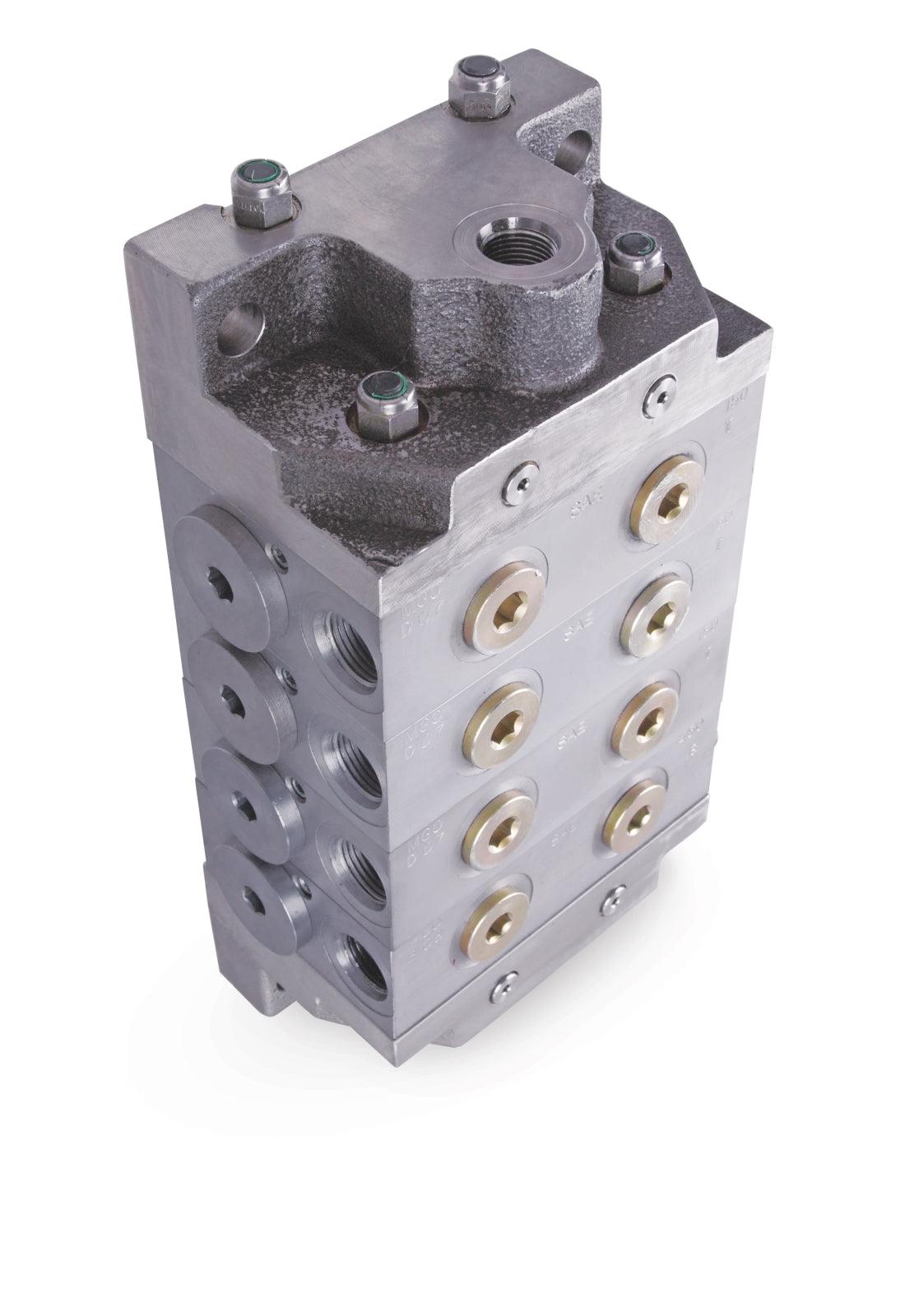

Graco Trabon® MGO 4-Section Divider Valves - 600T-600T-600T-150S

Graco Trabon® MGO 4-Section Divider Valves - 600T-600T-600T-150S

Regular price
$23,570.00
Sale price
$23,570.00
Quantity must be 1 or more




While critical bearings are hard at work on your largest machine tools, Graco's line of centralised and automatic lubrication systems is delivering precise amounts of lubricant at frequent intervals to every lube point–even in hard to reach areas.

  • Lubricates large bearings
  • Delivers up to 19.7 cubic cm (1.2 cubic in.) per cycle and has a wide range of accessories to monitor critical lubrication points
  • Largest output available with 22 outlets and 11 working sections
  • SAE porting for a sealed outlet to ensure leak-free life
  • TFE standard seals allow for maximum fluid compatibility and high temperature use

UPC Product: 00633955656215
Family Code: FAMMPM
Unit of Measure: EA
Height: 12 IN   |  30.48 CM
Length: 24 IN   |  60.96 CM
Width: 10.8 IN   |  27.432 CM
Volume: .051 M3   |  1.8 FT3
Chargeable Weight: 27.22 KG  | 60 LBS

Technical Specifications

Maximum Working Pressure (psi) 6000
Inlet Thread Type SAE
Maximum Working Pressure (bar) 413
Cycle Indicator None
Outlet Thread Type SAE
Maximum Working Pressure (kPa) 41300
Maximum NLGI Grade #2
Material Carbon Steel
Compatible Material Oil, Grease
Type Divider Valve
Divider Valve Series MGO
Application In-Plant Machinery
Model Trabon
Series MGO

;
