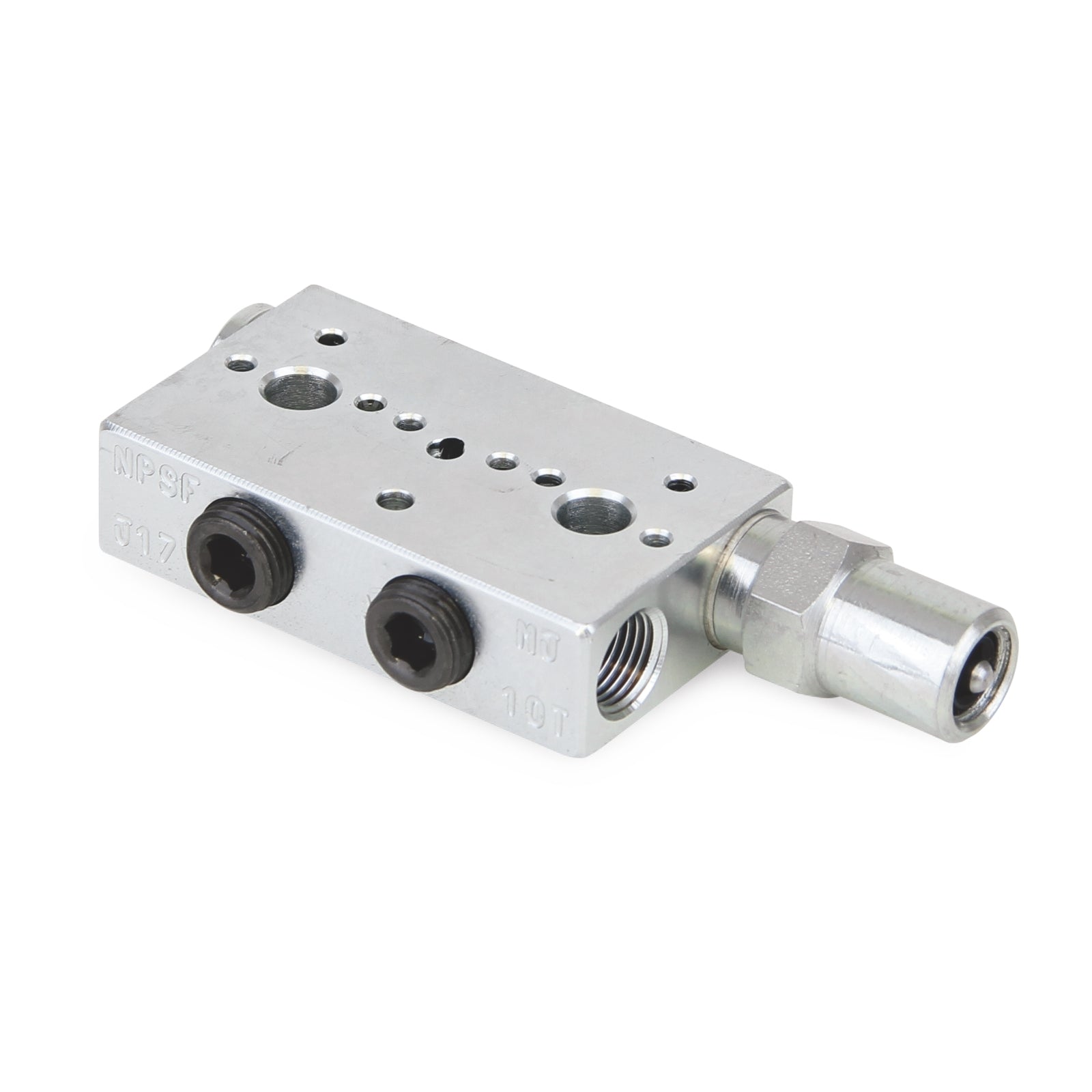

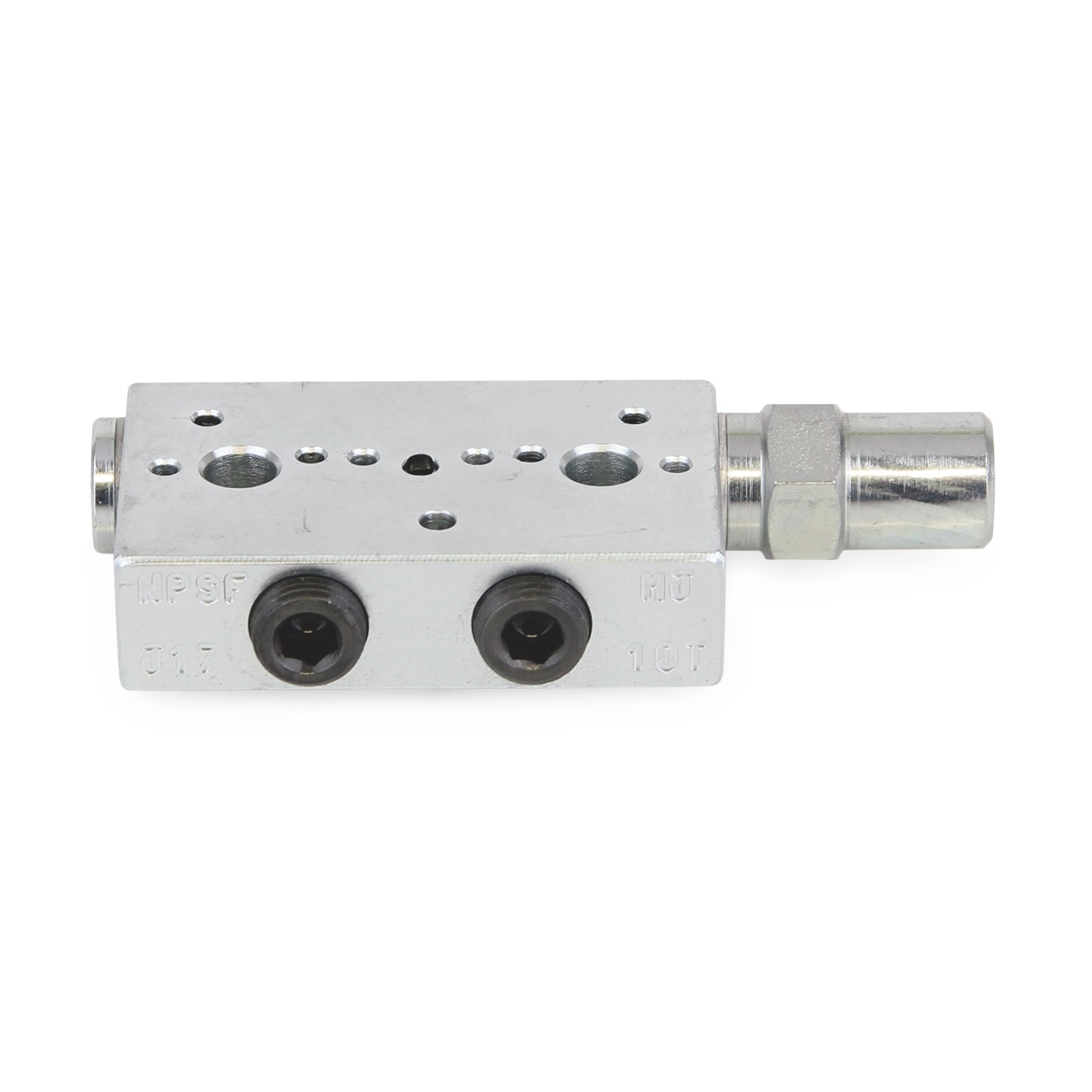

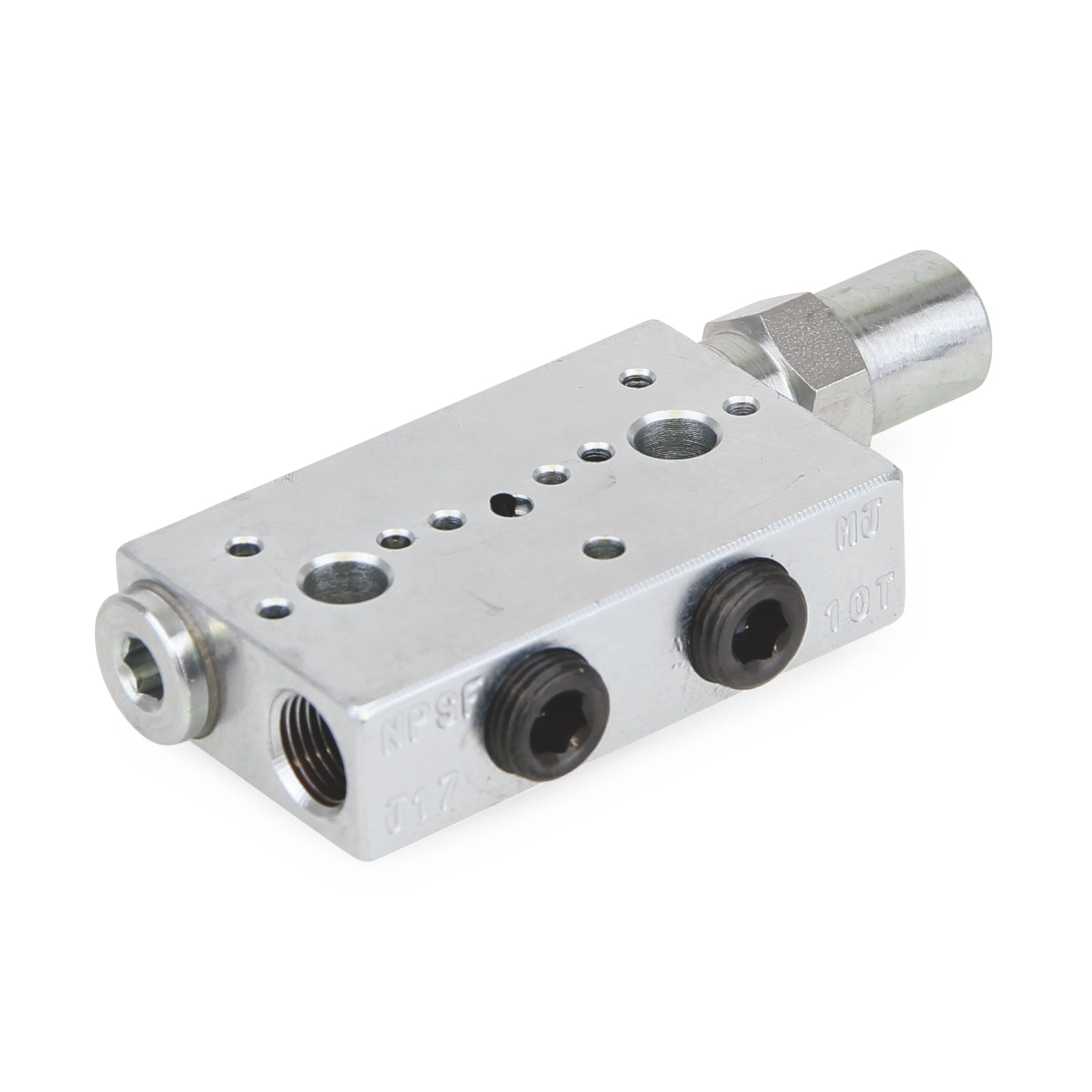

Graco Trabon® MJ Series-Flo Divider Valve with Right Hand Cycle Pin - MJ-15S - 0.49 cm³³ (0.030 in.)
Graco Trabon® MJ Series-Flo Divider Valve with Right Hand Cycle Pin - MJ-15S - 0.49 cm³³ (0.030 in.)
Graco Trabon® MJ Series-Flo Divider Valve with Right Hand Cycle Pin - MJ-15S - 0.49 cm³³ (0.030 in.)

Graco Trabon® MJ Series-Flo Divider Valve with Right Hand Cycle Pin - MJ-15S - 0.49 cm³³ (0.030 in.)

Regular price
$1,487.50
Sale price
$1,487.50
Quantity must be 1 or more


The Trabon MJ series features a compact and easily customisable design that can be tailor fit to meet a variety of specific lube requirements. Capable of handling grease grades up to NLGI #1.

Compact and customisable divider block series for machine tool, product or press equipment.

  • Space efficient–from 6 to 16 points from one block assembly
  • Built-in outlet check valves ensure accurate lube delivery, every time
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
  • Lubriquip part number 001-015-601
UPC Product: 00633955346635
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 3.6 IN   |  9.144 CM
Width: 3.048 CM   |  1.2 IN
Volume: 0 M3   |  .014 FT3
Chargeable Weight: .4 LBS  | .18 KG

Technical Specifications

Maximum Cycle Rate (cycles/min) 60
Maximum Working Pressure (psi) 2000
Outlet Size (mm) 3.175
Minimum Working Pressure (psi) 200
Outlet Size (cm) 0.3175
Number of Outlets 1
Maximum Working Pressure (bar) 138
Maximum Operating Temperature (°F) 200
Cycle Indicator Cycle Indicator
Outlet Thread Type NPSF
Outlet Thread Gender Female
Outlet Size (in) 1/8
Maximum Working Pressure (kPa) 13800
Maximum NLGI Grade #1
Material Carbon Steel
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 93
Type Divider Valve
Divider Valve Series MJ
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Model Trabon
Series MJ
Discharge Per Piston Stroke (in³) 0.030
