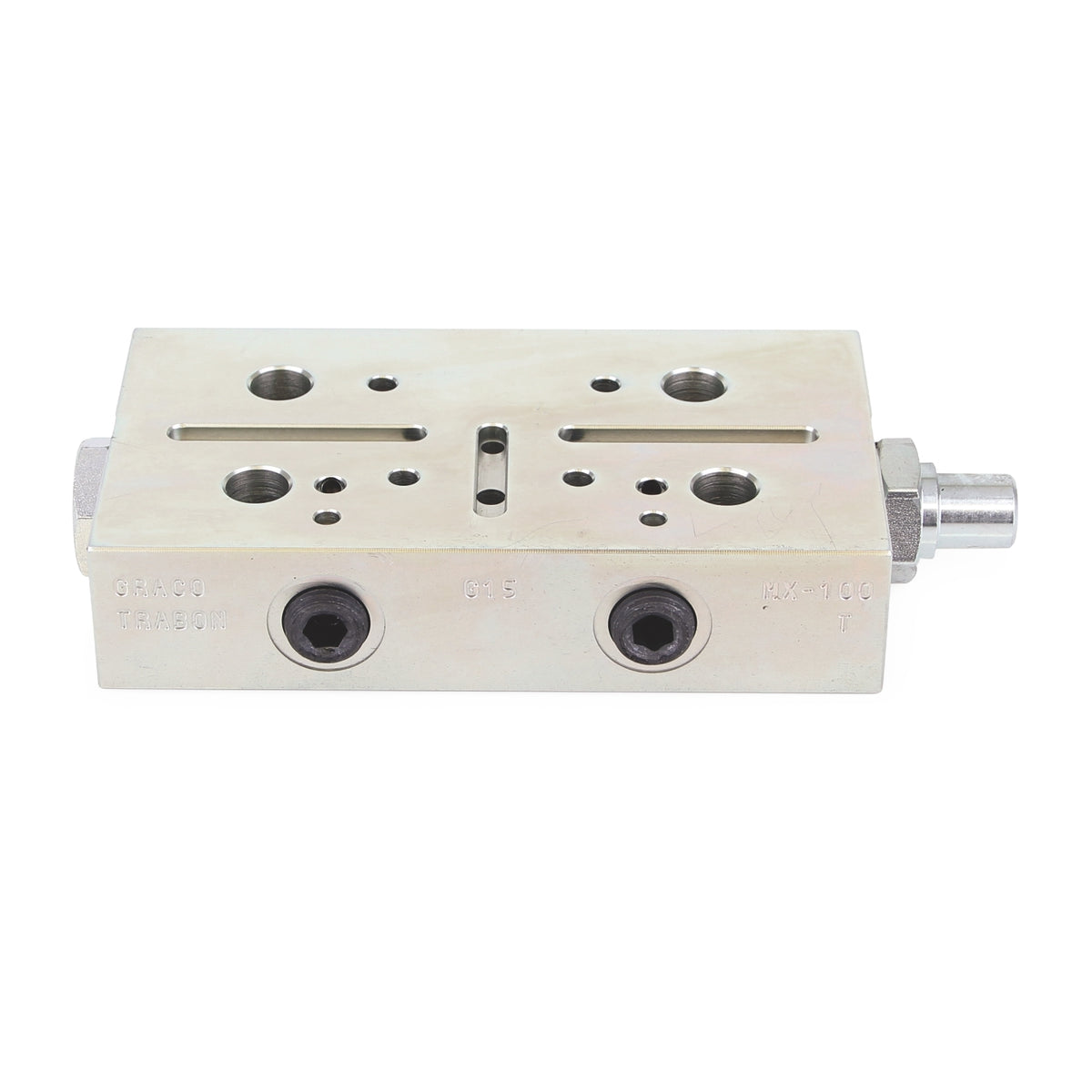

Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Lubricates large bearings
- Delivers up to 4.92 cubic cm (0.3 cubic in.) per cycle and has a wide range of accessories to monitor critical lubrication points
- Durable design withstands harsh environments and operating conditions
- Built-in outlet check valves ensure accurate lube delivery every time
- Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 004-100-602
UPC Product: 00633955346772
Family Code: FAMMPM
Unit of Measure: EA
Height:
1.2 IN
| 3.048 CM
Length:
6 IN
| 15.24 CM
Width:
3.6 IN
| 9.144 CM
Volume:
.018 FT3
| .001 M3
Chargeable Weight:
4 LBS
| 1.81 KG
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 60 |
|---|---|
| Maximum Working Pressure (psi) | 3000 |
| Outlet Size (mm) | 6.35 |
| Minimum Working Pressure (psi) | 200 |
| Outlet Size (cm) | 0.635 |
| Number of Outlets | 2 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Operating Temperature (°F) | 200 |
| Cycle Indicator | Cycle Indicator |
| Outlet Thread Type | NPSF |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/4 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 93 |
| Type | Divider Valve |
| Divider Valve Series | MX |
| Application | In-Plant Machinery |
| Model | Trabon |
| Series | MX |
| Discharge Per Piston Stroke (in³) | 0.100 |
