For use with single line, parallel, injector based automatic lubrication systems
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

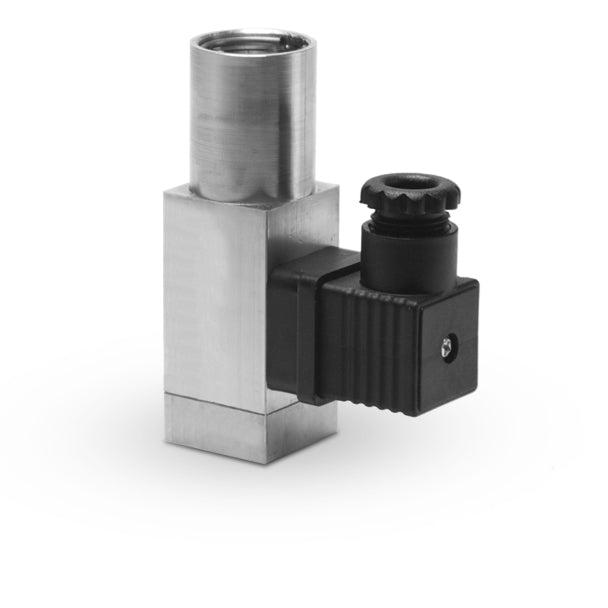

- Pressure Switch, 1/4” NPT(f) inlet, DIN 43650 connector (1 NO/1 NC), 7,250 psi (500 bar)
- IP65 rated for harsh environments. Fluoroelastomer seals are suitable for use in high temperature environments and synthetic lubricants.
UPC Product: 00633955211674
Family Code: FAMCPT
Unit of Measure: EA
Height:
2 IN
| 5.08 CM
Length:
5 IN
| 12.7 CM
Width:
3.6 IN
| 9.144 CM
Volume:
.021 FT3
| .001 M3
Chargeable Weight:
.58 LBS
| .26 KG
Technical Specifications
| Adjustable | Adjustable |
|---|---|
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 0.25 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Viton, Aluminum, Stainless Steel, Polyamid |
| Power Connection Type | DIN 43650 |
| Type | Pressure Switch |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
