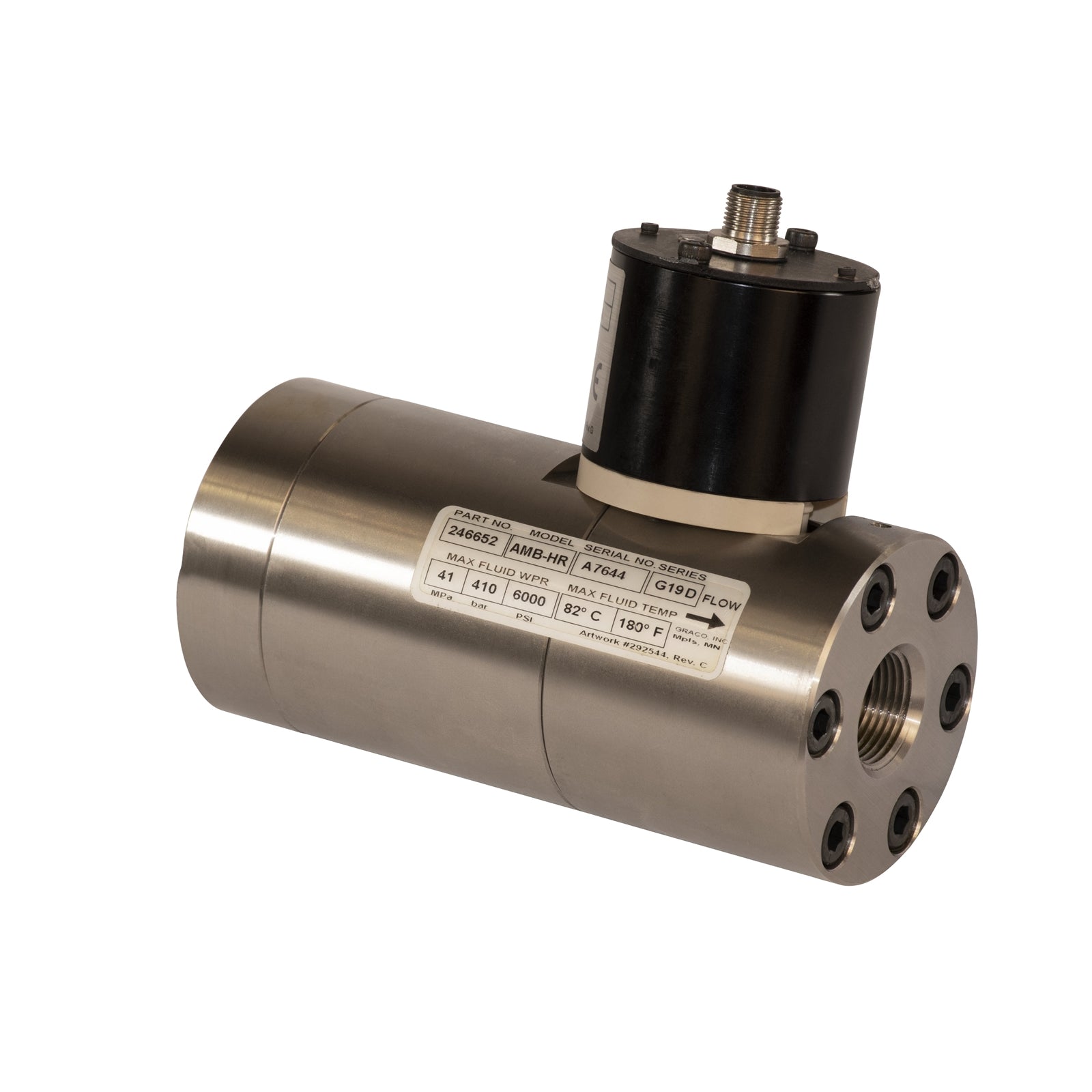

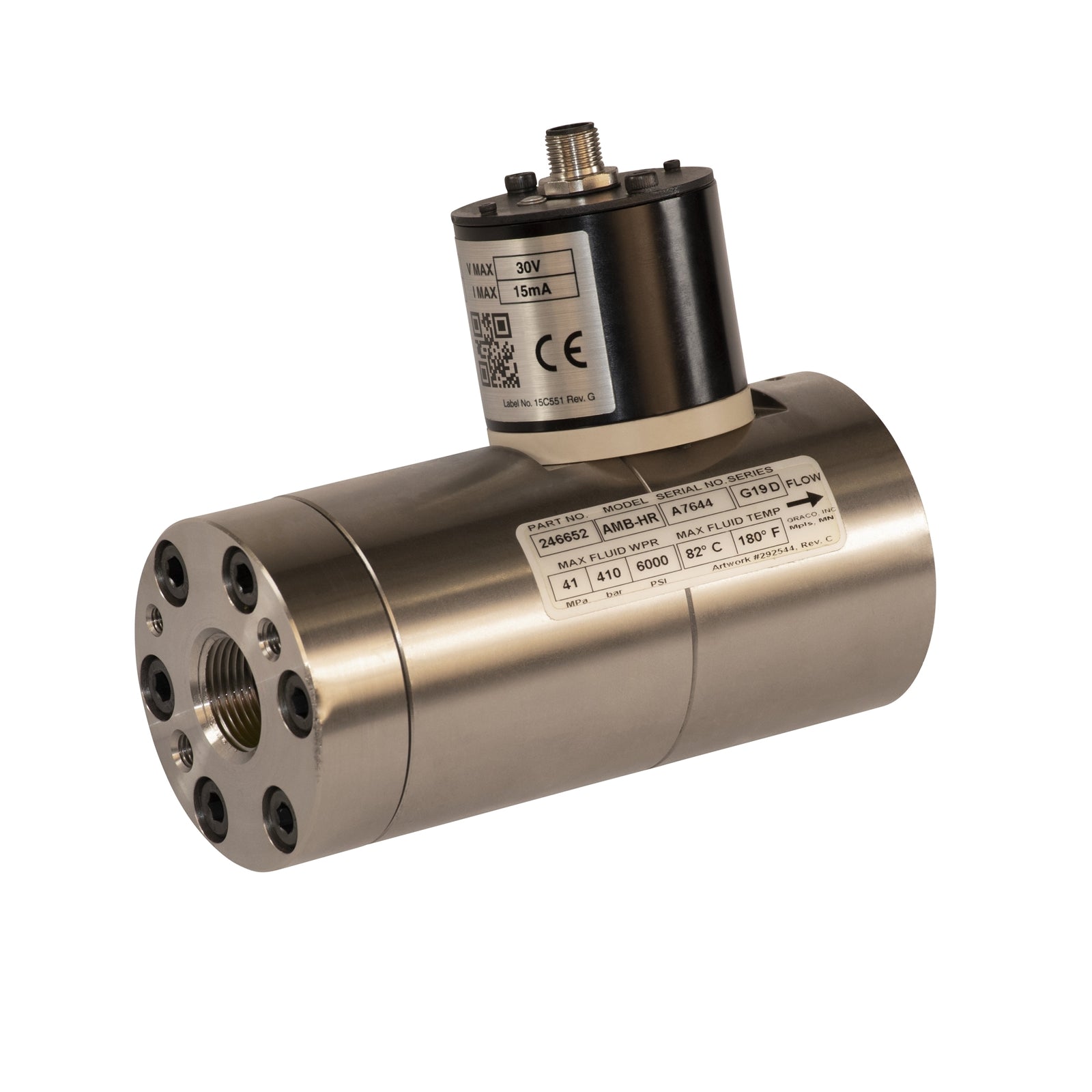

High Resolution Helical Gear Flow Meter
High Resolution Helical Gear Flow Meter

High Resolution Helical Gear Flow Meter

Regular price
$9,540.00
Sale price
$9,540.00
Quantity must be 1 or more


The High Resolution Helical Gear Flow Meter is used for precise and accurate flow rate measurements of a variety of materials.

  • Positive displacement, helical gear flow meter
  • Designed to detect a wide range of flow rates
  • Highly accurate, even with low flow rates
  • CE-marked for easy integration
  • Stainless steel, water-base compatible for medium to high viscosity materials
UPC Product: 00633955025455
Family Code: FAMAPA
Unit of Measure: EA
Height: 9.6 IN   |  24.384 CM
Length: 15.6 IN   |  39.624 CM
Width: 12 IN   |  30.48 CM
Volume: 1.04 FT3   |  .029 M3
Chargeable Weight: 12.76 LBS  | 5.79 KG

Technical Specifications

Compatible Material Solventborne Paints, Solventborne Resins, Oil, Catalysts
For Use With Proportioning Equipment, Equipos de dosificación
Includes Flow Meter, Caudalímetro, sensor, Sensor
Inlet Size (in) 3/4
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Flow Rate (cc/min) 7550
Maximum Fluid Pressure (bar) 410
Maximum Fluid Pressure (kPa) 41000
Maximum Fluid Pressure (psi) 6000
Maximum Viscosity (cP) 1000000
Minimum Flow Rate (cc/min) 190
Minimum Viscosity (cP) 30
Number of Pieces 1
Overall Height (cm) 14.2
Overall Height (in) 5.6
Overall Height (mm) 142
Overall Length (cm) 15.5
Overall Length (in) 6.1
Overall Length (mm) 155
Type Helical Gear Flow Meter
Flow Control Type Regulation
Maximum Fluid Temperature (°F) 180
Maximum Fluid Temperature (°C) 82
Maximum Working Pressure (MPa) 41
Maximum Working Pressure (psi) 6000
Maximum Working Pressure (kPa) 41000
Maximum Working Pressure (bar) 410
