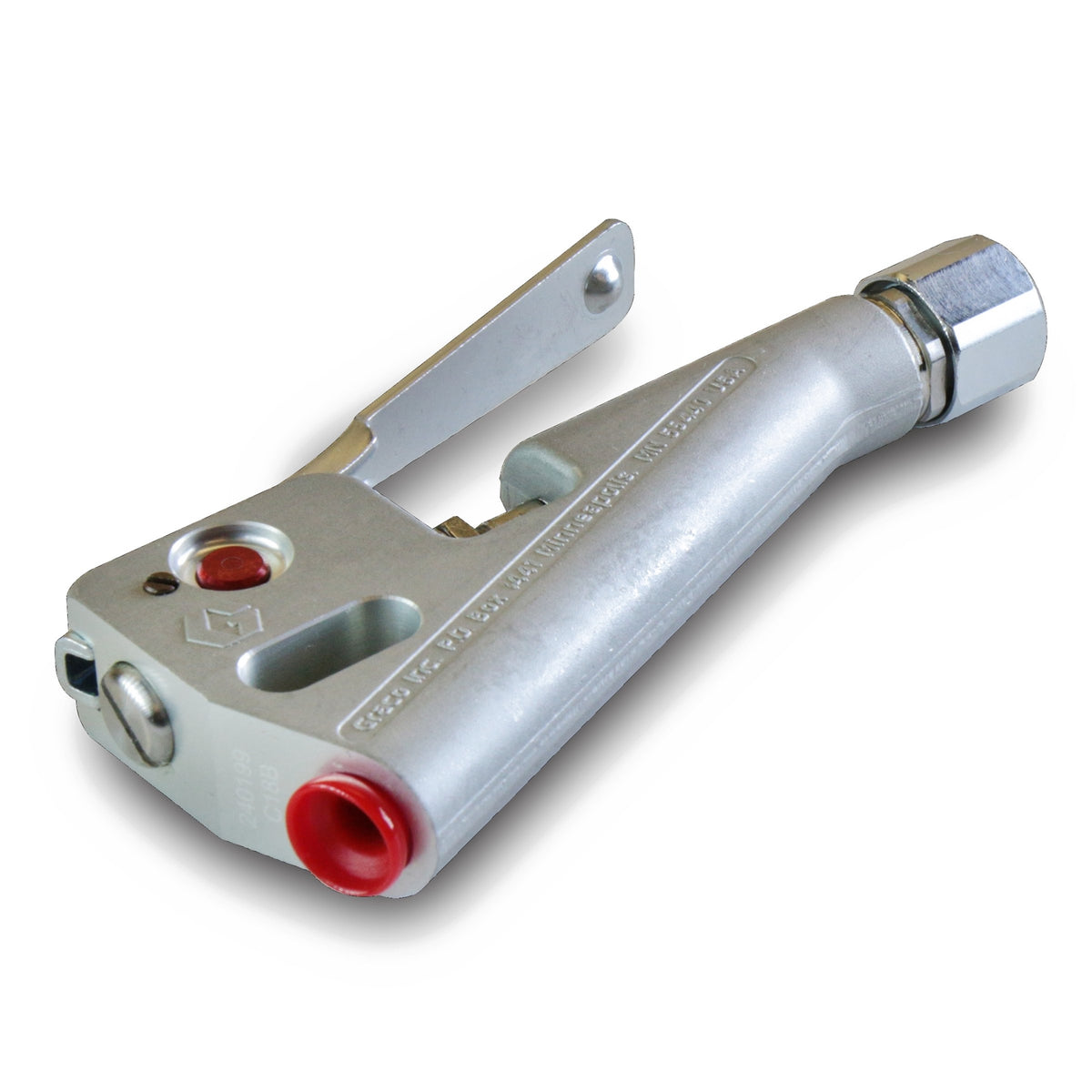

For precise control of low-viscosity sealants and adhesives
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Handles:
- PVC sealers with glass or plastic filler
- Low to high abrasive fluids
- Waterborne or solventborne materials
- Most fluids up to 150,000 centipoise
- Well-suited for dispensing onto horizontal surfaces
- Selectable trigger lock and hanger slot for operator convenience
- Accepts flanged or threaded tips for a variety of dispensing needs
- Lowest trigger force and weight in its class
UPC Product: 00633955818200
Family Code: FAMAPA
Unit of Measure: EA
Height:
4 IN
| 10.16 CM
Length:
4.5 IN
| 11.43 CM
Width:
10.5 IN
| 26.67 CM
Volume:
.109 FT3
| .003 M3
Chargeable Weight:
1.139 LBS
| 0.517 KG
Technical Specifications
| Type | Dispense Gun |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Connection Type | Threaded, Flange |
| Gun Activation | Manual |
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 234 |
| Maximum Working Pressure (kg/cm²) | 239 |
| Maximum Working Pressure (kPa) | 23400 |
| Maximum Working Pressure (MPa) | 23.4 |
| Maximum Working Pressure (psi) | 3400 |
| Nozzle Size (cm) | 0.635 |
| Nozzle Size (in) | 0.25 |
| Number of Outputs | 1 |
| Weight (kg) | 0.33 |
| Weight (lb) | 0.725 |
| Model | Ultra-Lite |
