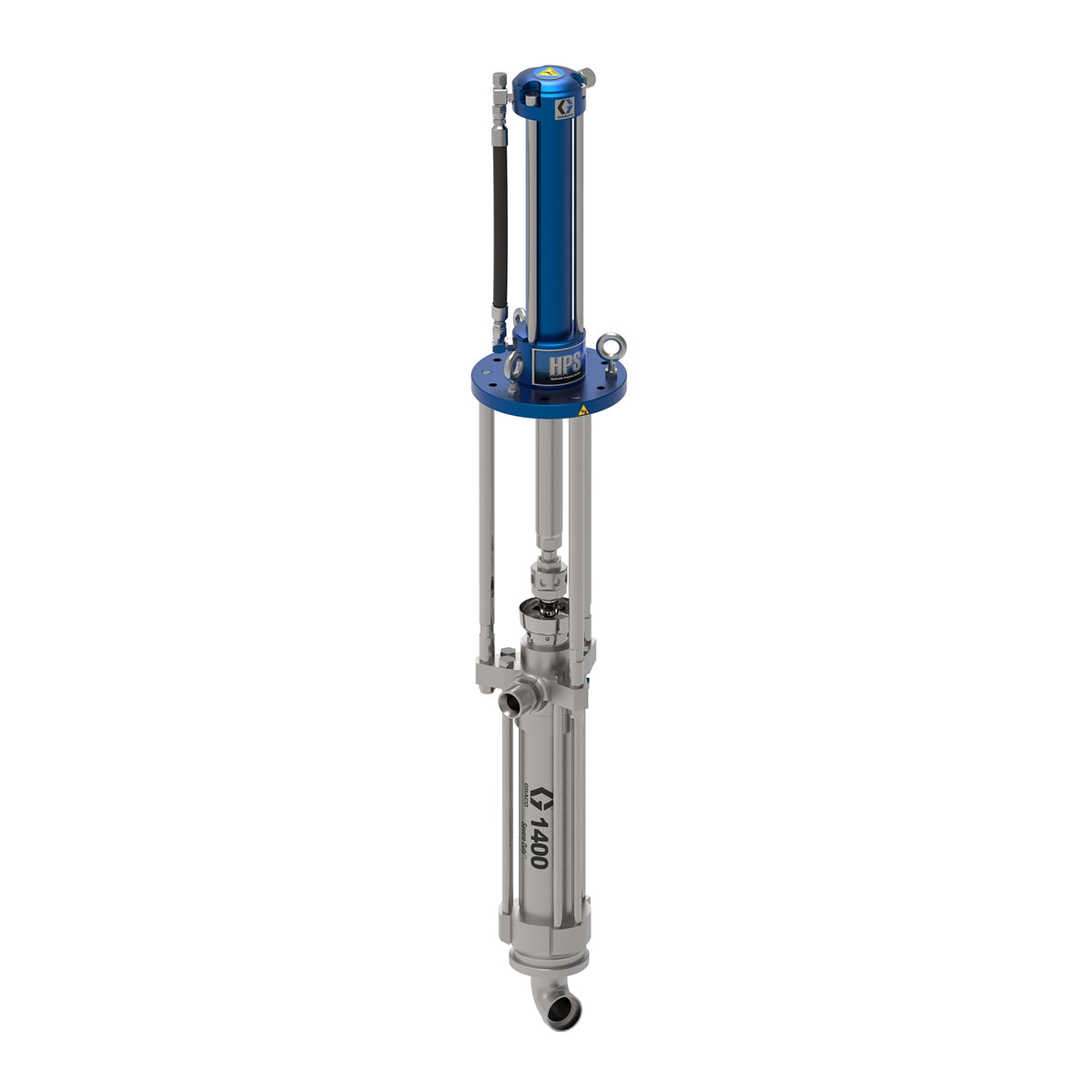

The RoadLazer HPS are industry-leading pumping systems that provide true market-leading performance for the most demanding long-line striping applications. With an incredibly long 286 mm stroke, Xtreme Seal™ packings and Severe Duty pump coating, you are ensured longevity as well; or choose the MaxLife pump coating for even longer life.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Higehst Production Rate
- Stripe wider lines at faster speeds – get more miles done in a day
- 68 lpm - 138 bar
-
Consistent Paint Delivery
- Minimal pressure drop at change-over for perfect lines
-
Long Stroke, Long Life
- Incredibly long 286 mm stroke means more paint per stroke and longer overall pump life
-
Small Footprint
- Slim design will fit into any long-line truck application
-
No Stall Hydraulic System
- Precision machined parts and ultra-fast change-over is stall-free – eliminating down-time
-
100% O-Ring Sealed Design
- All connections are o-ring sealed − eliminating the possibility of hydraulic fluid leaks
UPC Product: 00769946493580
Family Code: MISC
Unit of Measure: EA
Height: 44.45 CM | 17.5 IN
Length: 29.25 IN | 74.295 CM
Width: 73 IN | 185.42 CM
Volume: .612 M3 | 21.607 FT3
Chargeable Weight: 235 LBS | 106.59 KG
Technical Specifications
| Model | RoadLazer |
|---|---|
| Series | HPS |
| Type | Hydraulic Piston Pump |
