Tracks totals in two modes – reset for periodic history and
Typical applications include automotive and heavy-duty dealerships, service and fast lube centers, fleet service facilities and in-plant.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Durable design for rugged, indoor use
- Easy to use – dispenses pints, quarts, liters or gallons
- 0.5 gpm to 15 gpm (1.9 lpm to 57 lpm) flow rate
- 1500 psi (103 bar) maximum pressure, 1/2 in NPT inlet
UPC Product: 00633955600300
Family Code: FAMDEF
Unit of Measure: EA
Height:
9.6 IN
| 24.384 CM
Length:
8.4 IN
| 21.336 CM
Width:
4.8 IN
| 12.192 CM
Volume:
.224 FT3
| .006 M3
Chargeable Weight:
2.8 LBS
| 1.27 KG
Technical Specifications
| Battery Chemistry | Alkaline |
|---|---|
| Battery Size | AA |
| For Use With | Diesel Exhaust Fluid, Fluido de escape diésel |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 0.5 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | BSPP |
| Maximum Flow Rate (GPM) | 15 |
| Maximum Flow Rate (L/min) | 57 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Working Pressure (bar) | 105 |
| Maximum Working Pressure (kPa) | 10500 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Repeatability (%) | ±0.15 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Unit of Measure | Quart, Liter, Gallon, Pint |
| Weight (kg) | 0.82 |
| Weight (lb) | 1.8 |
| Wetted Material | Stainless Steel, Fluoroelastomer, PBT |

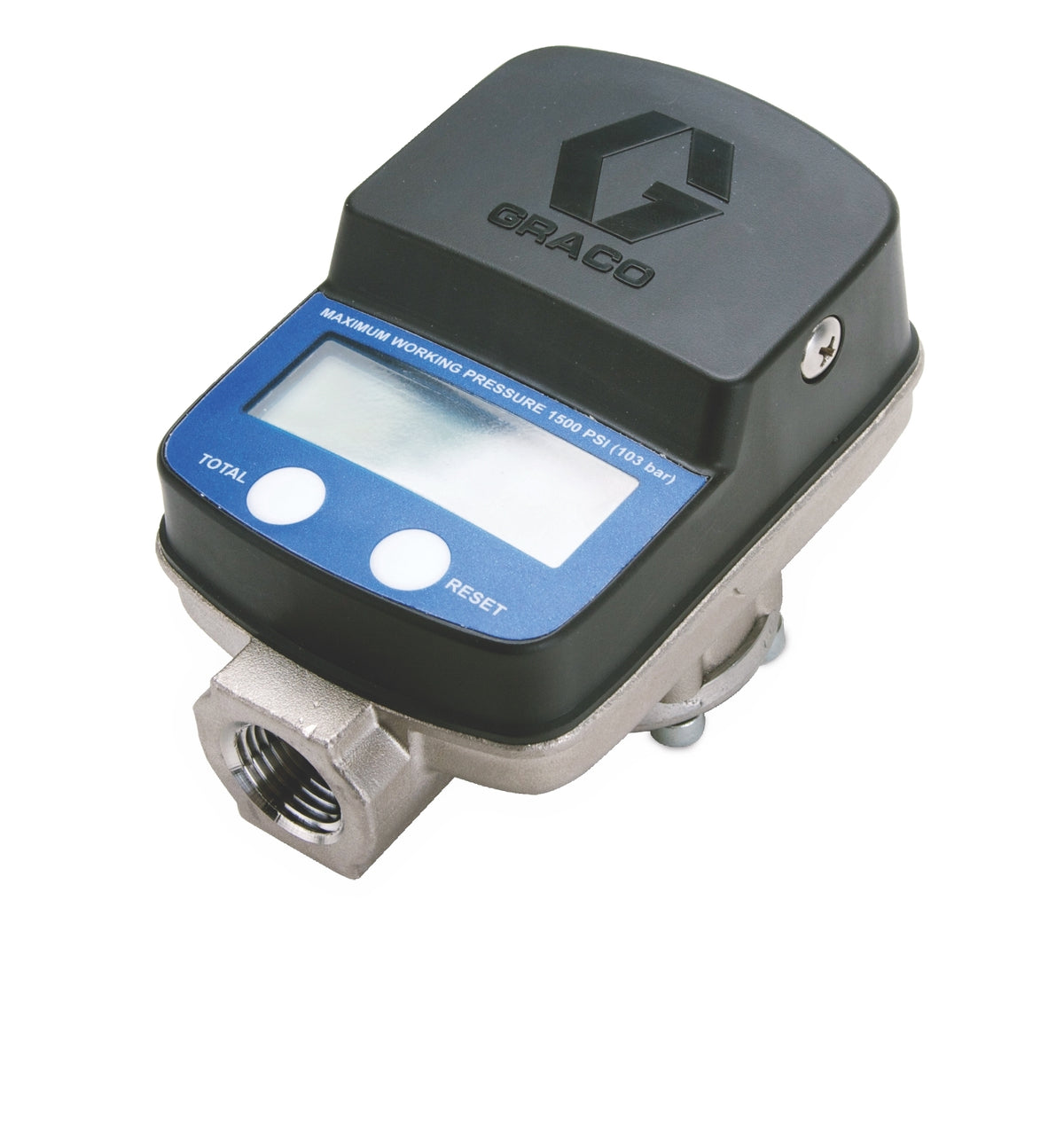

| Type | Electronic In-Line Meter |
| Compatible Material | Diesel Exhaust Fluid |
| Maximum Working Pressure (MPa) | 10.5 |
