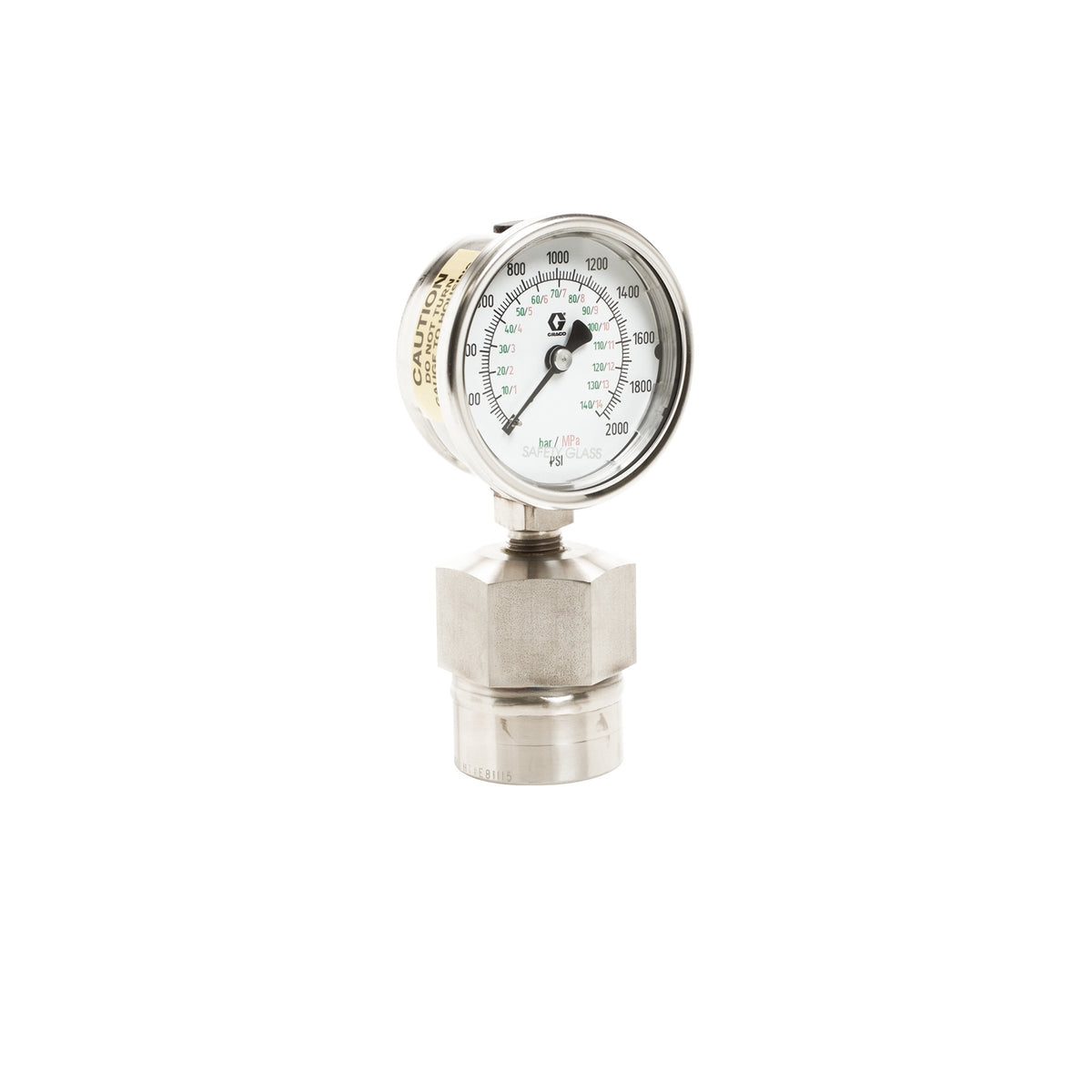

- Dampener protects gauge from severe pressure pulsation
- Corrosion Resistant
- 2.5 in (63mm) diameter dial
- 1/4 in NPT connections
UPC Product: 00633955581524
Family Code: FAMCNV
Unit of Measure: EA
Height:
2.3 IN
| 5.842 CM
Length:
5.5 IN
| 13.97 CM
Width:
4.4 IN
| 11.176 CM
Volume:
.032 FT3
| .001 M3
Chargeable Weight:
1.58 LBS
| .71 KG
Technical Specifications
| Dial Diameter (cm) | 6 |
|---|---|
| Dial Diameter (in) | 2.5 |
| Dial Diameter (mm) | 64 |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Type | Pressure Gauge |
| Maximum Working Pressure (MPa) | 14 |
