For use with CSP Valves.
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

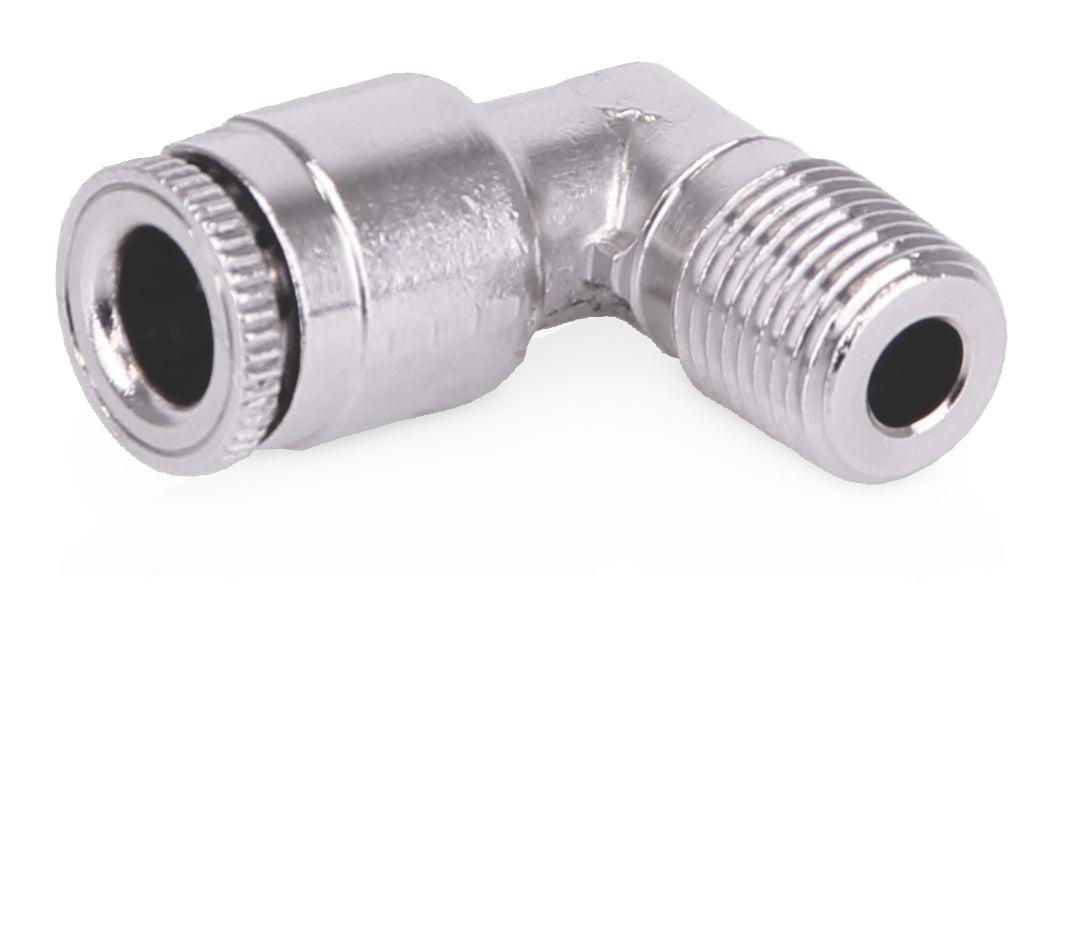

Push-to-Connect Fitting
1/4 inch OD tube x 1/8 inch NPT male 90°, 625 psi (4.31 MPa, 43.1 bar)
UPC Product: 00755652402343
Family Code: FAMCPT
Unit of Measure: EA
Height:
.6 IN
| 1.524 CM
Length:
3.1 IN
| 7.874 CM
Width:
2.1 IN
| 5.334 CM
Volume:
.002 FT3
| 0 M3
Chargeable Weight:
.05 LBS
| .02 KG
Technical Specifications
| Connection Type | Push-to-Connect, Threaded |
|---|---|
| Finish/Coating | Nickel |
| Material | Brass |
| Maximum Working Pressure (bar) | 43 |
| Maximum Working Pressure (kPa) | 4300 |
| Maximum Working Pressure (psi) | 625 |
| Size A (in) | 1/4 |
| Size A (mm) | 6.35 |
| Size B (in) | 1/8 |
| Size B (mm) | 3.175 |
| System of Measurement | Imperial |
| Thread Type | NPT |
| Type | Stud |
