DETAILS

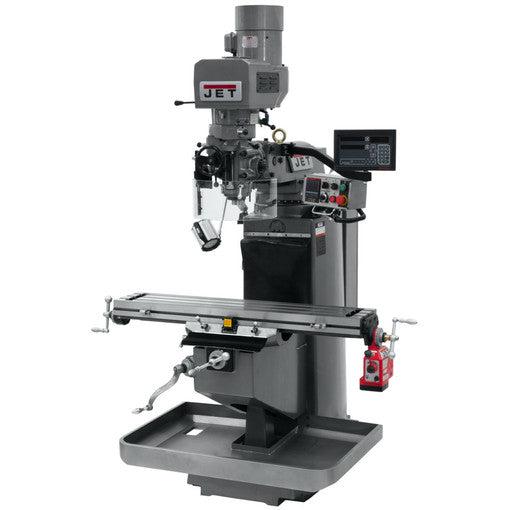

Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.
Specifications
| Brand | JET ELITE |
|---|---|
| Model # | 894103 |
| Table | 9" x 49" |
| Spindle Taper | R8 |
| Horsepower | 3 HP |
| Spindle Speed Range | 60 - 4500 RPM |
| Phase | 3 |
| Longitudinal Travel | 36" |
| Cross Travel | 12" |
| Knee Travel | 16" |
| Voltage | 230/460V |
| Collet Capacity | 1/8 - 7/8 |
| Dimensions | 68" x 63" x 84" |
| Head Tilt | 90° R & L, 45° F & B |
| Maximum Distance Spindle To Column | 21-2/5" |
| Maximum Distance Spindle To Table | 18-3/4" |
| Maximum Workpiece Weight | 550 lbs. |
| Motor Hp | 3 HP |
| No. of Spindle Speeds | Variable |
| No. of T Slots | 3 |
| Prop. 65 | Yes |
| Quill Diameter | 3-3/8" |
| Quill Feed | .0015 - .003 - .006 |
| Ram Travel | 14 |
| Spindle Motor | 3 HP, 230/460V, 3 PH |
| Spindle Speed | 60-4500 RPM |
| Spindle To Column | 6-1/2"(min) - 21-2/5"(max) |
| Spindle Travel | 5" |
| Stock Number | 894103 |
| Swiveling Angle & Head | 90° R & L, 45° F & B |
| T Slot | 3 and 5/8 |
| T Slot Center Distance | 2-1/2" |
| T Slot Size | 5/8" |
| Travel of Z Axis | 16" |
| Warranty | 3 Year |
| Weight | 2470 lbs. |
| Work Table Capacity | 550 lbs. |
