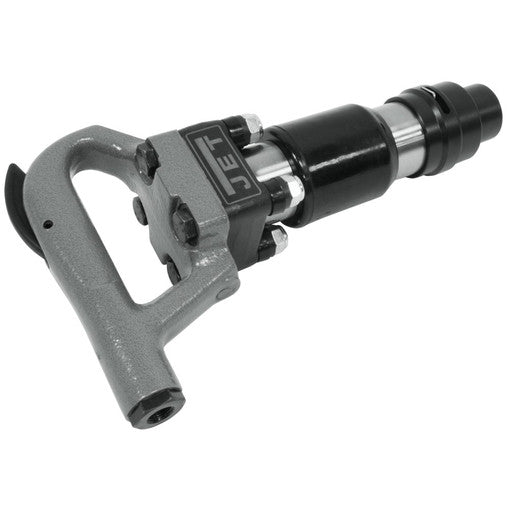

JPW JCT-3623, 4" 4-Bolt Chipping Hammer Hex Shank

JPW JCT-3623, 4" 4-Bolt Chipping Hammer Hex Shank

Regular price
$1,055.26
Sale price
$1,055.26
Quantity must be 1 or more


Details

    Jet 550623 Description

    JET® Chipping hammers are available in two heavy-duty designs with multiple capabilities. The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammers a staple on any construction site

    Jet 550623 Features

    • Heat treated cylinder and piston for added durability
    • Heavy-Duty, industry proven valve design
    • Ergonomic "D" style forged handle with outside trigger
    • Easy service ability with the 4-Bolt backhead
    • Comes with standard type retainer
    • Performance @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 1/2"

    Jet 550623 Specifications

    Shank Bushing Style Hex
    Shank Bushing Size (In.) 0.580
    Piston Stroke (In.) 4-1/64
    Bore Size (In.) 1-3/16
    Energy Per Blow @ 90 PSI (Ft.) (Lb.) 22
    Rivet Capacity (In.) 1-1/4
    Air Consumption (CFM) 34
    Vibration Value (m/s²) 26.0
    Noise Level (dB) (A) 98.0
    Overall Length (In.) 16-1/2
    Blows Per Minute (BPM) 1,500
    Air Pressure (PSI) 90
    Air Inlet (NPT/In.) 3/8
    Min. Air Hose (ID/In.) 1/2
