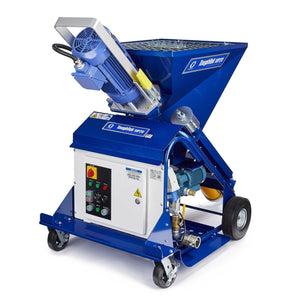

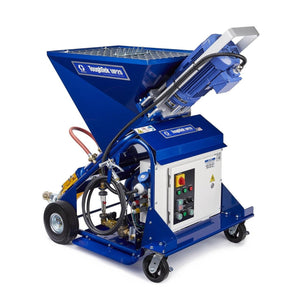

ToughTek MP40 Mixing Pump

Use the ToughTek MP40 to mix, pump and apply pre-blended, self-leveling powder materials with a single, easy-to-use machine. Integrated design increases productivity while saving on labor costs. Innovative water-metering system regulates the flow rate for the most consistent material mix.
Complete with integrated mixer and powerful rotor stator pumping system, the ToughTek MP40 eliminates the need for multiple pieces of equipment and associated labor. Featuring Graco's 2-part rotor stator pump, this innovative pump is easy to maintain and provides a steady, consistent flow.

• Compact, easy to maneuver
• Easy to operate with variable speed control
• 425 psi (29 bar) pumping pressure
• Vertical pumping distance: 60 feet (18 m)
• Horizontal pumping distance: 200 feet (61 m)
• Rugged hopper with bag breaker – holds six 50-lb (23 kg) bags
• Power MP40: 230V, 30A, 3-ph
• Output MP40: up to 50 lpm (100 cu ft/hr)

Compatible Material	Self-Leveling Underlayment
Fluid Inlet Size (in)	3.8
Fluid Outlet Size (in)	1.5
Fluid Outlet Thread Gender	Male
Fluid Outlet Thread Type	NPT
Material Output (bags/hr)	200
Maximum Flow Rate (GPM)	13
Maximum Working Pressure (MPa)	2.1
Maximum Working Pressure (psi)	300
Model	ToughTek
Motor Type	Electric
Overall Height (ft)	4.42
Overall Height (in)	53
Overall Length (ft)	5.33
Overall Length (in)	64
Overall Width (ft)	2.69
Overall Width (in)	32.25
Power Rating (HP)	7.5
Power Rating (W)	5593
Power Rating (kW)	5.59
Series	MP40
Type	Electric Progressive Cavity Drum Pump
Weight (lb)	450
Wetted Parts	Tool Steel, Painted Steel, Plated Steel, PORON
