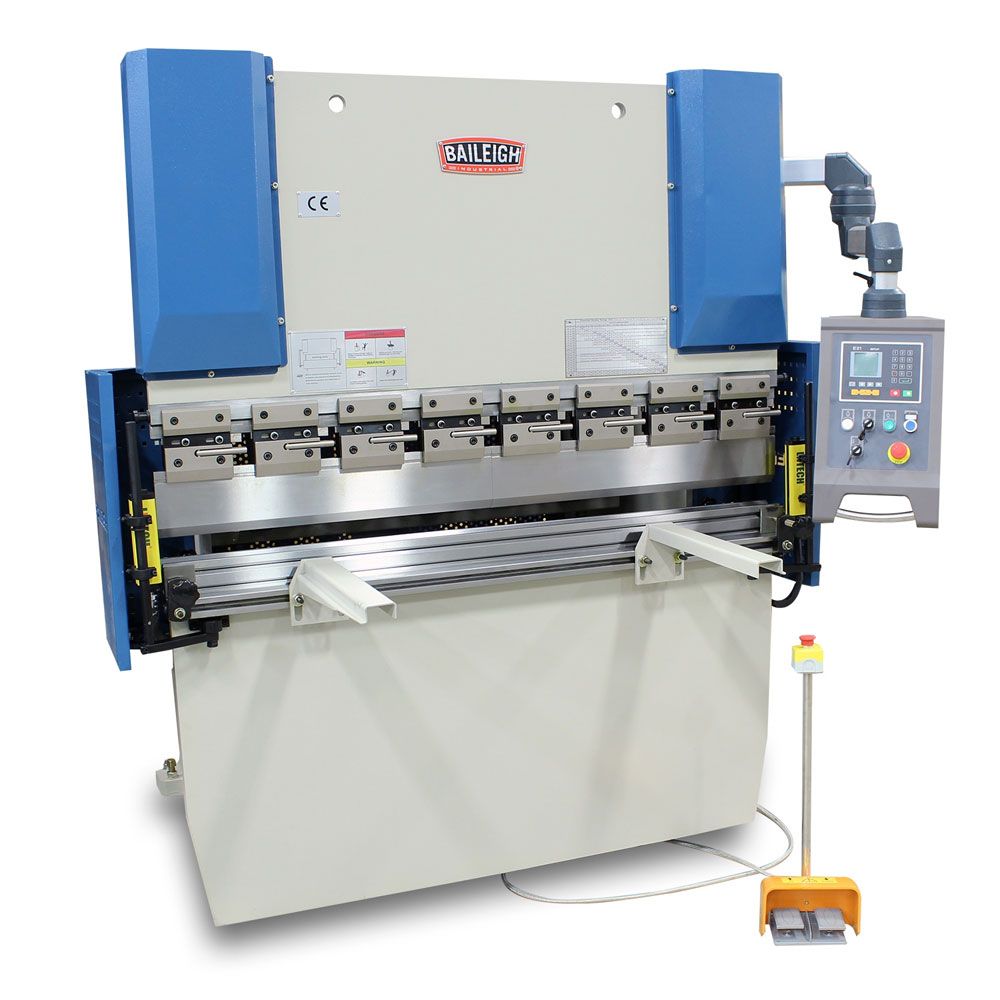

This CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price.
Baileigh BP-3305CNC Hydraulic Press Brake Features:
- BP-3305CNC delivers 33 tons of pressure across its 63” table.
- Runs on 220-volt 3-phase power.
- Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
- Internal memory can hold 40 programs, each with its own unique number for easy identification.
- Controller will keep a piece count for large production runs.
- Made with NOK, Siemens, and Omron components.
- Foot pedal lets you control all bending functions, whether on full auto or jog mode.
- Fully welded steel plate frame minimizes deflection and maintains rigidity.
- Gooseneck punch and a 4 sided multi-V bottom die come standard.
- Integrated safety light curtains help prevent accidents.
- Covered by a 1-year parts warranty.
Baileigh BP-3305CNC Specifications:
- Item Number: BP-3305CNC
- Table Size: 63" x 7"
- Programming: 40 Programs/ 25 Steps per Program
- Back Gauge Length: 21.5"
- Return Speed: 3.3" / sec.
- Pressure: 33 Tons
- Included Tooling: 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2")
- Throat Depth: 8"
- Stroke Distance: 3.15"
- Approach Speed: 3.5" / sec
- Back Gauge Motor: 1/2 hp
- Bending Speed: .394" / sec.
- Main Motor: 4 hp
- Distance Between Housings: 51.25"
- Distance From Table To Ram: 13.325"
- Power: 220V / 3-phase
- Shipping Weight: 5050lbs
- Shipping Dimensions (Inches): 91x56x87
