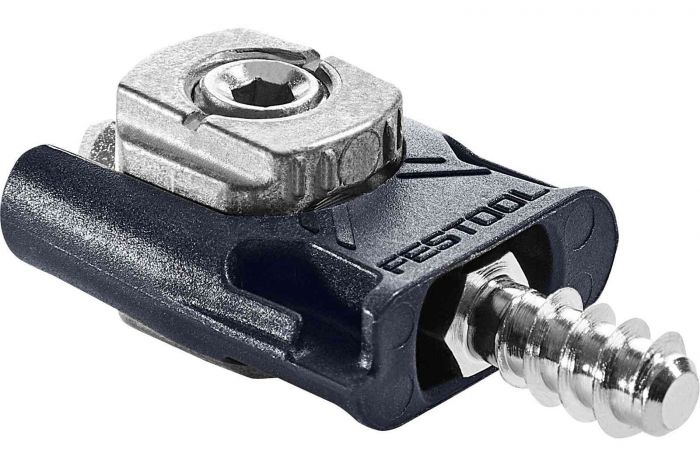

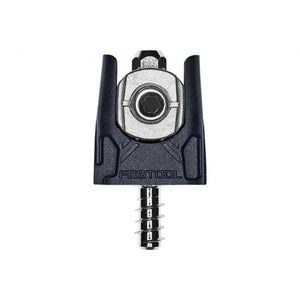

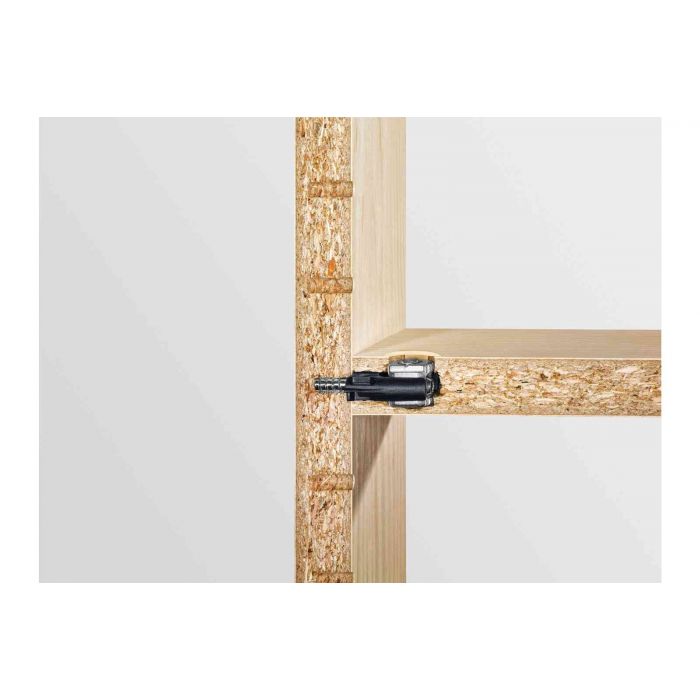

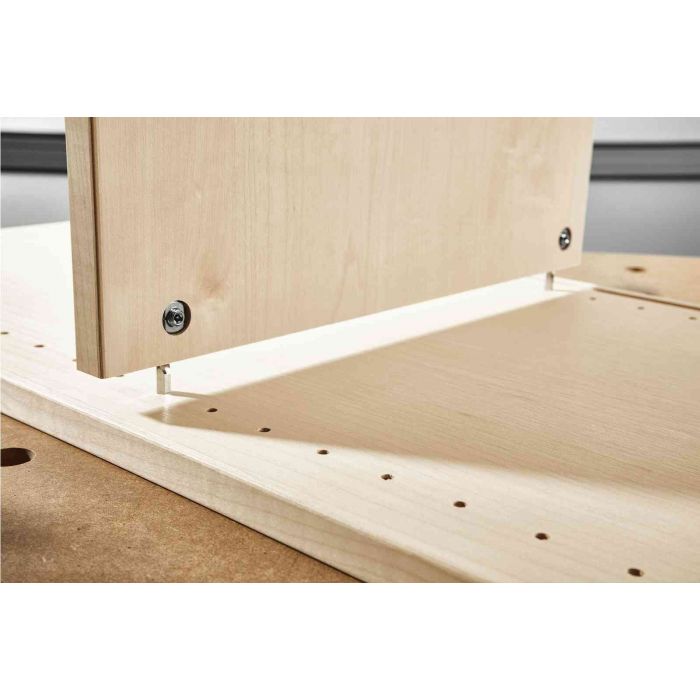

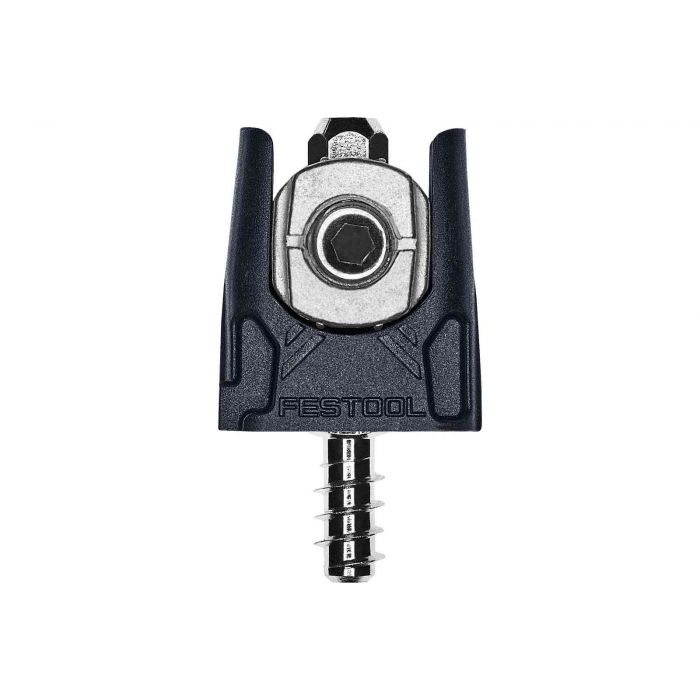

The DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500; for 50 corner joints with the DF 500 and drilling series of holes
Features:
The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
for 50 corner joints with the DF 500 and drilling series of holes
the DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500
Specifications:
Joint fixture (8 mm DOMINO dowel cross-cuts) D8
Panel thickness 18 – 28 mm
DOMINO routing depth for base part 28 mm

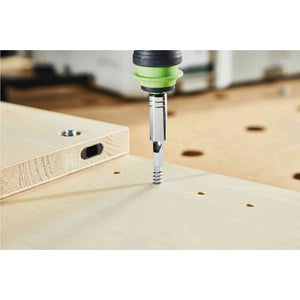

Drilling diameter for Euro bolt 5 mm
Drilling diameter in base part 15 mm
Includes:
Split anchor
50x Bolt with Euro thread for drilling series of holes
50x Plastic trays
50x Cross anchor with threaded pin
without cover caps
in carton
Specifications
Festool Corner Connection KV-LR32 D8/50 for DF 500, 50-Pack 203168
