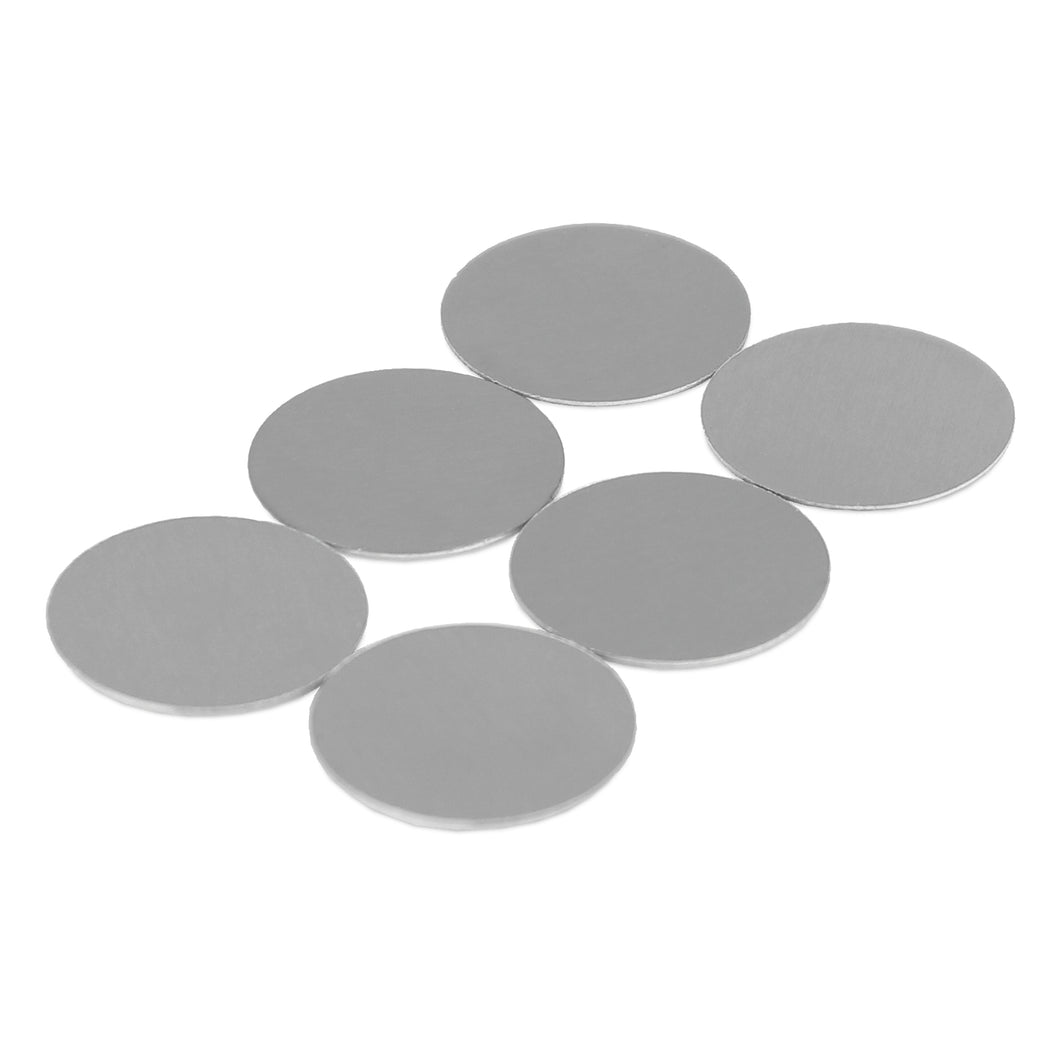

Blowout Disc Kit - (6) Aluminum, 2350 psi, 11/16 in.

Blowout Disc Kit - (6) Aluminum, 2350 psi, 11/16 in.

Regular price
$27.10
Sale price
$27.10
Quantity must be 1 or more


  • Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.

  • Requires replacement of the rupture disc to restart the lube system.

  • Easy information on blocked lines, high system pressure or blocked bearings.

  • Replacement Rupture Packs of 6 (11/16 inch / 17.5 mm diameter discs)

  • 2,350 psi - aluminum

  • Lubriquip part number 560-900-300
UPC Product: 00633955335059
Family Code: FAMCPT
Unit of Measure: EA
Height: .3 IN   |  .762 CM
Length: 4.2 IN   |  10.668 CM
Width: 2.45 IN   |  6.223 CM
Volume: .002 FT3   |  0 M3
Chargeable Weight: .05 LBS  | .02 KG

Technical Specifications

Type Rupture Disk
Color Aluminum
Maximum Working Pressure (psi) 2350
Maximum Working Pressure (kPa) 16192
Maximum Working Pressure (bar) 162
Number of Pieces 6
Overall Diameter (cm) 1.7
Overall Diameter (in) 0.688
Overall Diameter (mm) 17
Maximum Working Pressure (MPa) 16.2
