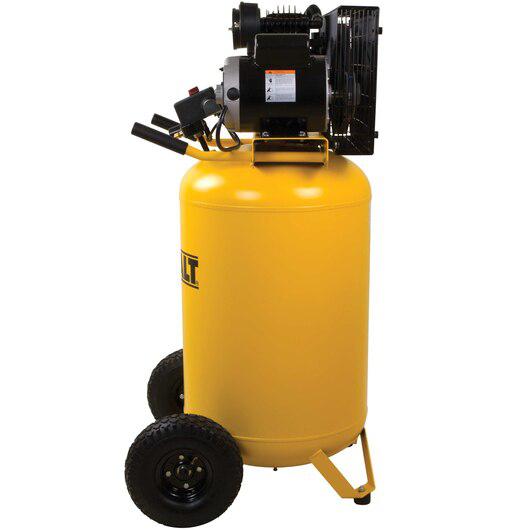

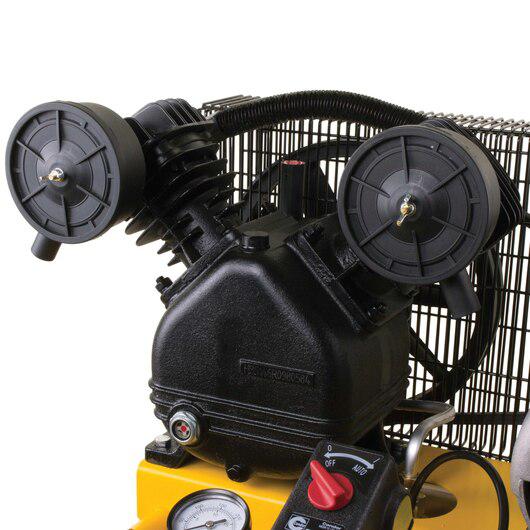

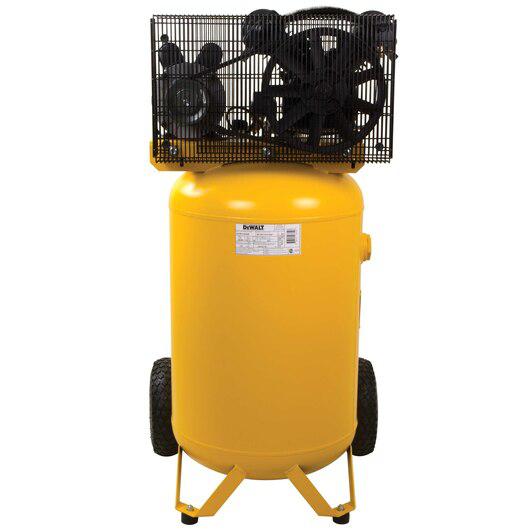

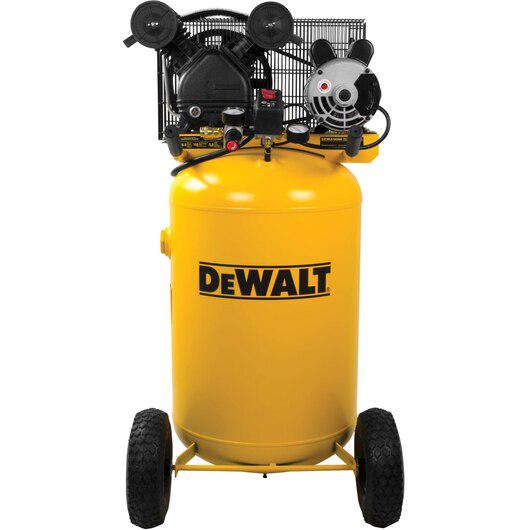

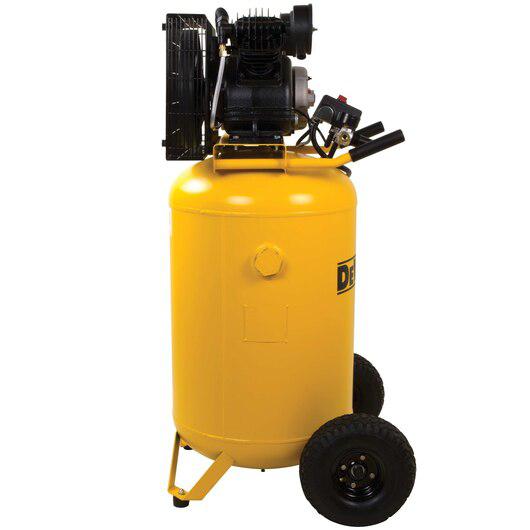

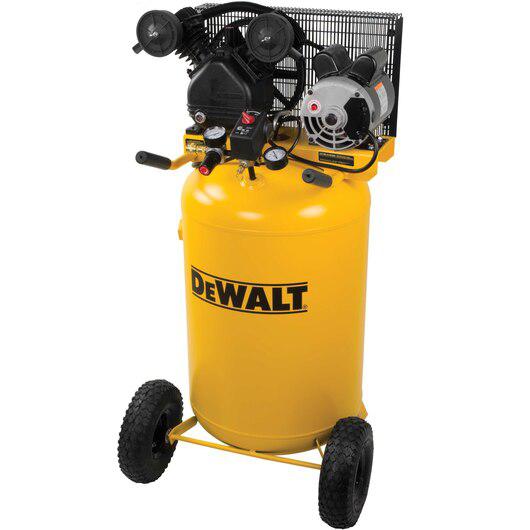

The DeWALT DXCM301 30 gal. Air Compressor is proudly made in the USA with global materials and features a 1.6 HP 120 volt heavy-duty induction motor with an oil lubricated, belt driven, cast iron, V-twin pump that delivers 155 Max PSI, 6.2 SCFM at 40 PSI and 5.3 SCFM at 90 PSI all while operating at a quiet 75 decibels bringing less noise to your environment. The 10-in. wheels make the air compressor portable, while the vertical configuration takes up less floor space making it easy to store in the corner of a garage or workshop. This DeWALT air compressor will operate a wide variety of pneumatic tools for automotive and agricultural applications as well as your DIY projects around the home (All pneumatic tools operate at various SCFM. Consult the operator's manual for your tool for the required SCFM for the tool to operate.). The air compressor is shipped with synthetic oil for optimum performance and long life.

• Built with a high flow regulator-which supplies more torque for the projects like removing old rusted bolts-get more air to the tool
• Dual voltage motor is wired for standard 120 volt outlet, and may also be converted for 240 volt applications

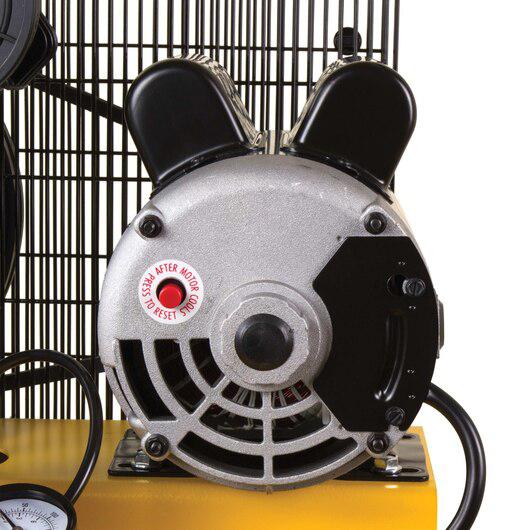

• Heavy duty 1.6HP induction motor in the air compressor for long life
• 155 PSI max pressure for optimum tool performance

2 Year Limited Pump, 1 Year All Other Components

Brand	DeWALT
Product Weight	152 lb.
Product Length	26 in.
Warranty	DeWALT Industrial Tools are warranted from date of purchase. 2 Year - Limited warranty on oil-lubricated air compressor pumps. 1 Year - Limited warranty on all other air compressor components. This warranty is not transferable to subsequent owners
Air Delivery SCFM At 40 PSI	6.2
Air Delivery SCFM At 90 PSI	5.3
Airflow Volume	6.2 at 40 PSI and 5.3 at 90
Air Outlet Size	0.375 in.
Application/Use	Air Brushing, Blow Cleaning, Bolting/Wrenching, Brad Nailing/Stapling, Cutting, Drilling, Finish Nailing, Framing Nailing
Cartridge Size	0 in.
Color	Yellow
Compressor Type	Vertical
Cord Length	6 ft.
Country of Origin	Made in USA
Decibel Rating	75 dBA
Drain System	Multi-turn manual drain valve
Drive Type	Induction motor with belt drive pump
Engine Brand	N/A
Fuel Tank Capacity	0 oz.
Handles Included	2
Hose Included	No
Lubrication Type	Oil
Maximum Operating Pressure	155 PSI
Maximum RPM	1,200 rpm
Motor Phase	Single
Number of Power Speeds	1
Number of Wheels	2
Oil Free Compressor	No
Portable or Stationary	Portable
Power Type	Electric
Product Height	49 in.
Product Width	25 in.
Pump Life	1,000 hr.
Pump Material	Cast Iron
Pump Oil Capacity	11.35 oz.
Regulator Included	Yes
Running Horsepower	1.6 hp
Stage Type	Single-Stage
Start Type	On/Off Switch
Tank Capacity	30 gal.
Tank Fill Time	7.5 min.
Tank Orientation	Vertical
Tank Pressure Gauge	Yes
Voltage	120 V
Manufacturer Part Number	DXCM301
