Fully Packaged 10-HP Rotary Screw Air System

Key Differences in Emax Rotary Screw Air Compressors

  • Expert experience in the air industry
  • Innovative product design
  • Highest quality components
  • Professional workmanship
  • Our commitment to excellence
  • Our GUARANTEE to stand behind our product !

Rotary Screw Air System snapshot:

  • 45 @ 100 PSI: Max 145 PSI
  • Three Phase Power: 208/230/460V Three phase, variable speed
  • Drive-Tek™ Design: Reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor: Provides reduced energy demand and amp draw on start up
  • Spin-Tek™ Design: Unique easy access oil filters & air/oil separators, requires no tools to remove/install saving time and money
  • Precision Engineered Rotary Air End: Highly efficient design provides maximum discharge
  • Heavy Duty Sound Attenuated Cabinet: Provides lower decibel operation than a typical rotary screw
  • Designed for Use with Stationary Air Receiver

The Heart of EMAX Rotary Screw:

The Airend is the most important part of your compressor, it is the heart of the machine that actually compresses the air. That is why here at, Emax Compressor we use only the best German and Finland name brand airends. Most airends are only good for up to 40,000 hours and then they need a complete overhaul, with our airends they are good for 70,000 running hours as long as the unit is maintenance routinely and the correct oil is used. EMAX Compressor Gives you a 10-year warranty on all their airends!

All Emax Air Rotary Screw air compressors are equipped with these state of the art screw airend compressors manufactured in Germany and Finland. These airends have precision-aligned back to back tapped roller bearings with close tolerances guarantee long life cycles and outstanding reliability. Each air end is tested to meet consistent high quality standards.

Premium Industrial Motors

We use only premium industrial name brand motors to run our compressors. Emax uses only low 1750 RPM motors. We have chosen motors that come with the best certificates and quality assurances so we know that you are getting the best as well! We use High Efficiency motors constructed with superior materials, higher service factors, longer bearing lives, lower waste- heat output and less vibration. We also pass the motor warranty on to you for a full 5 year on single phase and a full 10 year on 3 phase!!

Receiving Tank

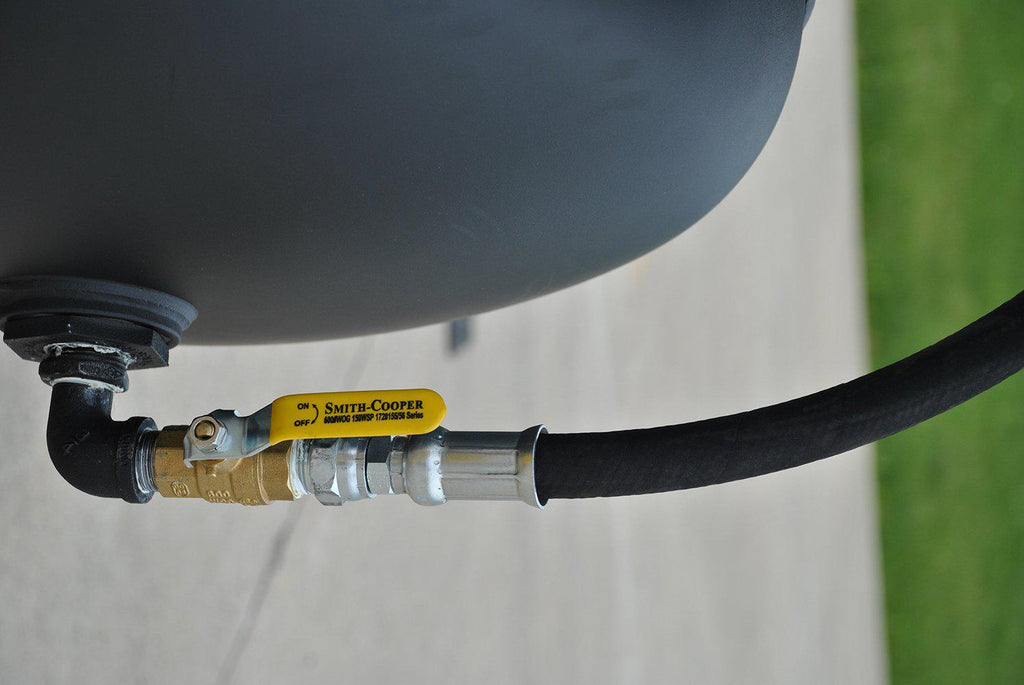

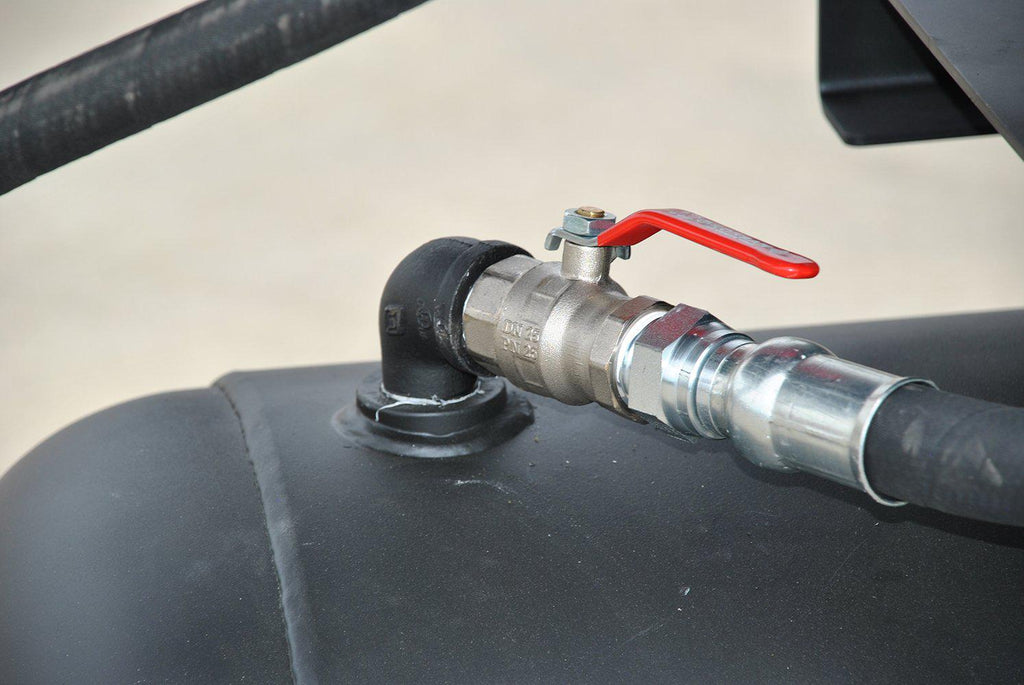

These units comes mounted on a 120 gallon Horizontal painted receiving tank equipped with auto drain, hydraulic hoses and fittings.

These tanks are made in the USA and have ring based design to prevent cracking, Standard NPT ports, ASME, NBBI, & CRN approvals, they are rated up to 450 degrees F, and they are coated with anti-corrosive/ rust prevention blended steel to increase the tanks life.

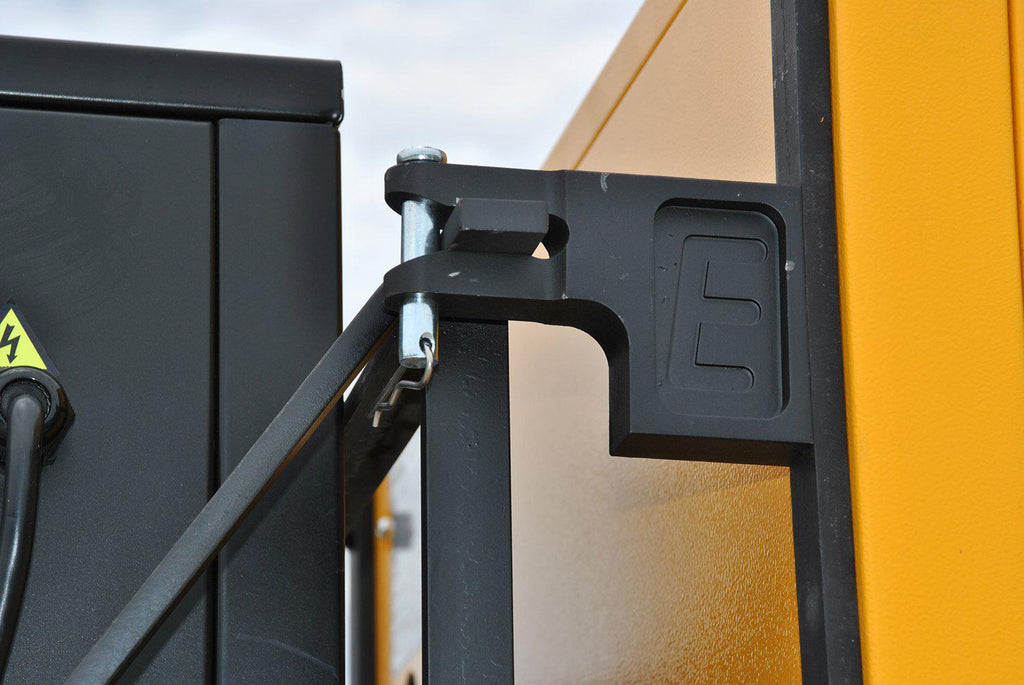

Patented Swingarm Feature:

This feature makes for easy maintenance on your rotary screw. You simply take out the pin and swing your dryer to the side, having easy access to the door panel on your rotary screw. This feature also makes your entire system compact and takes up less floor space. This system is everything you need to run clean air in your shop!

Save that energy!!

Since the motors consume a majority of the energy produced then the controls you put on the motor become an increase importance. When a motor starts at full load voltage it causes a voltage sag on the power system, it can cause shock damage creating long term damage to your motor. You can save 25-70% on energy by using motor controls or variable frequency drives. Our entire rotary screw line has the ability to have variable frequency drives installed in them. We use Schneider Altivar71 Brand drives that carry a 5 year warranty. Schneider Electric has been around since 1981.

Control: When a motor is started it takes as much as 8 times the full load motor current to start. An adjustable speed drive can take on 50-70% of that motor full load current by starting the motor at zero frequency and voltage, it works by magnetizing the motor winding’s and builds the frequency and voltage slowly, in short the variable speed drive starts as a zero speed and accelerates smoothly up to your settings.Programmable controls allow for adjustable operating speeds as well. These Schneider Altivar71 variable speed drives can be programmed to run at specific speeds, to stop at a specific position, they are even capable of applying a specific amount of torque. The ability to control these minimizes mechanical and electrical stress on the entire unit. Lower Power Demand: Many power companies will offer rebates when running your system with a variable speed drive. in most cases the system will pay for its self over time, even in as in short of time as one year. Because some power companies are limited then they put demand factors on industrial customers, so they charge you for surges in your power that may be robbing other customers during peak hours. The variable speed drive eliminates those surges. We have provided you with an example of ht average energy savings from APE Energy. use the link to see the potential savings. When 60 cycles of electricity are inducted into the electric motor, the motor RPM is a low 1750, however the Variable speed inverted drive will change the 60HZ to 60 Cycles of electricity from 60 cycles down to 18 cycles, depending on the pressure, The whole ides of energy savings with this unit is to lower the cycles, the lower the amp draw coming from your electric motor.The electricity amp draw that an electric motor is using determines what your electric bill is, so the lower the amp draw the lower your bill will be!

Programmable Logic Controller

These rotary’s are controlled by a user friendly Logika PLC (Programmable Logic Controller). This controller makes this unit bullet proof. These controllers have may many features that are extremely user friendly and easy to use.

The BEST Warranty Around!

Emax Compressor backs all their compressors with the best warranty in the industry. Emax Compressor gives their Rotary screws a full 10 year warranty! The warranty is NOT pro-rated. We cover labor for the first 12 months for major repairs. With our warranty we don’t ask you to buy a service plan or extended warranty, we just ask that you purchase and use our oil and filters. This ensures the correct oil with the specs needed to run our pumps is used. Our trained service and support team is ready if you ever need them and we carry a full line of new replacement parts.
