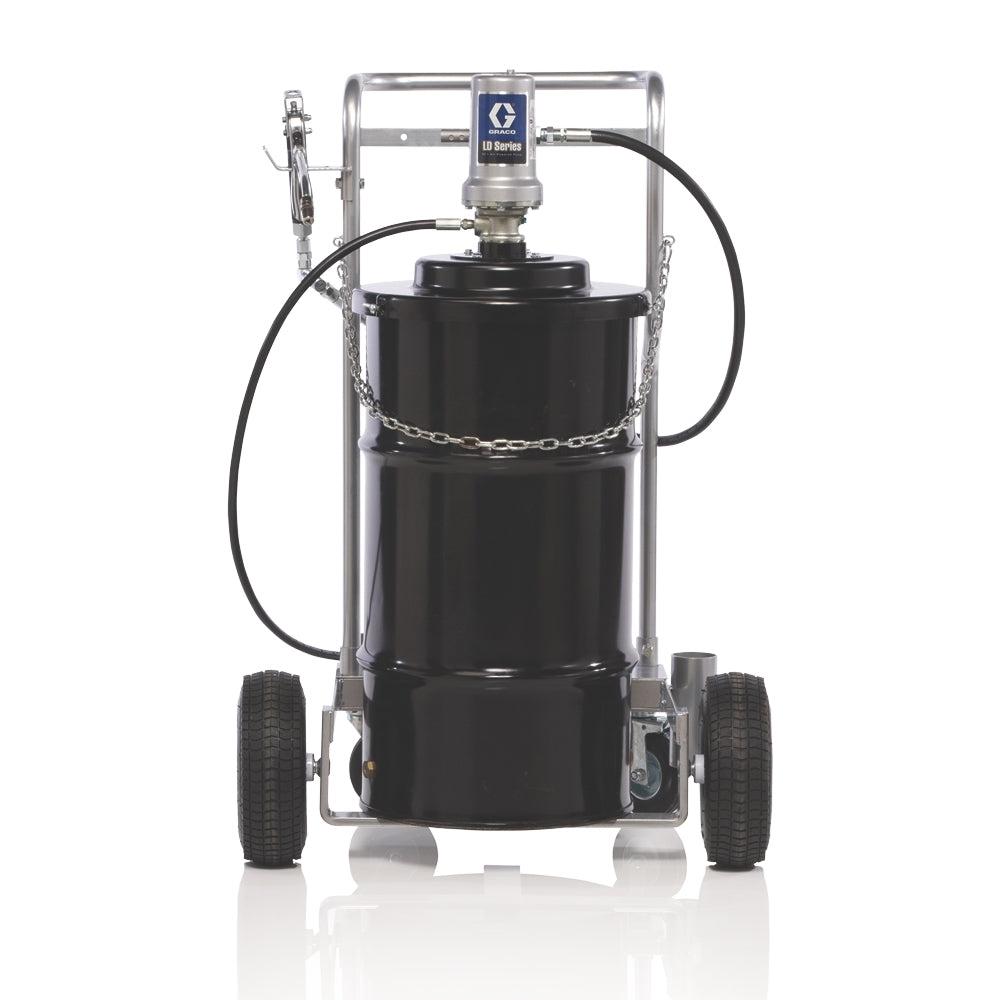

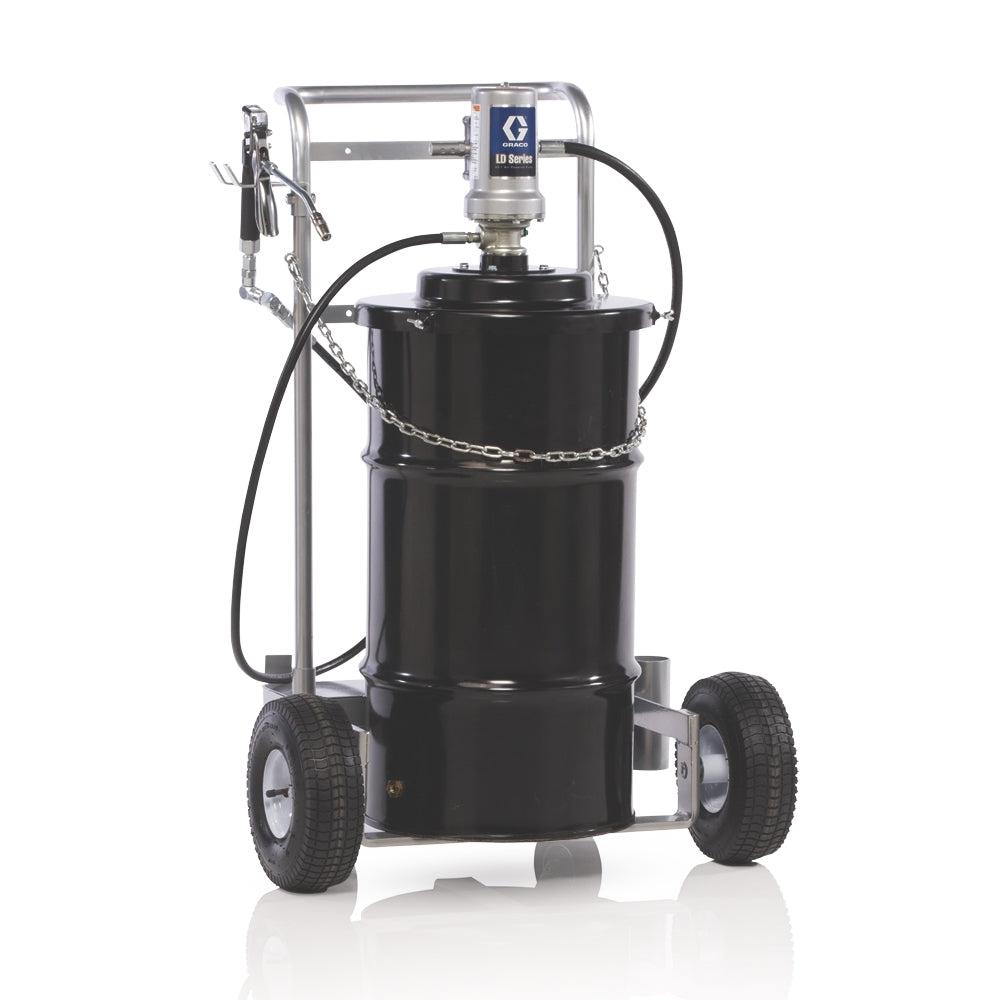

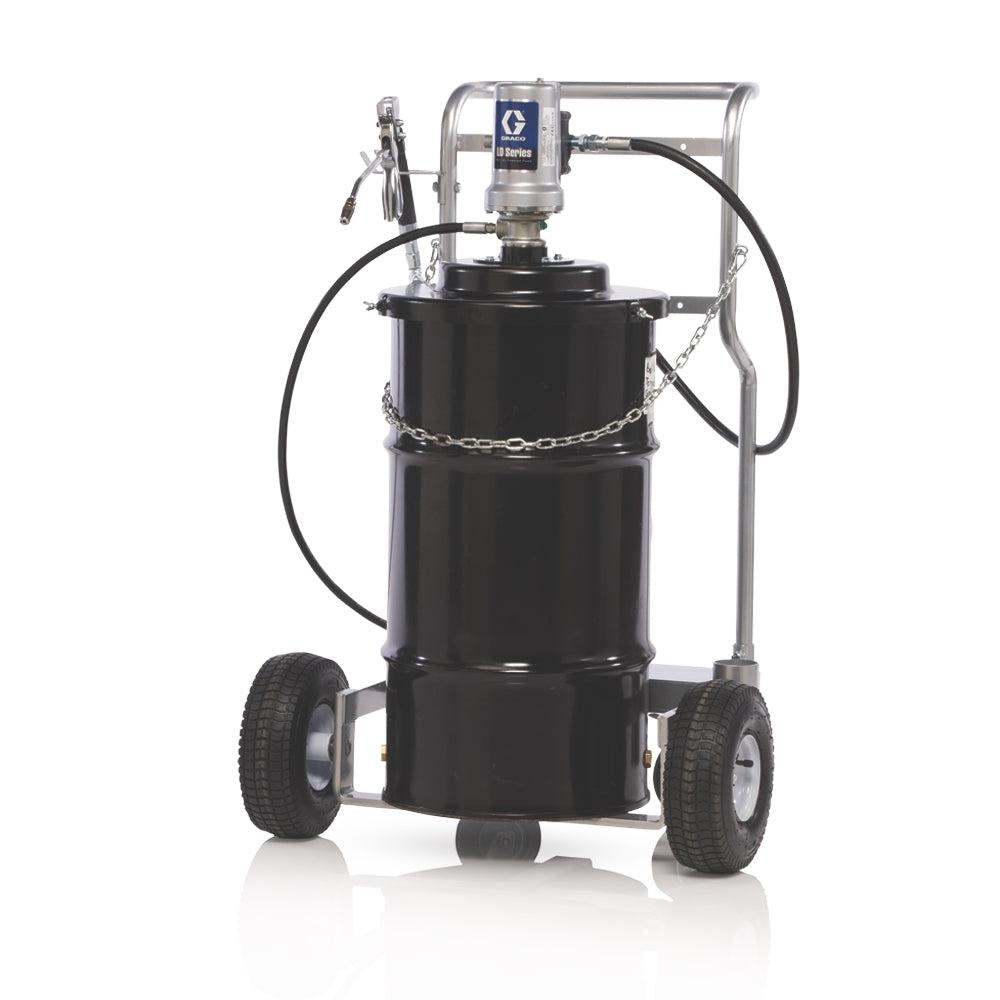

Graco LD Series 50:1 120 lb (54 kg) Grease Cart Mounted Pump Package - BSPP
Graco LD Series 50:1 120 lb (54 kg) Grease Cart Mounted Pump Package - BSPP
Graco LD Series 50:1 120 lb (54 kg) Grease Cart Mounted Pump Package - BSPP

Graco LD Series 50:1 120 lb (54 kg) Grease Cart Mounted Pump Package - BSPP

Regular price
$1,966.50
Sale price
$1,966.50
Quantity must be 1 or more


Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

  • Three Inch Air Motor -Provides more power to create better flow.

  • Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

  • Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

  • Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

UPC Product: 00633955618756
Family Code: FAMPPL
Unit of Measure: EA
Height: 0 CM   |  0 IN
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Application Grease
Compatible Material Grease
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Maximum Working Pressure (bar) 345
Maximum Working Pressure (kPa) 34500
Maximum Working Pressure (psi) 5000
Pump Ratio 50:1
Air Inlet Size (in) 0.25
Wetted Material Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
Type Piston Pump Package
Power Type Pneumatic
Maximum Working Pressure (MPa) 35
Model LD

;
