Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW
Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW

Graco Meter-Flo® Electric Pump, 245 cu in/min (4015 cc/min) @ 1,725 rpm, NPT Ports, CW

Regular price
$1,501.30
Sale price
$1,501.30
Quantity must be 1 or more

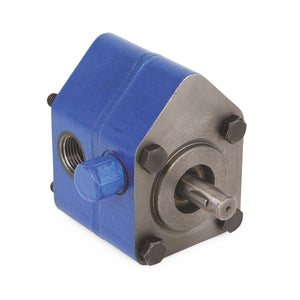

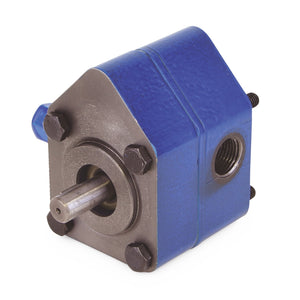

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).

Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils.

  • Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
  • Positive displacement helps assure constant delivery of proper volume.
  • Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
  • Standard SAE 4-bolt mounting simplifies installation.
  • Adjustable pressure relief valve protects pump against overload conditions.
  • Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
  • Lubriquip part number 540-800-940
UPC Product: 00633955344426
Family Code: FAMLPM
Unit of Measure: EA
Height: 12.192 CM   |  4.8 IN
Length: 6 IN   |  15.24 CM
Width: 6 IN   |  15.24 CM
Volume: .1 FT3   |  .003 M3
Chargeable Weight: 6.3 LBS  | 2.86 KG

Technical Specifications

Type Electric Piston Pump
Application In-Plant Machinery
Compatible Material Oil
Fluid Outlet Size (in) 0.5
Fluid Outlet Size (mm) 12.7000
Fluid Outlet Thread Type NPT
Maximum Fluid Output Pressure (psi) 1500
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (psi) 1500
Minimum Operating Temperature (°C) 10
Minimum Operating Temperature (°F) 50
Model Meter-Flo
Power Type Electric
Compatible Metering Device Series Progressive
Maximum Flow Rate (ci/min) 245
Maximum SUS Grade (SUS) 3000
Minimum SUS Grade (SUS) 300
Maximum Working Pressure (MPa) 10.3
maximum_fluid_output_pressure_bar 103

;
