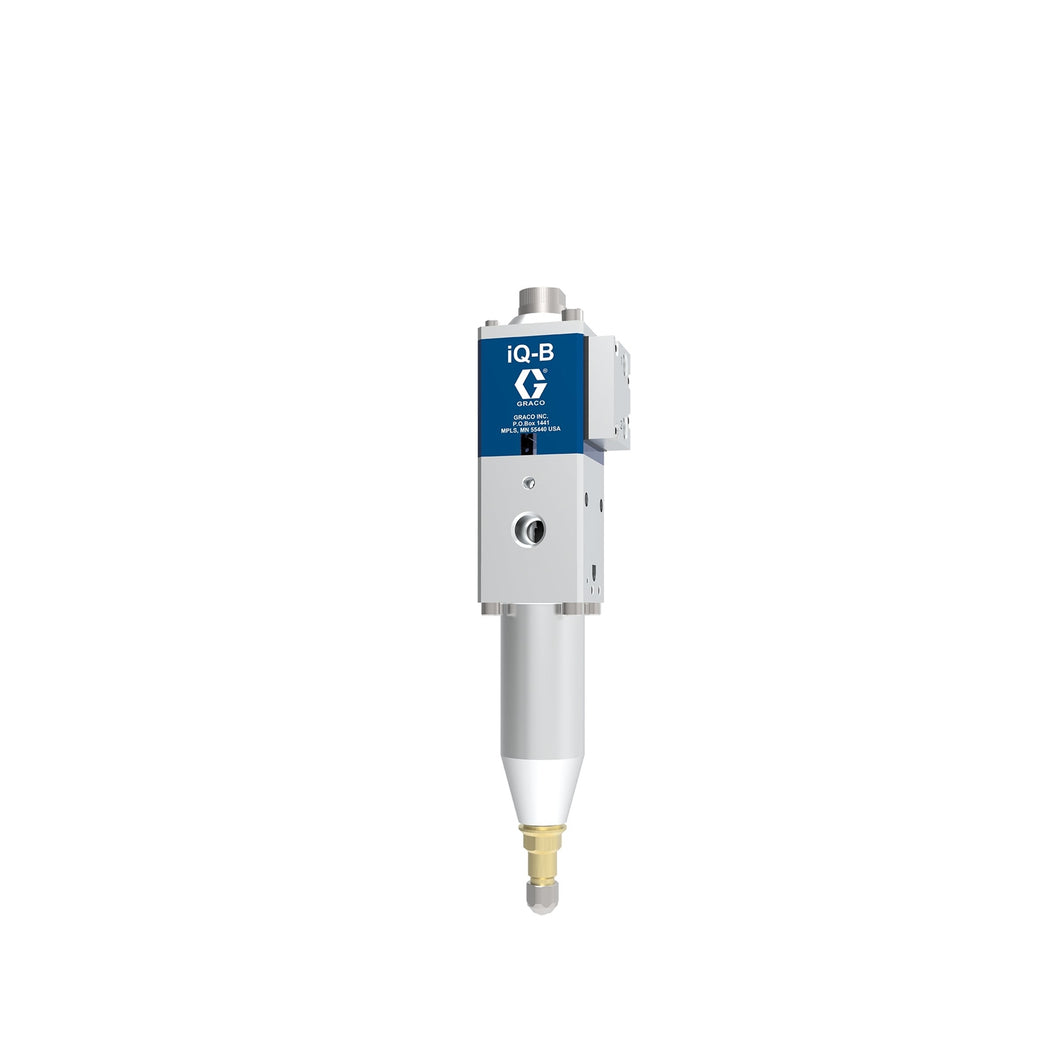

iQ Dispense Valve, Ball/Seat, Ambient, 0.039in (1.0mm) Tip, 2.36in (60mm) Nozzle, Remote Mount Solenoid

iQ Dispense Valve, Ball/Seat, Ambient, 0.039in (1.0mm) Tip, 2.36in (60mm) Nozzle, Remote Mount Solenoid

Regular price
$3,046.75
Sale price
$3,046.75
Quantity must be 1 or more


The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

  • Maximize dispense time while minimizing maintenance costs and effort
  • Perfect for standard on/off applications
  • Ideal for low to high viscosity materials
  • Wear-resistant seals and hardened components for long life
  • Easy repeatable mounting for robotic and automated applications.
  • 60mm nozzle is compatible with 60mm focal length vision systems
UPC Product: 00769946031065
Family Code: FAMIQV
Unit of Measure: EA
Height: 6 IN   |  15.24 CM
Length: 18 IN   |  45.72 CM
Width: 8 IN   |  20.32 CM
Volume: .5 FT3   |  .014 M3
Chargeable Weight: 5.205 LBS  | 2.36 KG

Technical Specifications

Maximum Air Pressure (bar) 8.3
Maximum Air Pressure (psi) 120
Type Dispense Valve
Weight (lb) 1.4
Wetted Material Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, Silicone Nitride, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Ambient/Warm Melt/Hot Melt 常温型, アンビエント式, Ambient, Ambiente, 상온식
Applicator Type Ball/Seat
Component Type Single Component
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Gun Activation Automatic
Maximum Air Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 276
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Mount Location Remote Mount Solenoid
Nozzle Size (in) 0.039
Nozzle Size (mm) 1
Outlet Block Length (in) 2.4
Outlet Block Length (mm) 60
Solenoid Valve Voltage Rating (V dc) 24
Weight (kg) 0.6

;
