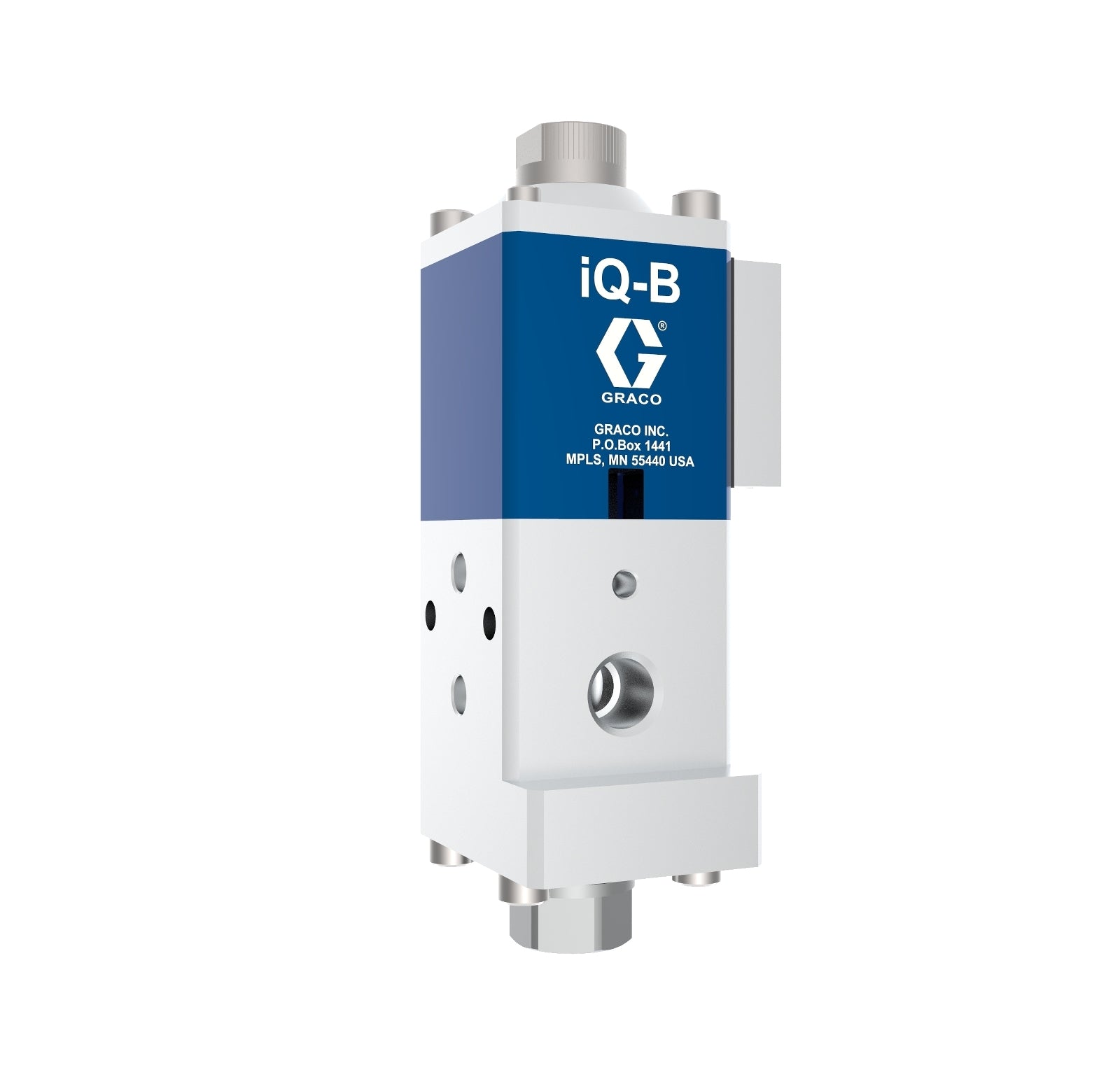

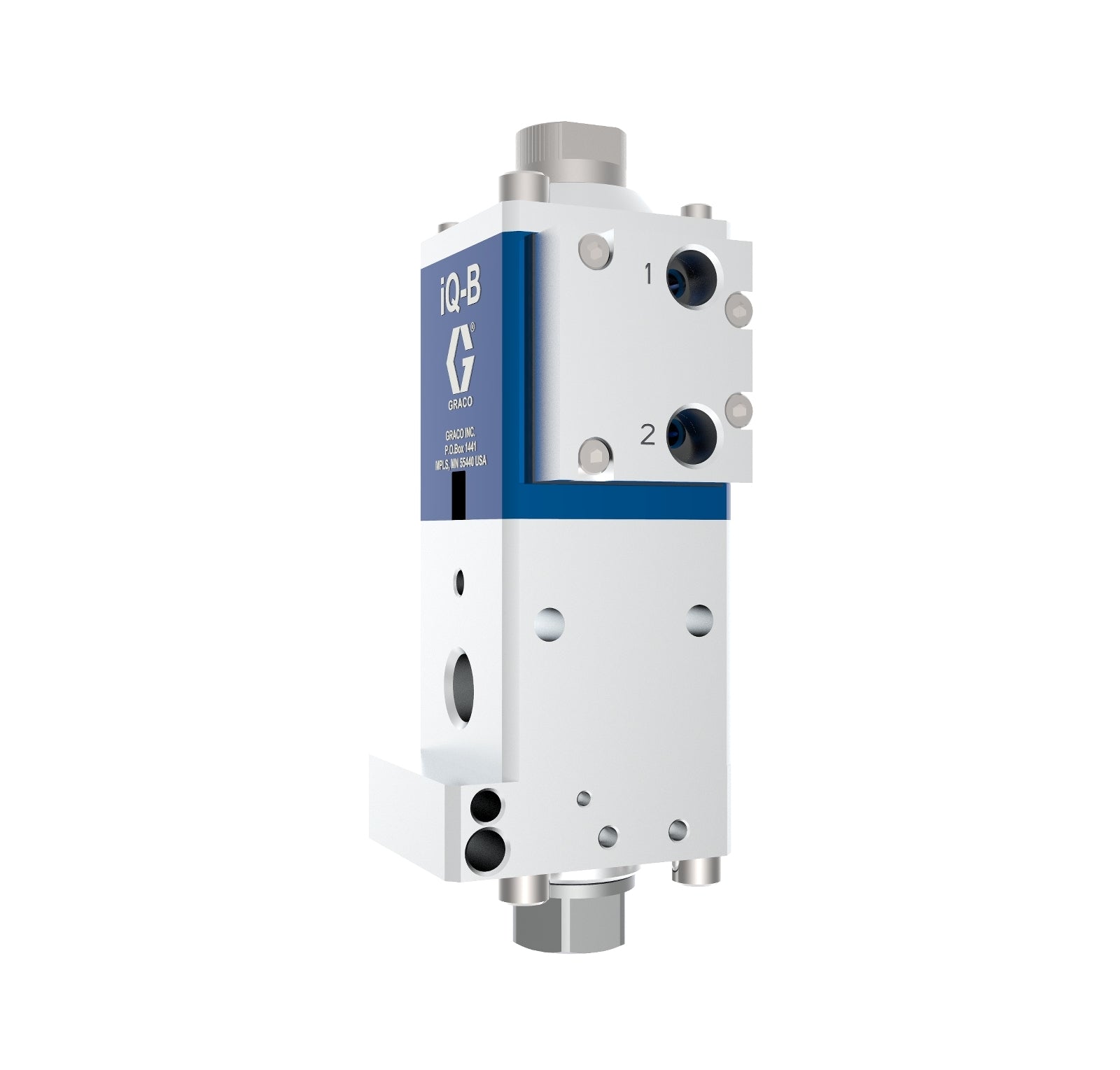

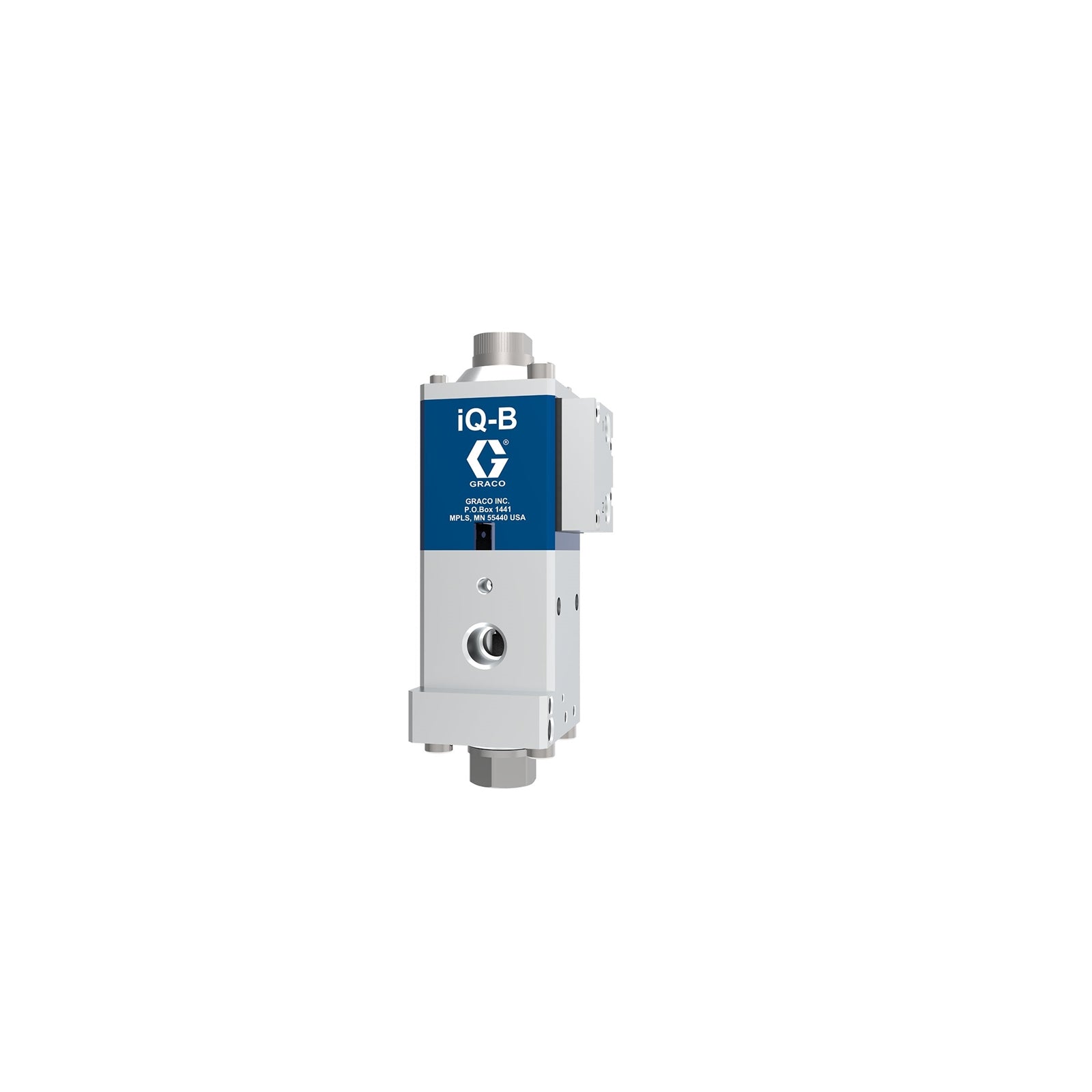

iQ Dispense Valve, Ball Seat, Ambient, NPT Tip, 000 mm Nozzle, Remote Mount Solenoid
iQ Dispense Valve, Ball Seat, Ambient, NPT Tip, 000 mm Nozzle, Remote Mount Solenoid
iQ Dispense Valve, Ball Seat, Ambient, NPT Tip, 000 mm Nozzle, Remote Mount Solenoid

iQ Dispense Valve, Ball Seat, Ambient, NPT Tip, 000 mm Nozzle, Remote Mount Solenoid

Regular price
$2,714.29
Sale price
$2,714.29
Quantity must be 1 or more


The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

  • Maximise dispense time while minimising maintenance costs and effort
  • Perfect for standard on/off applications
  • Ideal for low to high viscosity materials
  • Wear-resistant seals and hardened components for long life
  • Easy repeatable mounting for robotic and automated applications.
UPC Product: 00769946009033
Family Code: FAMQFP
Unit of Measure: EA
Height: 4 IN   |  10.16 CM
Length: 18 IN   |  45.72 CM
Width: 6 IN   |  15.24 CM
Volume: .25 FT3   |  .007 M3
Chargeable Weight: 2.603 LBS  | 1.18 KG

Technical Specifications

Maximum Air Pressure (bar) 8.3
Maximum Air Pressure (psi) 120
Type Dispense Valve
Weight (lb) 1.2
Wetted Material Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, Silicone Nitride, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Ambient/Warm Melt/Hot Melt 常温型, アンビエント式, Ambient, Ambient, Température ambiante, Ambiente, 상온식, Nicht beheizt, Ambient, Ambiente
Applicator Type Ball/Seat
Component Type Single Component
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Gun Activation Automatic
Maximum Air Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 276
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Mount Location Remote Mount Solenoid
Nozzle Size (in) N/A
Nozzle Size (mm) N/A
Outlet Block Length (in) NA
Outlet Block Length (mm) NA
Solenoid Valve Voltage Rating (V dc) 24
Weight (kg) 0.5

;
