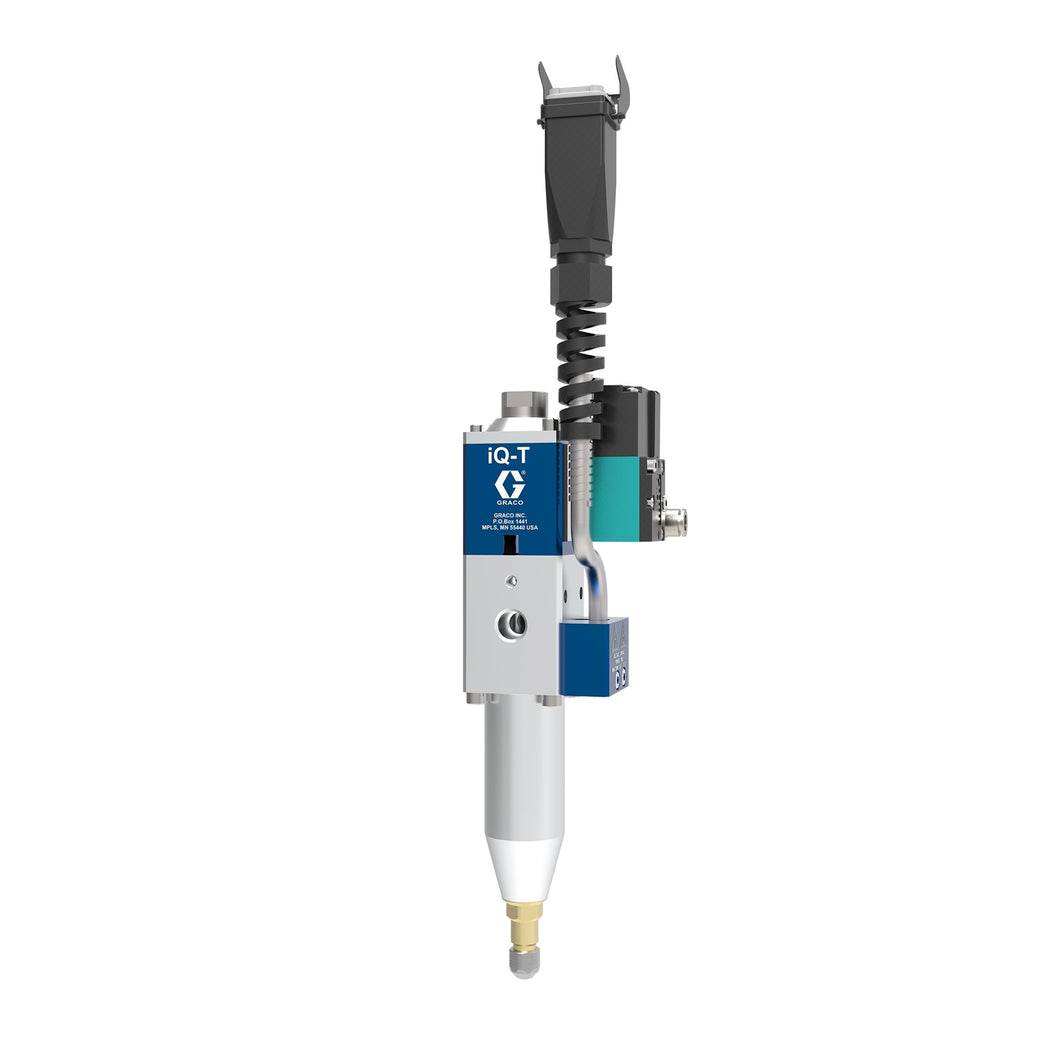

iQ Dispense Valve, Elite Tip-Seal, Heated, 0.098in (2.5mm) Tip, 2.36in (60mm) Nozzle, Direct Mount Solenoid

iQ Dispense Valve, Elite Tip-Seal, Heated, 0.098in (2.5mm) Tip, 2.36in (60mm) Nozzle, Direct Mount Solenoid

Regular price
$5,364.94
Sale price
$5,364.94
Quantity must be 1 or more


The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

  • Maximize dispense time while minimizing maintenance costs and effort
  • Delivers precise, consistent dispensing with clean starts and stops
  • Ideal for low to high viscosity materials
  • Elite seal and hardened components extends life with abrasive materials
  • Easy repeatable mounting for robotic and automated applications.
  • 60mm nozzle is compatible with 60mm focal length vision systems
UPC Product: 00769946270921
Family Code: FAMIQV
Unit of Measure: EA
Height: 4 IN   |  10.16 CM
Length: 18 IN   |  45.72 CM
Width: 7 IN   |  17.78 CM
Volume: .291 FT3   |  .008 M3
Chargeable Weight: 1.56 KG  | 3.45 LBS

Technical Specifications

Maximum Air Pressure (bar) 8.3
Maximum Air Pressure (psi) 120
Maximum Operating Temperature (°C) 70
Maximum Operating Temperature (°F) 158
Power Rating (W) 75
Voltage (V ac) 240
Weight (lb) 2.5
Wetted Material Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel
Air Inlet Size (in) 5/16
Air Inlet Thread Type Push-to-Connect
Ambient/Warm Melt/Hot Melt Warm Melt
Applicator Type Tip-Seal
Component Type Single Component
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Gun Activation Automatic
Maximum Air Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 276
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Mount Location Direct Mount Solenoid
Nozzle Size (in) 0.098
Nozzle Size (mm) 2.5
Outlet Block Length (in) 2.4
Outlet Block Length (mm) 60
RTD Type 100 OHM - Platinum
Solenoid Valve Voltage Rating (V dc) 24
Weight (kg) 1.1

;
