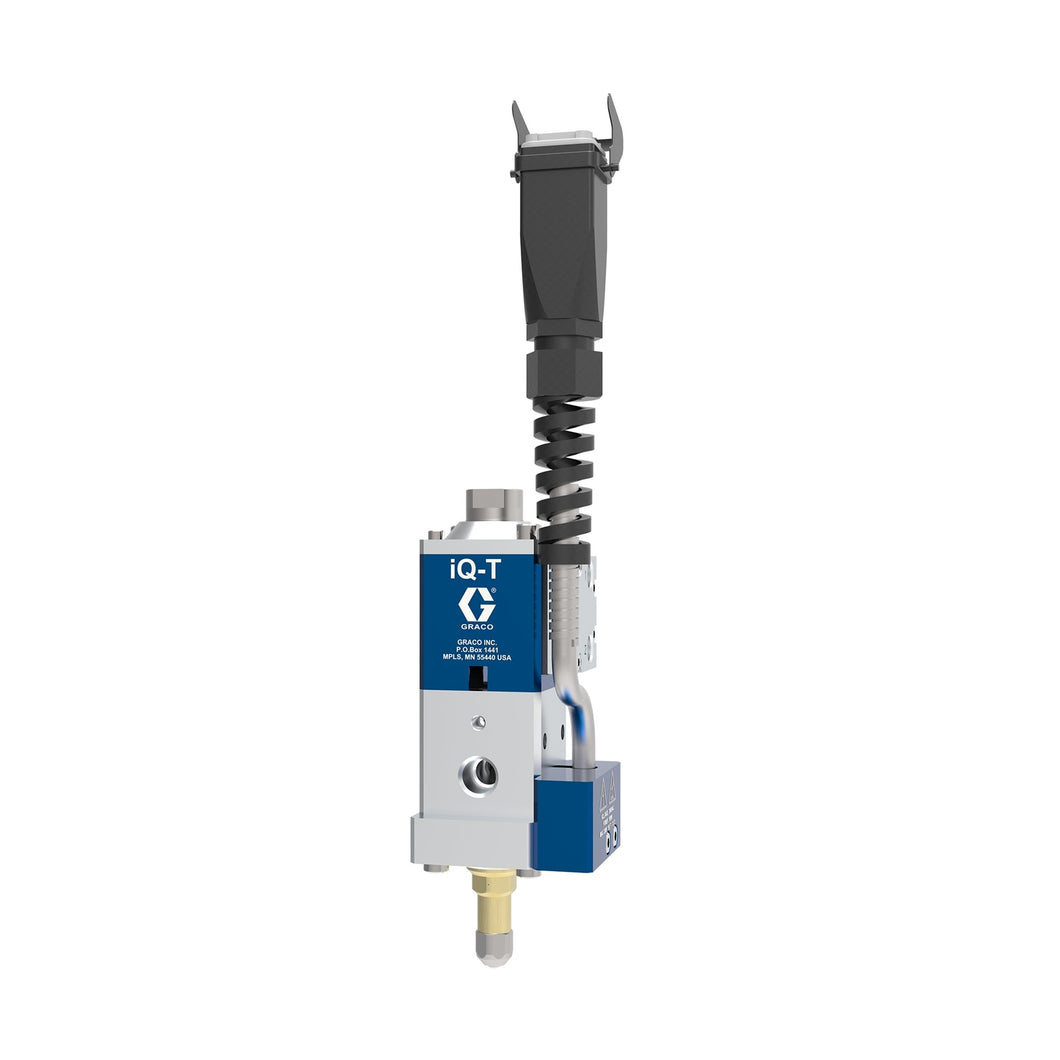

iQ Dispense Valve,  Tip-Seal, Heated, 0.157in (4.0mm) Tip , 0in (000mm) Nozzle, Remote Mount Solenoid

iQ Dispense Valve, Tip-Seal, Heated, 0.157in (4.0mm) Tip , 0in (000mm) Nozzle, Remote Mount Solenoid

Regular price
$3,267.53
Sale price
$3,267.53
Quantity must be 1 or more


The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

  • Maximize dispense time while minimizing maintenance costs and effort
  • Delivers precise, consistent dispensing with clean starts and stops
  • Ideal for low to high viscosity materials
  • Wear-resistant seals and hardened components for long life
  • Easy repeatable mounting for robotic and automated applications.
UPC Product: 00769946265965
Family Code: FAMIQV
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Maximum Air Pressure (bar) 8.3
Maximum Air Pressure (psi) 120
Maximum Operating Temperature (°C) 70
Maximum Operating Temperature (°F) 158
Power Rating (W) 100
Voltage (V ac) 240
Weight (lb) 2.1
Wetted Material Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Ambient/Warm Melt/Hot Melt Warm Melt
Applicator Type Tip-Seal
Component Type Single Component
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Gun Activation Automatic
Maximum Air Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 276
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Mount Location Remote Mount Solenoid
Nozzle Size (in) 0.157
Nozzle Size (mm) 4
Outlet Block Length (in) NA
Outlet Block Length (mm) NA
RTD Type 100 OHM - Platinum
Solenoid Valve Voltage Rating (V dc) 24
Weight (kg) 1

;
