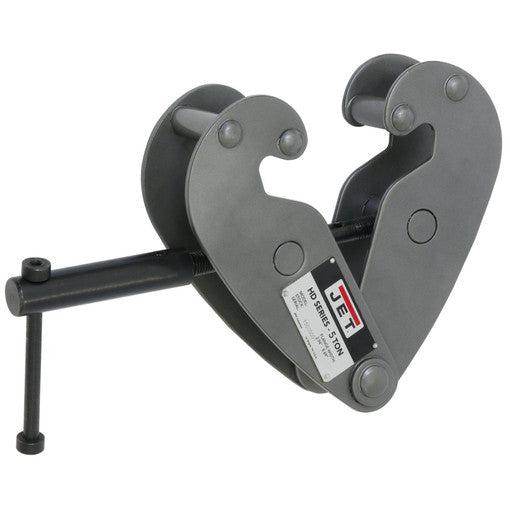

Jet Tools - HD-5T, 5 Ton, Large Capacity Beam Clamps

Jet Tools - HD-5T, 5 Ton, Large Capacity Beam Clamps

Regular price
$175.44
Sale price
$175.44
Quantity must be 1 or more


Details

    Jet 202750 Description

    JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.

    Jet 202750 Features

    • Durability
    • Welded all-steel frame and powder coat finish provide maximum durability and protection
    • Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
    • Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
    • Standards
    • Complies with ANSI / ASME B30.17 and B30.20 standards
    • Certification- Load tested to 125% of capacity with certificate

    Jet 202750 Specifications

    Load Capacity (Metric Tons) 5
    Capacity (Lbs.) 11,000
    Weight (Lbs.) 24
    Maximum Beam Flange Width (In.) 12-3/5
    Minimum Beam Flange Width (In.) 3-1/7
    Load Capacity (Tons) 5

    ;
