Justrite HDPE Gas Cylinder Support Bracket With Chain, One 12" Cylinder Capacity, Wall Mount - 35256

Regular price
Sale price
Quantity must be 1 or more

Product Summary

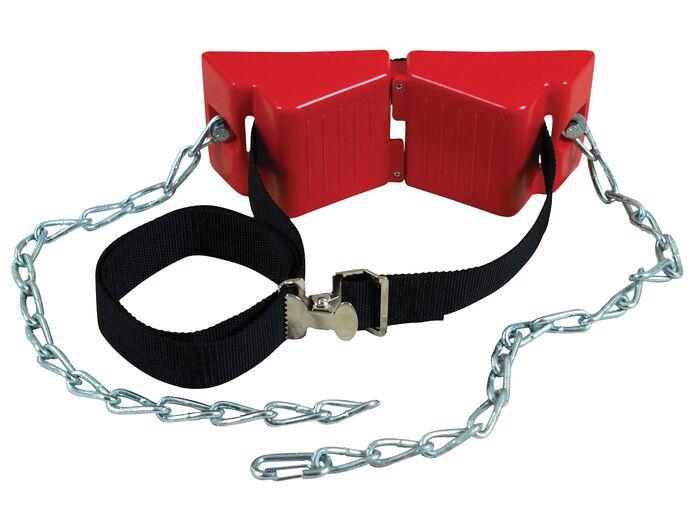

  • Brackets accept cylinder sizes ranging from 4- to 12-in (102- to 305-mm)
  • High density polyethylene (HDPE) construction
  • Includes secondary support chain for an improved level of safety on any installation
  • Designed for wall mounting applications


Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from HDPE, the adjustable width design uses recessed set screws that lock the two halves in place. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. Welded and plated, heavy-duty size 2/0 steel chains with twist link allows links to lay flat against the cylinders, enabling a tighter fit and preventing damage to required labeling.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

More Information
Model No 35256
UPC 697841210844
Cylinder Capacity 1
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (1) 12 inch
Mount Type Wall
Mount Holes 2
Mount Hole Size (inch) 0.3
Strap Style Poly Cinch Strap with Steel Buckle and Chain
Straps Per Cylinder 1
Material Specifications High Density Polethylene
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 2.5
Net Weight, kg 1.1
Net Dimensions (W x D x H) 10.375 x 2.5 x 4 inches
264 x 64 x 102 mm
