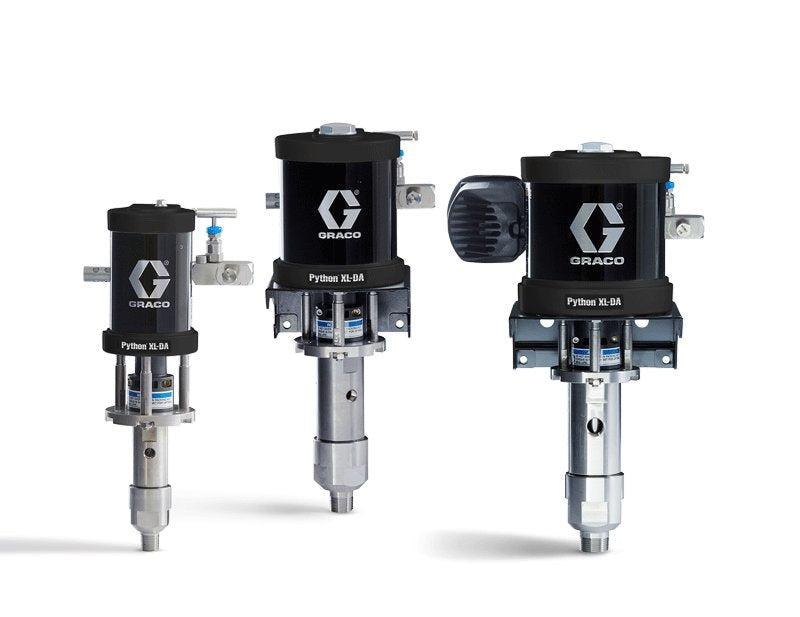

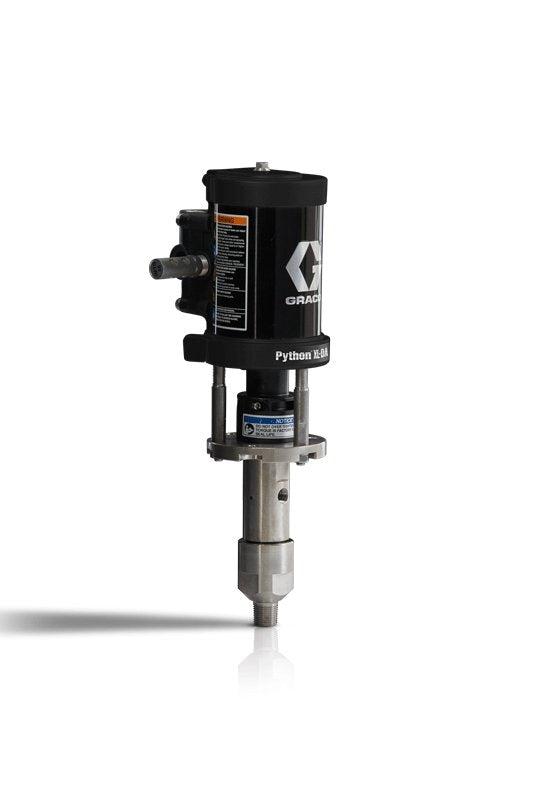

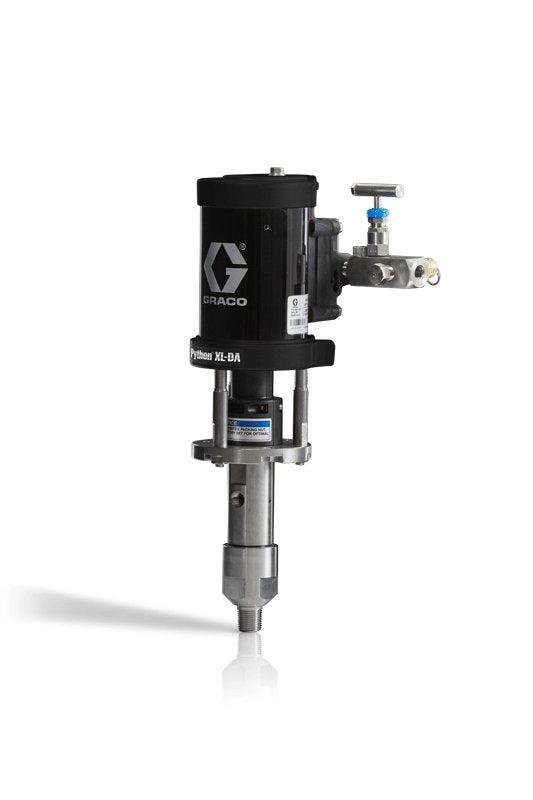

Python XL-DA Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, 3/8 in Plunger, Chromex Coated, TFE/P Seals, CE Approved
Python XL-DA Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, 3/8 in Plunger, Chromex Coated, TFE/P Seals, CE Approved
Python XL-DA Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, 3/8 in Plunger, Chromex Coated, TFE/P Seals, CE Approved

Python XL-DA Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, 3/8 in Plunger, Chromex Coated, TFE/P Seals, CE Approved

Regular price
$3,653.90
Sale price
$3,653.90
Quantity must be 1 or more


Python XL-DA series pumps are suitable for chemical injection applications that require higher flows at high pressures. These pumps operate on low gas or compressed air pressures and utilize the same Merkur® air motor used on other Graco products. The Graco patented high efficiency air valve helps minimize fugitive emissions and gas recovery can be achieved on specific models. The Python XL-DA pumps fluid in both stroke directions which provides continuous flow operation and prevents the pump from air locking.

  • Double Acting
    • Pumps fluid in both directions of the stroke for increased flows
    • Provides continuous flow operation for better pump efficiencies
    • 2.5 inch pump stroke for high flow rates
  • Self-Priming
    • Anti-locking so air cannot get trapped inside air motor and stall pump
    • Pump can free itself of air and resume pumping without any adjustments
  • Ease of Serviceability
    • Simple pump design for quick seals replacement
    • Pumps are installed vertically for a reduced footprint
    • Minimum number of tools required
  • Environmentally friendly
    • Recoverable exhaust gas with kit
    • Less fugitive emissions
    • 4.5” air motors come ready for a gas recovery add-on kit
UPC Product: 00755652782698
Family Code: FAMPDA
Unit of Measure: EA
Height: 9.75 IN   |  24.765 CM
Length: 19.5 IN   |  49.53 CM
Width: 7.5 IN   |  19.05 CM
Volume: .825 FT3   |  .023 M3
Chargeable Weight: 14 LBS  | 6.35 KG

Technical Specifications

Type Pneumatic Chemical Pump
Application Non-Hazardous Location
Fluid Inlet Size (in) 3/8
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Maximum Operating Temperature (°C) 80
Maximum Operating Temperature (°F) 176
Maximum Working Pressure (bar) 306
Maximum Working Pressure (kPa) 30600
Maximum Working Pressure (psi) 4400
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Plunger Material Chromex 涂层, Chromex Coated, Recubierto de Chromex
Plunger Size (cm) 1
Plunger Size (in) 3/8
Plunger Size (mm) 9.5
Seal Material TFE/P
Plunger Rod Coating Chromex
Air Motor Size (in) 2-1/2
Approvals CE
Maximum Working Pressure (MPa) 30.6
Series XL DA
Model Python

;
