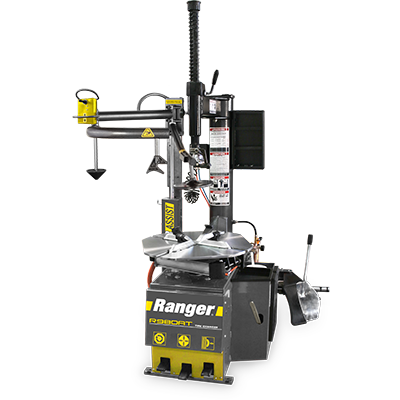

The R980AT saves an impressive amount of space, making it ideal for small or cramped tire shops. Because it utilizes a swing-arm design and doesn't tilt back, it can be installed flush against a wall. An assist tower will help with stiffer sidewalls, run-flats and other low-profile tires. 30" clamping ability.
Features
Air Requirement 140 - 165 psi (10-11 BAR)
Wheel Clamping Method
4 Clamps - Internal / External
Table Clamping System
Dual Pneumatic Cylinders
Bead Breaking System
Pneumatic Blade / Dual Settings
Power Assist Towers
Single Assist Tower
Tool Holder
Manual Lock
Inflation Gauge With Integrated Air Dump Valve
Inflation Pressure Regulator/Limiter
Water Filter
Oiler / Lubricator
Air Regulator
Breaker Bar
Large Soap / Lubricator Bucket
Brush
Tower Design
Rigid Fixed / Swing Arm
Bead Lifting Roller(s)
Single Lifting Roller
Alloy-Steel Mount/Demount Head
Plastic-Polymer Mount/Demount Head
Upper Bead Assist Roller
Traveling Drop-Center Hold Down Device
Inflation Restraint Device
Bead Seating System
Turbo Blast / Bead Seating
Tool Tray / Bin Storage
Motorcycle Turntable Clamps (Optional)
Style:
Fixed Tower Design
Assist
Assist Type:
Single-Tower Assist
Speed
Speed:
Standard
Motor
3 HP (220 VAC 50-60 HZ)
Drive System Type
Electric / Air
Air Requirement
140-165 PSI (10-11 BAR)
Wheel Clamping Method
4 Clamps - Internal / External
Table Clamping System
Dual Pneumatic Cylinders
Bead Breaking System
Pneumatic Blade / Dual
Tower Design
Rigid Fixed / Swing Arm
Power Assist Towers
Single Assist Tower
Bead Lifting Roller(s)
Single Lifting Roller
Bead Seating System
Turbo Blast / Bead Seating
Internal Rim Clamping Capacity
10” - 30” (254 mm - 762 mm)
External Rim Clamping Capacity
9” - 28” (229 mm - 711 mm)
Turntable Tire Width Capacity (Mounting)
4” - 18” (102 mm - 457 mm)
Bead Breaker Tire Width Capacity (Demounting)
1.5” – 13” (38 mm – 330 mm)
Maximum Tire Diameter
50” (1,270 mm)
Shipping Weight
900 lbs. (408 kg)
Shipping Dimensions
51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm)
