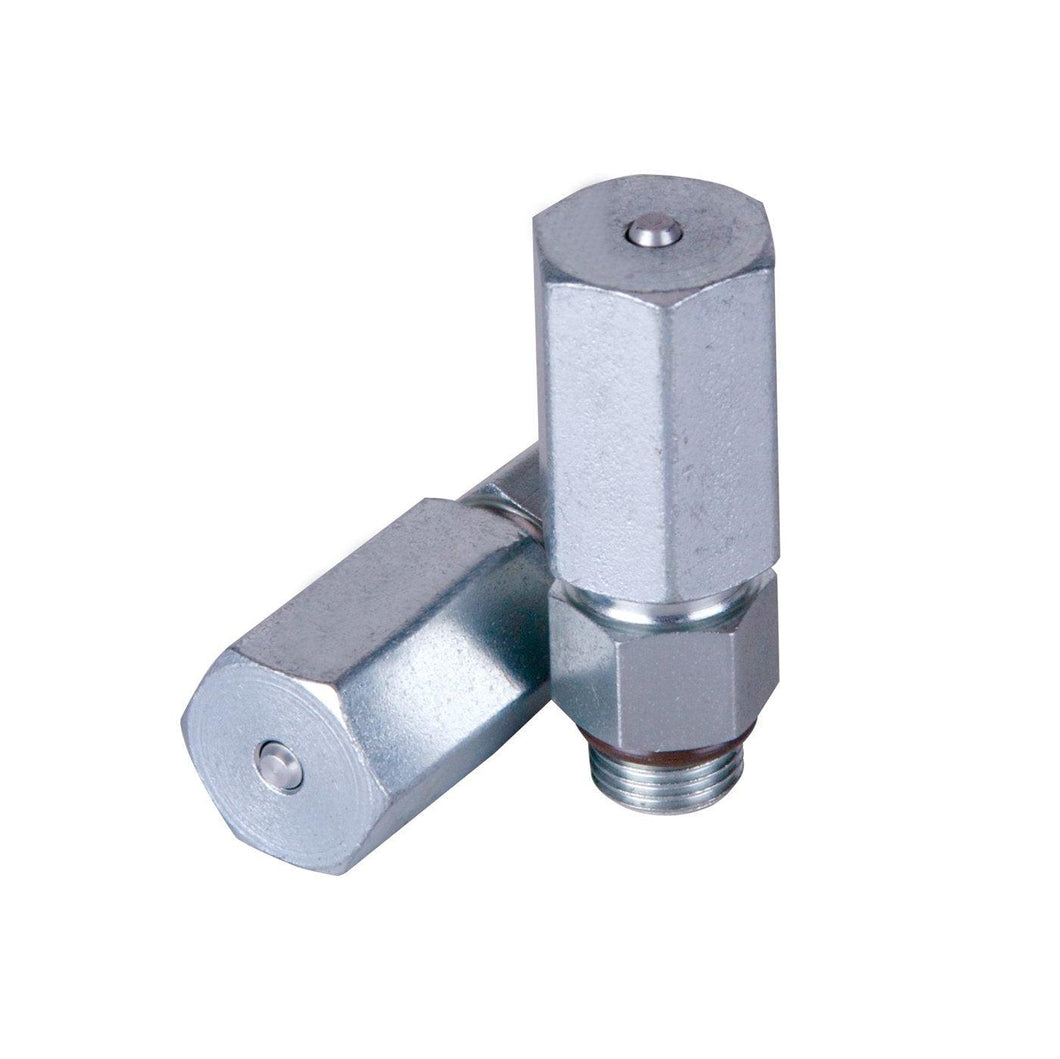

Trabon® Replacement Rupture Indicator, 1/8-27 NPTF, 7300 psi (503 bar)

Trabon® Replacement Rupture Indicator, 1/8-27 NPTF, 7300 psi (503 bar)

Regular price
$78.10
Sale price
$78.10
Quantity must be 1 or more


Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).

  • High pressure from blockage causes a disc to rupture.
  • Lubricant forces an indicator pin to protrude, indicating the blockage.
  • High pressure backs up through the system and trips a switch to shut the system off.
  • When fault is corrected, disc must be replaced and pin reset.
  • Divider Valve Rupture Indicators w/Memory - 7,300 psi (503 bar)
  • Lubriquip part number 509-499-200
  • Trabon part number 9499-20
UPC Product: 00633955331570
Family Code: FAMCPT
Unit of Measure: EA
Height: .55 IN   |  1.397 CM
Length: .6 IN   |  1.524 CM
Width: 1.55 IN   |  3.937 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: .09 LBS  | .04 KG

Technical Specifications

Application In-Plant Machinery, Compressor Equipment
Compatible Material Oil
Connection Size (in) 0.125
Indicator Type Rupture Indicator
Maximum Working Pressure (bar) 503
Maximum Working Pressure (kPa) 50300
Maximum Working Pressure (psi) 7300
Overall Width (mm) 14.224
Overall Length (cm) 4
Overall Length (in) 1.77
Overall Length (mm) 45
Overall Width (cm) 1.4224
Overall Width (in) 0.56
Thread Type NPTF
Type Relief Indicator
Maximum Working Pressure (MPa) 50
Model Trabon

;
