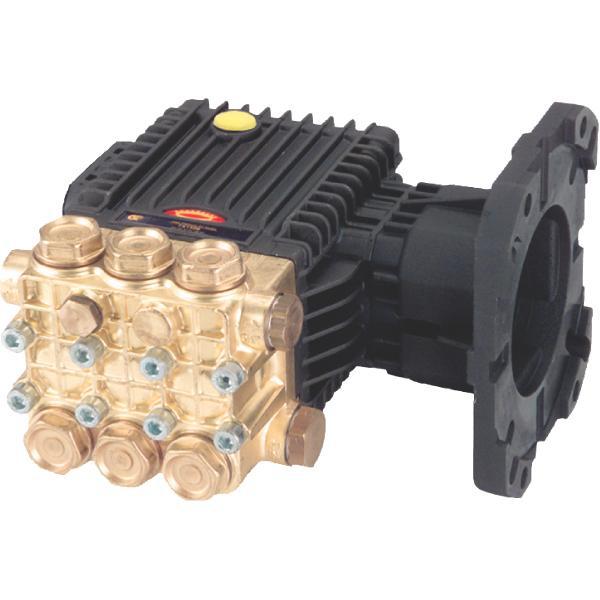

TX1508G8 3.0 3000 8.5 3400 1” Gas fange (SAE J609) hollow shaft - 1/2” BSP-F inlet, 3/8” BSP-F outlet
- SAE J609 flange for direct couple to gasoline engines
- Set screw for key way
- Oversized bearings
- Longer life low and high pressure seals
- Forged brass manifold with exclusive lifetime warranty
SPECIFICATIONS:
- Triplex Plunger Pump
- Maximum Volume: 3.0 GPM
- Maximum Discharge Pressure: 3000 PSI
- Horsepower: 9.2 GHP
- Maximum Pump Speed: 3400 RPM
- Bore: 15mm
- Stroke: 8mm
- Crankcase Oil Capacity: 14 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 1/2: FPT
- Discharge Port thread: 3/8" FPT
- Shaft Diameter: 1"
- Weight: 18 lbs
- Dimensions: 8.4" x 8.4" x6.5"
