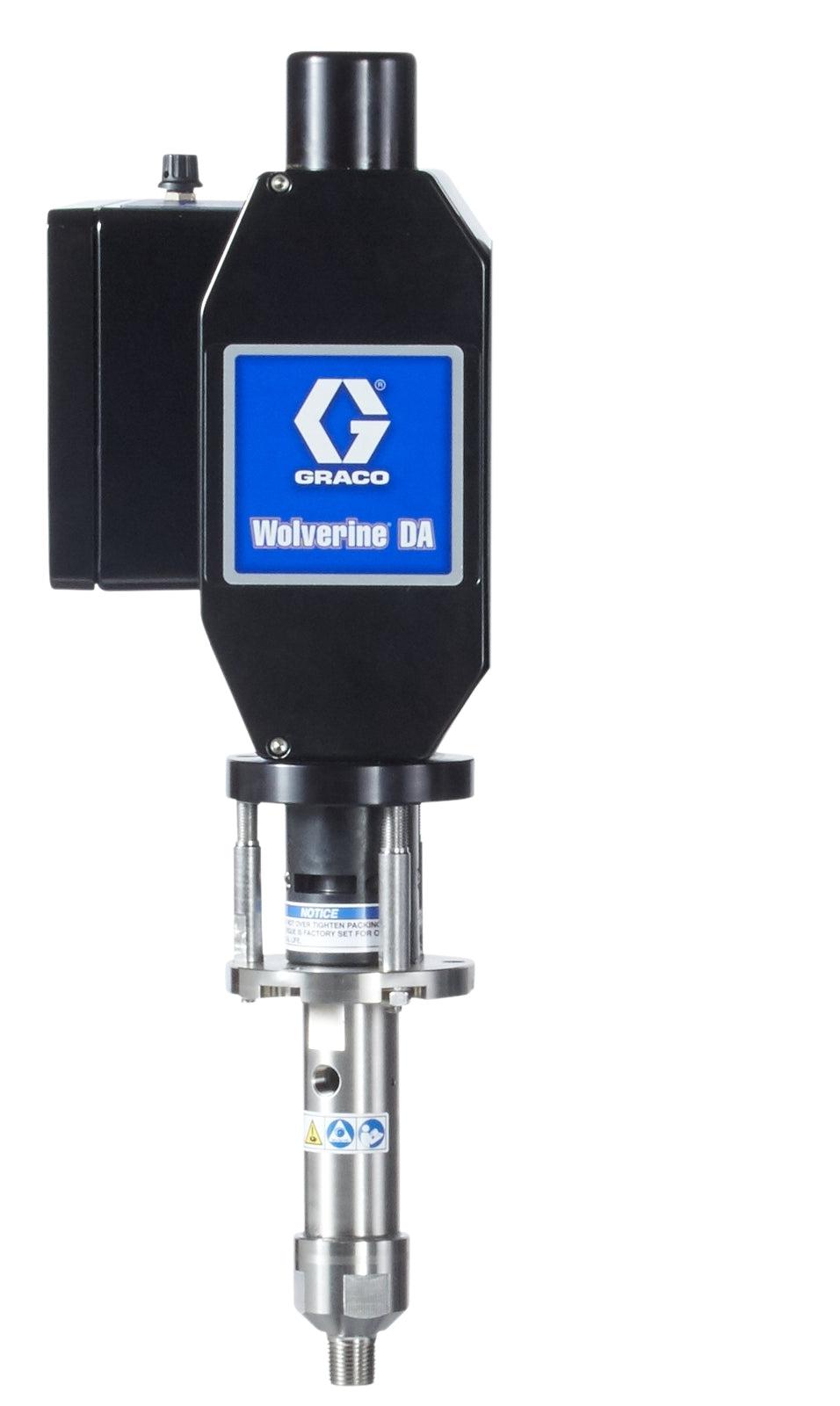

Wolverine® DA Pump, 115 VAC, 1/2 in, Ceramic coated plunger, TFE/P seals
Wolverine® DA Pump, 115 VAC, 1/2 in, Ceramic coated plunger, TFE/P seals
Wolverine® DA Pump, 115 VAC, 1/2 in, Ceramic coated plunger, TFE/P seals

Wolverine® DA Pump, 115 VAC, 1/2 in, Ceramic coated plunger, TFE/P seals

Regular price
$6,136.36
Sale price
$6,136.36
Quantity must be 1 or more


The Wolverine DA uses a double-acting pump fluid section that helps achieve double the flow of a similar single acting pump. Self-priming so the pump can purge itself of any trapped air and resume operation without physically being at the pump. The fluid sections are universal and can be used with pneumatic and electric drives. The Wolverine DA mounts directly on a pole, eliminating a need for a stand. The pump uses a brushless motor which helps keep power draw at a minimum plus it comes with variable speed control right on the motor.

  • Double-Acting
    • Pumps fluid in both directions of the stroke for increased flows
    • Provides continuous flow operation for better pump efficiencies
    • Doubles the flow of a similar single acting pump
  • Self-Priming
    • Anti-locking so air cannot get trapped inside air motor and stall pump
    • Pump can free itself of air and resume pumping without any adjustments
  • Ease of Serviceability
    • Simple pump design for quick seals replacement
    • Pumps are installed vertically for a reduced footprint

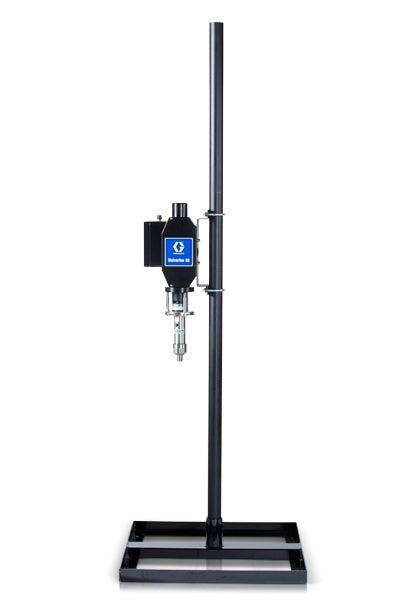

    • Pump mounts directly on a pole
    • Minimum number of tools required
  • Variable Speed Motor
    • Suitable for applications requiring continuous chemical dosing
    • Brushless DC motor helps reduce amperage draw
    • Variable speed control eliminates a need for a separate controller
UPC Product: 00755652792956
Family Code: FAMEDA
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 CM   |  0 IN
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Type Electric Chemical Pump
Application Non-Hazardous Location
Fluid Inlet Size (in) 0.5
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 6.35
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 0.635
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Maximum Working Pressure (bar) 86
Maximum Working Pressure (kPa) 8600
Maximum Working Pressure (psi) 1250
Plunger Material 陶瓷涂层, Ceramic Coated, Recubierto de cerámica
Plunger Size (in) 1/2
Seal Material TFE/P
Voltage 115 VAC
Plunger Rod Coating Ceramic
Maximum Working Pressure (MPa) 8.6
Fluid Inlet Size (cm) 1.27
Fluid Inlet Size (mm) 12.7
Maximum Sound Pressure Level (dB(A)) 70
Voltage (V ac) 115
Series DA
Model Wolverine

;
