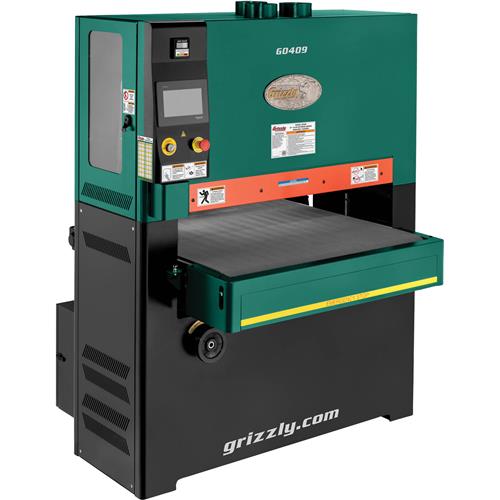

G0409 37" 10 HP Extreme Series Wide-Belt Sander
Upgrade your woodworking shop with this wide-belt sander designed to efficiently process large panels.
Get your professional shop up to full speed by adding this wide-belt sander to your equipment lineup.
Fitted with a high-powered 10 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.
Special options on this 37" wide-belt sander include a platen for uniform results, user-friendly touch-screen controls, thickness sensor, clear side window, and interior lighting.
This sander is equipped to boost your daily shop efficiency, whether your focus is achieving a high-quality finish on custom furniture, sanding architectural millwork, or preparing wide planks for flooring.FEATURES & BENEFITS:
A platen offers even pressure for fine sanding with a smooth finish
Touch-screen controls for motors, sanding drum, conveyor, and table elevation
Material thickness sensor automatically adjusts the table to the thickness of your workpiece
Plexiglass side window and interior lights for easy viewing of sanding belt tracking
Variable-speed feed conveyor for adaptability and optimal sanding results
Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
Amp/load meter to prevent excessive loads while maximizing machine capacity
Built-in air regulator/water separator to protect pneumatic components
Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
Disc brake, emergency stop bar, and stop switch for optimal safetySPECIFICATIONS:
Main motor: 10 HP, 220V, single-phase, 50A
Conveyor feed motor: 1 HP, 7A
Table elevation motor: 1/3 HP, 3A
Maximum board width: 36-1/2"
Maximum board thickness: 6"
Minimum board length: 14"
Minimum board thickness: 1/8"
Conveyor speed: 15-49 FPM
Sanding belt speed: 2565 FPM
Sanding belt size: 37" x 60"
Sanding belt oscillations: 35-40 OPM
Platen type: 2-1/4" x 37-3/4" Adjustable graphite pad
Air requirement: 75 PSI
Footprint: 51" x 19"
Overall dimensions: 53" W x 50" D x 66" H
Approximate shipping weight: 1808 lbs.
Simplify high-volume sanding by adding this feature-packed 37" 10 HP wide-belt sander to your shop today.Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.
Comprehensive U.S.-Based Support:
Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0409 safeguards your investment, offering peace of mind and ensuring long-term reliability.Made in an ISO 9001 factory
