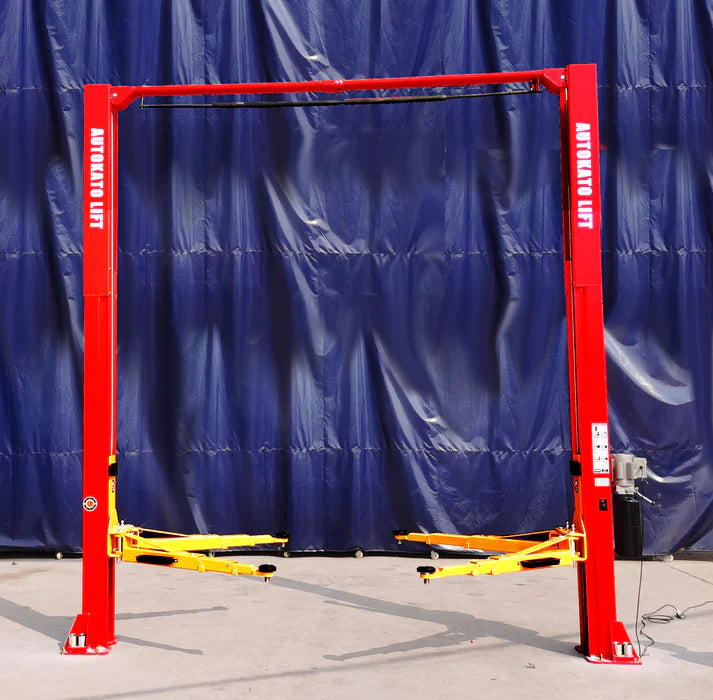

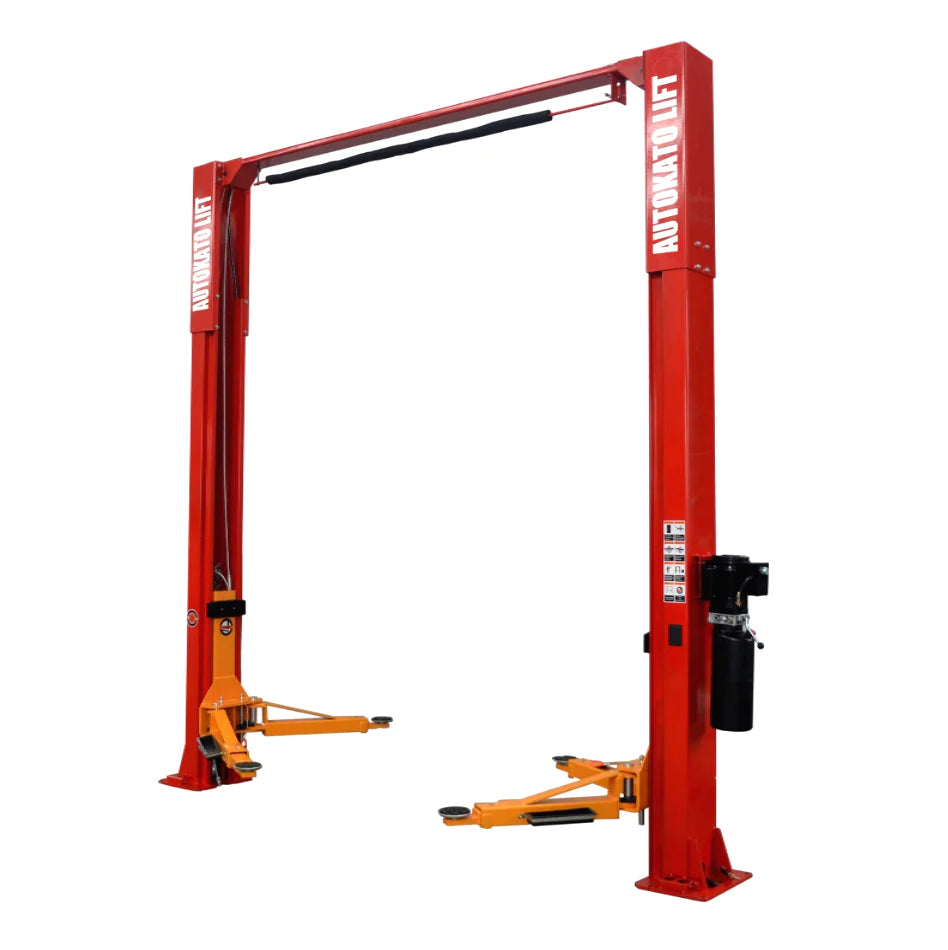

Katool KT-M120 12000 lbs. Clear Floor Two Post Lift

Professional strength and clear-floor versatility.
The Katool KT-M120 is a rugged, high-capacity two-post lift engineered for busy automotive shops, performance garages, dealerships, and serious home workshops. With a 12,000 lb / 5,500 kg rated capacity and a clear-floor design, the KT-M120 delivers smooth, balanced lifting with expansive under-vehicle access—making routine maintenance and heavy-duty service work faster, safer, and more efficient.

Key Features

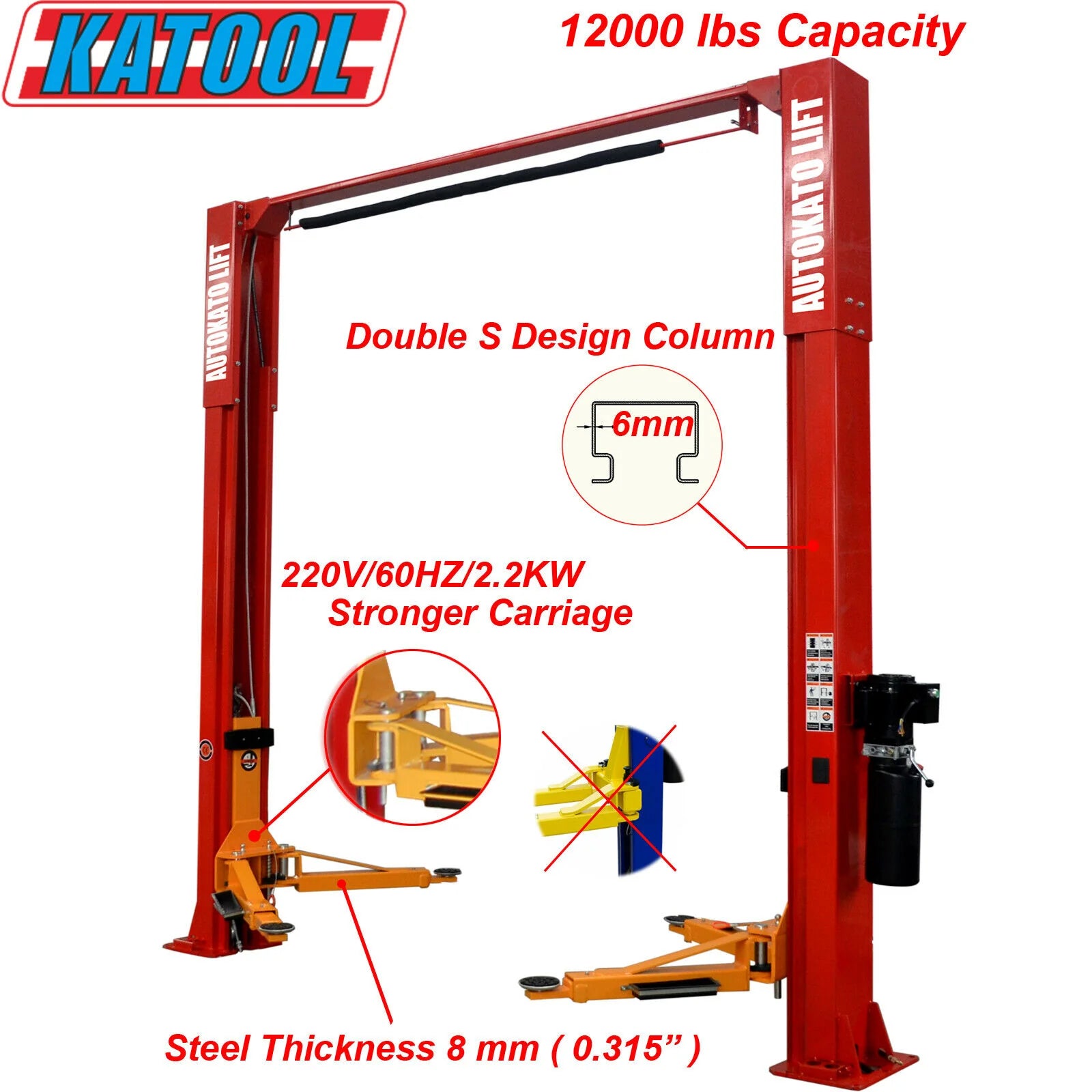

• 12,000 lb (5,500 kg) Lifting Capacity — Supports cars, SUVs, vans, and many light- to medium-duty trucks with confidence.

• Clear-Floor Two-Post Design — Maximizes workspace under the vehicle for unhindered service access.

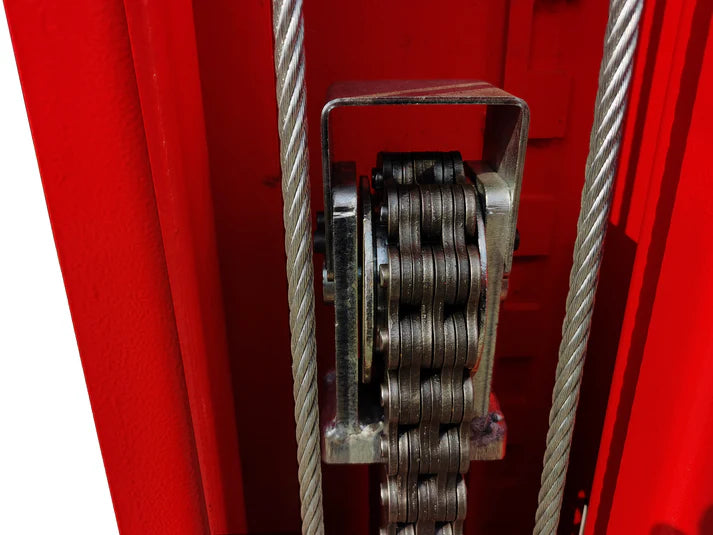

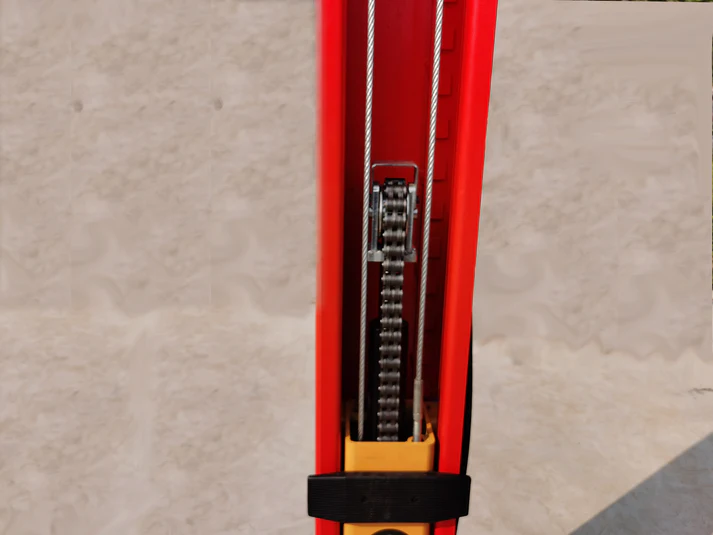

• Dual Hydraulic Chain-Drive System — Synchronized lifting for smooth, stable elevation on every cycle.

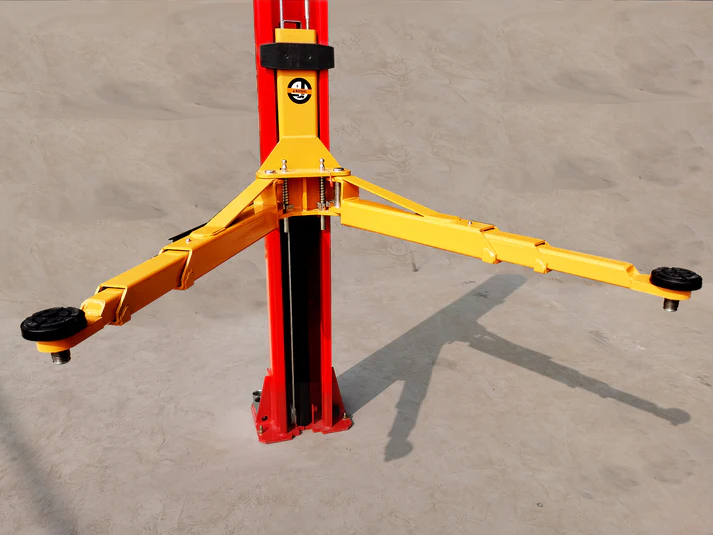

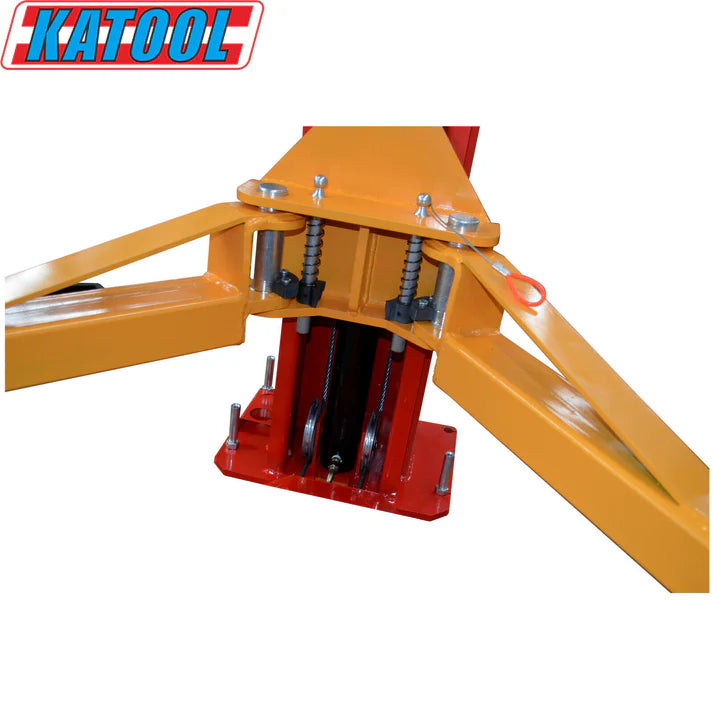

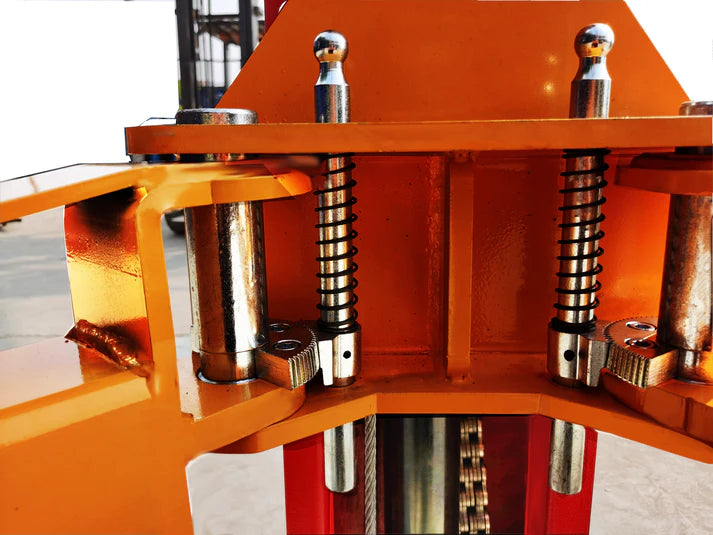

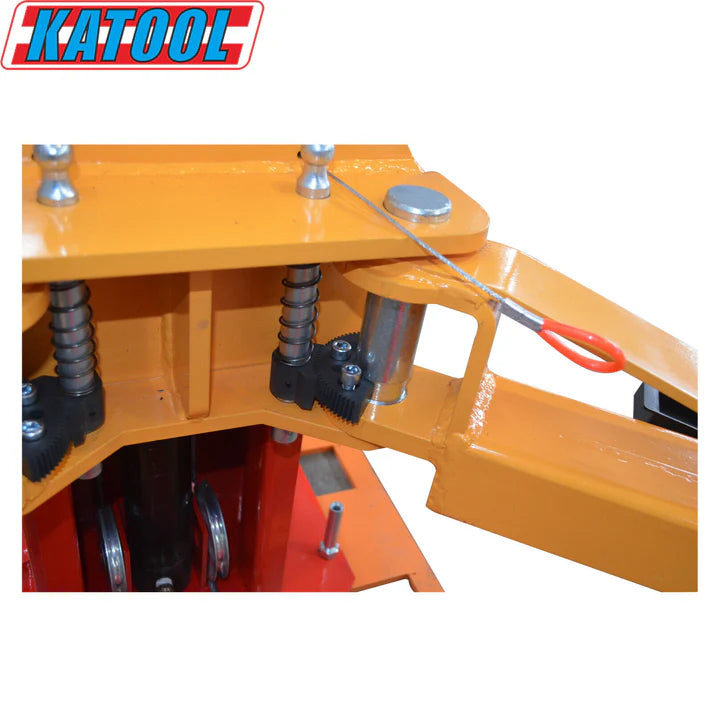

• Symmetric Arm Configuration — Balanced geometry for intuitive vehicle positioning and versatile service tasks.

• Manual Safety Release on Both Columns — Technician-friendly safety lowering points on either side.

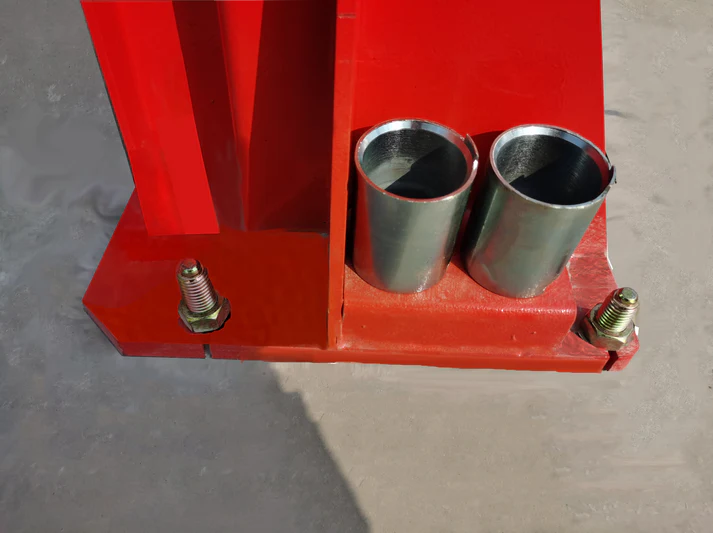

• Included Support Adapters — +30 mm and +120 mm extension adapters help service taller vehicles.

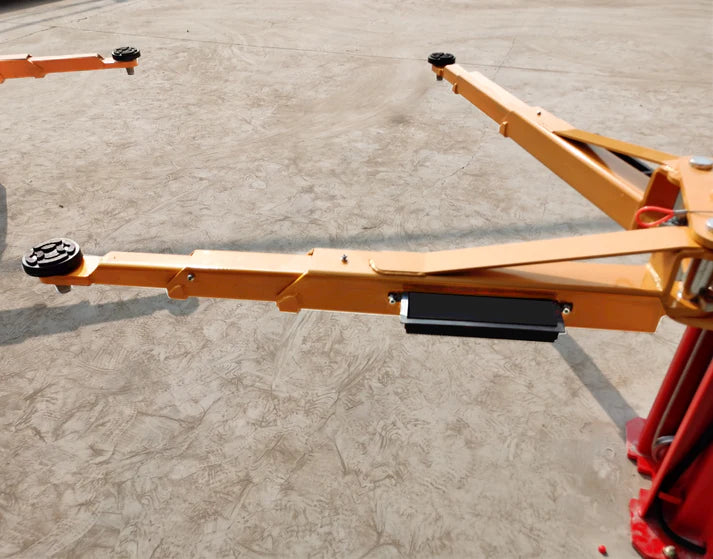

• Door Protecting Rubber Pads — Help prevent paint and edge damage while lifting.

• Overhead Safety Shutoff Bar — Automatic cut-off to avoid over-travel and protect your lift and vehicle.

• Tool Tray & Guardrails — Built-in storage and bump guard features for enhanced shop safety.

Why the KT-M120?

The Katool KT-M120 is built for professionals who demand both high capacity and clear access. Its powerful hydraulic system and well-balanced arm design give technicians confident control over every lift, while the clear-floor layout opens up the workspace beneath the vehicle for oil changes, transmission work, brake service, suspension repairs, and full-underbody diagnostics.

This lift’s robust construction and safe, intuitive operation make it a reliable centerpiece in service bays where throughput, precision, and durability matter.

Ideal For

• Independent and dealership workshops

• Performance and motorsports garages

• Fleet maintenance facilities

• Fabrication and restoration shops

• Enthusiast home garages with heavy service needs

Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
