DESCRIPTION

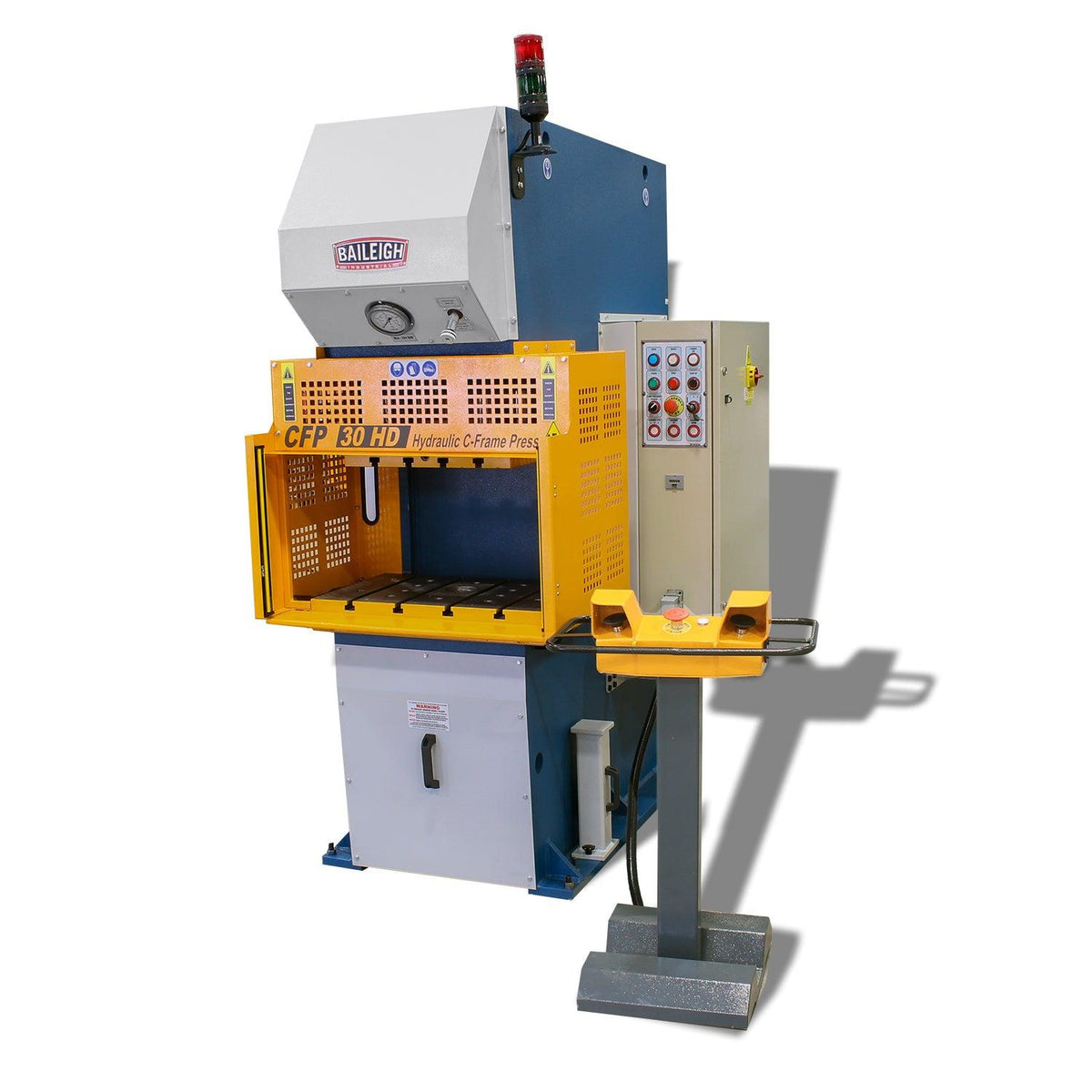

CFP-30HD: C-Frame Hydraulic Press Machine
- 30 tons
- C-frame press
- Perfect for pressing or straightening
- Fully welded construction
- Hydraulically operated
- Adjustable slide pressure
- Separate control pedestal
- 480V 3-phase
SPECIFICATIONS
| Item Number | CFP-30HD |
|---|---|
| Down Force | 30 tons |
| Return Force | 9 tons |
| Production Pressure | 3539 psi |
| Return Speed | 1.1" / sec |
| Bolster Size | 27.56” x 23.625” x 1.75” |
| Shank Hole | 3.9” |
| Motor | 5 hp |
| Oil Capacity | 24 gal. |
| Throat Depth | 25.4" |
| Idle Speed | 1.26" per sec. |
| Pressing Speed | .28" per sec. |
| Table Height | 26.75" |
| Power | 480V / 3-Phase |
| Shipping Weight | 5800lbs |
| Shipping Dimensions (Inches) | 50x55x110 |
* specifications subject to change without notice.
