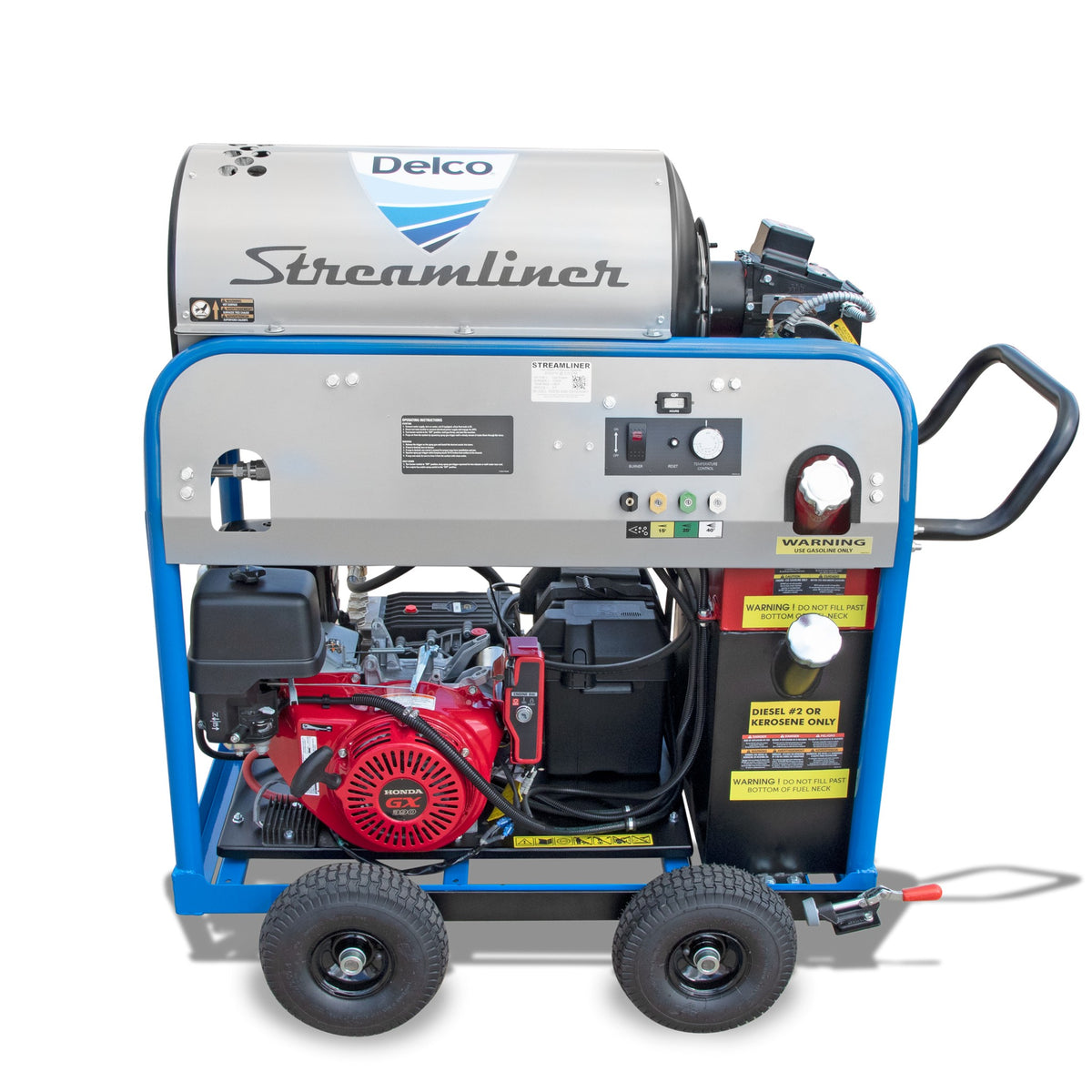

The Delco Streamliner DSL4040143EDC11 (FNA part 65364) is a gas-powered, hot water mobile pressure washer that delivers 4000 PSI at 4.0 GPM for 16,000 cleaning units. It runs on a 420cc CRX® key-start engine driving a UDOR® industrial triplex pump through a gear drive. The oil-fired burner runs on No. 1/No. 2 diesel or kerosene. It is compact enough to fit in a transit van or truck bed and pass through a 36" doorway, which suits contractors and fleet operators who need hot water cleaning on the go. Not for sale in California.
Engine & Burner
- CRX® 420cc key-start engine (battery not included) with low-oil shutdown
- Gear drive with 1750 RPM slow speed
- 120V burner system with on/off rocker switch and hour meter
- High-temperature safety switch
- 1/2" schedule 80 horizontal coil
- Burner fuels: No. 1/No. 2 diesel or kerosene. 5.0 gal gas tank and 10.0 gal diesel tank.
Pump
- UDOR® industrial triplex pump
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
Frame & Mobility
- Heavy-duty 1-1/2" round tubular steel frame, powder-coated for corrosion resistance
- Isolated pump and engine plate with vibration dampeners
- Wheel brake system
- 3.4 kW generator with two 120V outlets
- Dimensions: L 50" x W 32" x H 47". Weight: 450 lbs.
Included Accessories
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25°, and 40°
- Downstream injector
- Engine oil 10W-30
Warranty & Options
- 10-year frame, 5-year pump, 3-year engine warranty
- Optional accessories: Analog Thermostat Kit (80657) and Steam Kit (80646)
Have questions about the Delco Streamliner DSL4040143EDC11 or need help choosing a hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DSL4040143EDC11 |
| Part Number | 65364 |
| Pressure | 4000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 16,000 |
| Engine | CRX® 420 (Key-start) |
| Displacement | 420cc |
| Pump | UDOR® industrial triplex |
| Drive | Gear |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner Voltage | 120V |
| Gas Tank | 5.0 gal |
| Diesel Tank | 10.0 gal |
| Weight | 450 lbs |
| Dimensions | L 50" x W 32" x H 47" |
| Warranty | 10-Year Frame, 5-Year Pump, 3-Year Engine |
