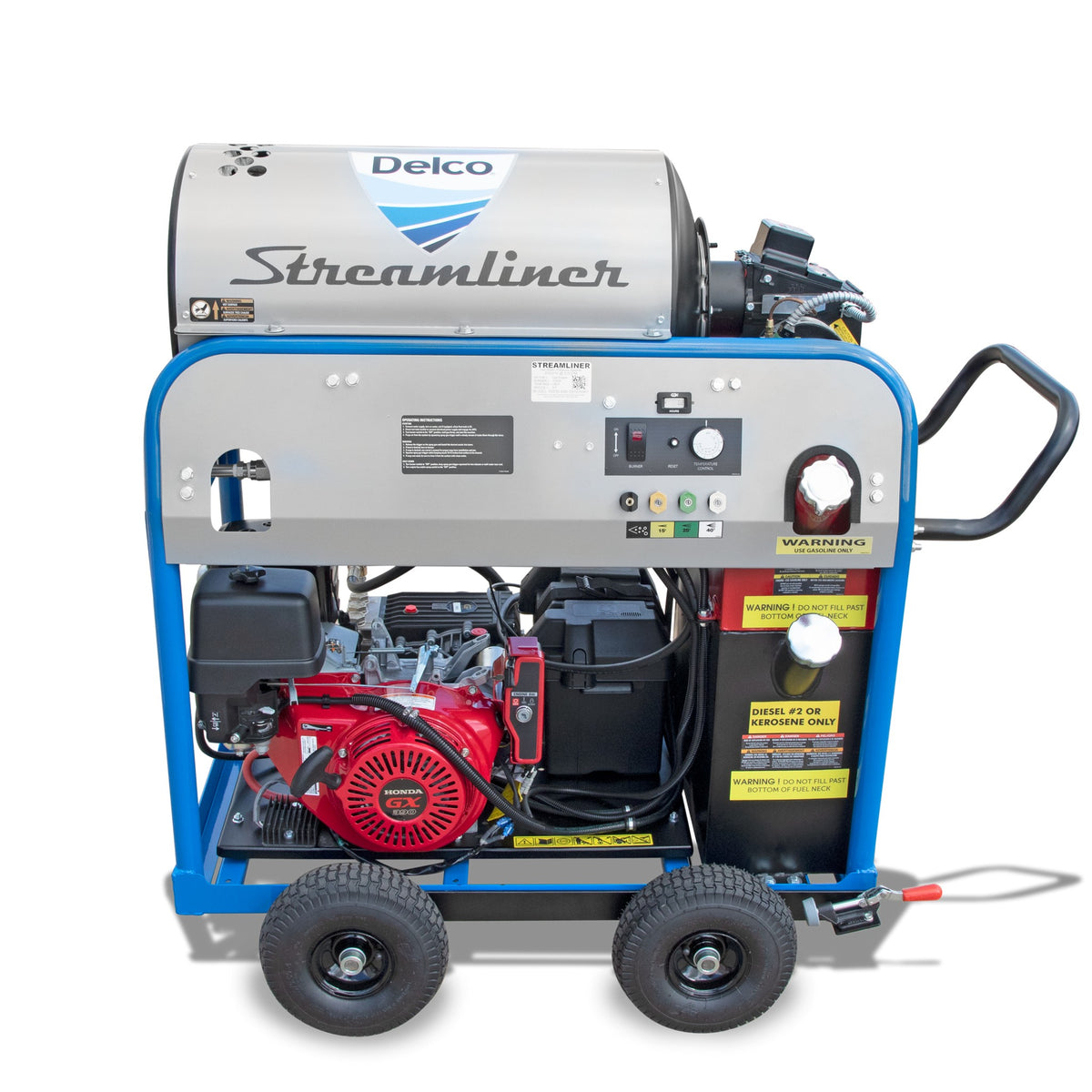

The Delco Streamliner DSL4040253EDC11 (part #65016) is a gas-engine, hot water pressure washer rated at 4000 PSI and 4.0 GPM for 16,000 cleaning units. It pairs a Honda GX390 key-start engine with a gear-driven General Pump® industrial triplex pump and an oil-fired burner that runs on No. 1/No. 2 diesel or kerosene. It is compact enough to fit in a transit van or truck bed and to pass through a 36" doorway. That suits contractors and fleet crews who need mobile hot water cleaning. Not for sale in California.
Burner & Heating System
- 120V burner system with burner on/off rocker switch and hour meter
- 1/2" schedule 80 horizontal coil
- High-temperature safety switch
- Burner fuels: No. 1/No. 2 diesel or kerosene, with a 10.0 gal diesel tank
Engine & Power
- Honda GX390 389cc key-start engine (battery not included)
- Low oil shutdown
- 5.0 gal gas tank
- Gear drive with 1750 RPM slow speed
- 3.4 kW generator with two 120V outlets
- Isolated pump and engine plate with vibration dampeners
General Pump® Industrial Triplex
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
Frame & Mobility
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated for corrosion resistance
- Wheel brake system
- Compact 50" L x 32" W x 47" H footprint, 450 lbs
- Warranty: 10-Year Frame, 5-Year Pump, 3-Year Engine
Included Accessories
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25°, and 40°
- Downstream injector
- Engine oil 10W-30
Optional accessories include the Analog Thermostat Kit (80657) and the Steam Kit (80646). If you have questions about the Delco Streamliner DSL4040253EDC11 or need help choosing accessories, call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Part Number | 65016 |
| Model | DSL4040253EDC11 |
| Pressure | 4000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 16,000 |
| Engine | Honda GX390 (Key-start) |
| Displacement | 389cc |
| Pump | General Pump industrial triplex |
| Drive | Gear |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner Voltage | 120V |
| Gas Tank | 5.0 gal |
| Diesel Tank | 10.0 gal |
| Weight | 450 lbs |
| Dimensions | L 50" x W 32" x H 47" |
| Warranty | 10-Year Frame, 5-Year Pump, 3-Year Engine |
