20040DC Ultra Quiet & Oil-Free 4.0 Hp, 20.0 Gal. w/ Air Dryer

• 4.0 HP (Running / Rated) Motor
• 20.0 Gallon Steel Tank (175 lbs)
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
• 125 PSI Maximum
• 75 Decibels
• Oil – Free (Dual Piston) Pump
• Two Pressure Control Gauges
• One Universal Quick Connector
• 15.0 Amps
• “NEW” Air Drying System
• “NEW” SP Series Motor
• Longer Continuous Run Times
• Condor Pressure Switch
• 3000 Hours Before Service

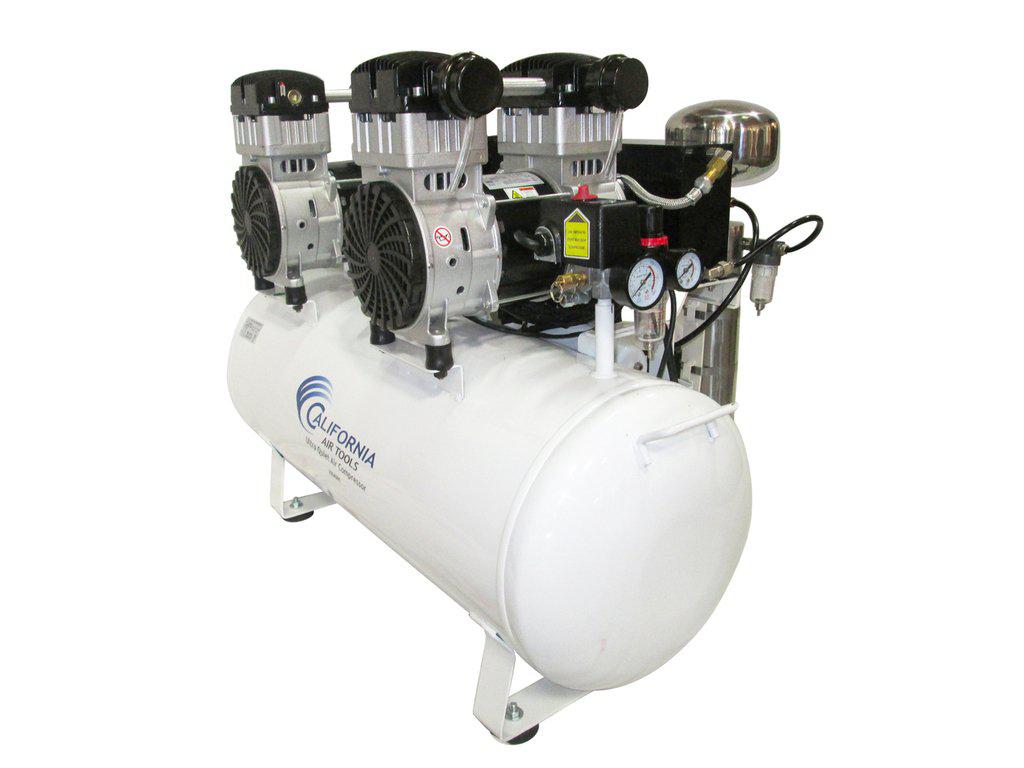

The CALIFORNIA AIR TOOLS 20040DC Ultra Quiet & Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound.

The Powerful "New" (2) 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear.

The "New" SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.

The CAT-20040DC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.

The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

The large 20 Gallon Steel Air Tank is just the right size for shop or garage.

The Air Dryer is specially designed to remove the 80% of the water vapor from the air to protect sensitive tools and machinery.

To dry the air from the air compressor an Aftercooler and Dryer are utilized.

The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.

Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!

Features:

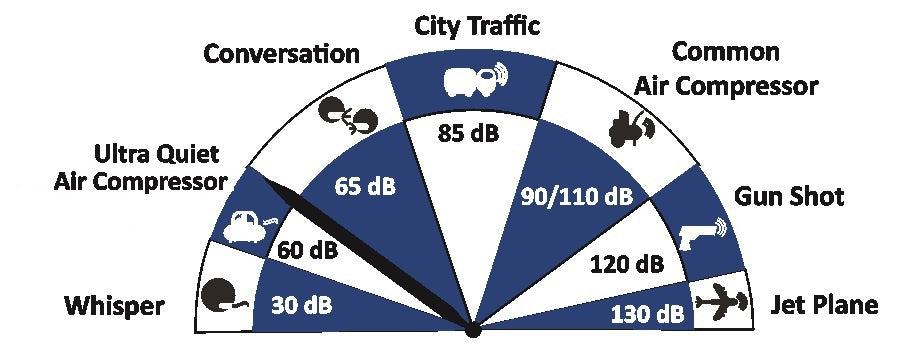

* Ultra Quiet - Only 75 decibels
* Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
* Two pressure control gauges
* One - 1/4″ Industrial female quick connector
* Condor Pressure Switch
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* 220 Volts / 60 Hertz / Single Phase - (No 208 Volts)
* Low Amp Draw - 14 Amps
* Time to fill tank from empty to full - 150 Seconds
* Recovery time from 95 PSI to 125 PSI - 40 Seconds
* Duty Cycle - 70/30
* Maximum continuous running 30-60 min. (Depending PSI & CFM)
* Less heat which dissipates more efficiently
* 20 Gal. Steel AirTank
* L (39") x W (25") x H (28")
* 175 lbs
* Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life. Activated Alumina is used in air prepurification (due to it's high water and carbon dioxide adsorption capacity) and adsorption of sulphur compounds.
* Aftercooler (condenser)
* 1 Year Limited Warranty
* Comes complete (4) Air Filters
* Plug Type: Nema 6-15P
* Commercial Use: Refer to State & City Codes
* Assembled in USA with global components
