Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- External valve access allows for easy servicing and online replacement to minimize downtime
UPC Product: 00633955376175
Family Code: FAMCPP
Unit of Measure: EA
Height:
16.8 IN
| 42.672 CM
Length:
34.8 IN
| 88.392 CM
Width:
15.6 IN
| 39.624 CM
Volume:
5.28 FT3
| .15 M3
Chargeable Weight:
54.943 LBS
| 24.91 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPT |
| Hose Inlet Diameter (cm) | 0.476 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.76 |
| Includes | ポンプおよびガンエア制御, Pump and Gun Air Controls, Bomba y controles de aire de pistola, 펌프 및 건 에어 제어장치, 吸引ホース, Suction Hose, manguera de aspiración, 흡입 호스 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 0.8 |
| Maximum Flow Rate (L/min) | 3 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Maximum Working Pressure (psi) | 1500 |
| Sprayer Type | High Pressure |
| Weight (kg) | 18.6 |
| Weight (lb) | 41 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| Spray Type | No Applicator |
| Mount Type | Wall Mount |

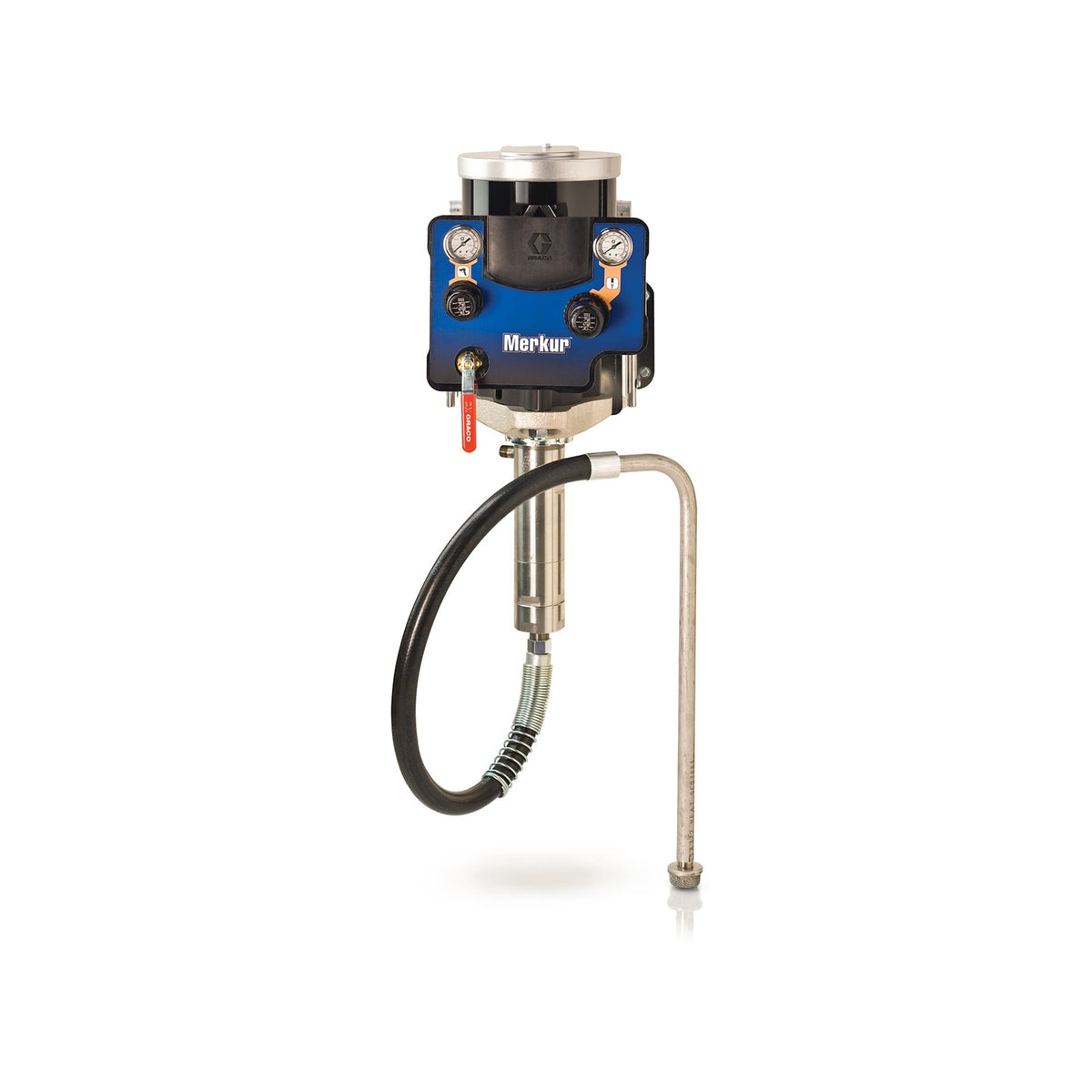

| Model | Merkur |
| Type | Bare Package |
| Product Type | Bare Package |
| Technology Type | Airless |
| Gun Included | 0 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Pump Type | Pneumatic Piston Pump |
| Gun Type | No Applicator |
| Gun Model | No Applicator |
| Pump Ratio | 15:1 |
| Gun Technology | Bare Package |
