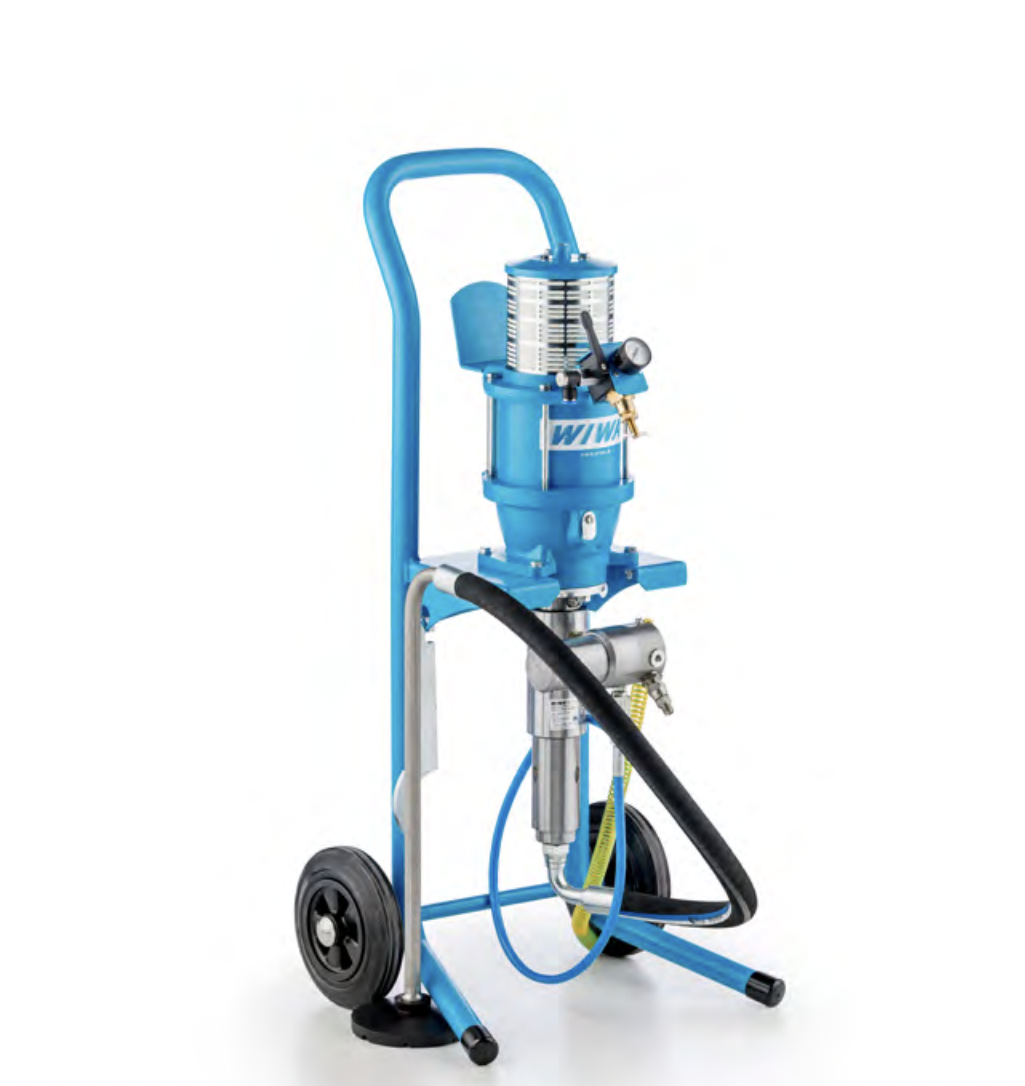

WIWA PHOENIX GX - AIRLESS, AIR-COMBI AND HOT-JOB SPRAYING UNITS FOR TRADE AND INDUSTRY -Above-average durability is a must for an efficient use.

Like all other WIWA equipment series, the WIWA PHOENIX GX series impresses through the above-average durability of all its components. are fully selected, high quality materials reduce wear and tear during daily operation and keep repair costs to a minimum. If the usage conditions change, the pressure ratio and output can be easily adjusted by replacing a small number of components, thus avoiding additional investments.

The PHOENIX GX series is uniquely versatile thanks to its sophisticated design. The units, which are made from few components, can be quickly and modularly assembled and converted for various areas of application. All units are available in rust and acid proof versions and therefore ideally suited for use with water based coatings.

The hot spraying equipment for higher film builds, shorter drying times and the finest finish quality. During the hot spraying process the spraying agent is heated to the desired spraying temperature using the WIWA material flow heater. This eliminates the need to use solvents to alter the viscosity. An adjustable circulation system maintains a constant material temperature.

The benefits at a glance
• Excellent surface coverage
• Short drying periods
• High film builds
• Even highly viscous materials can be effortlessly processed
• Environmentally and user friendly as no solvents are required
• Glossier surfaces due to improved paint dispersion

PERFORMANCE, JUST LIKE THE BIG ONES
1 Oil-free and low-icing, technically optimized highperformance air motor
2 Maintenance unit in a compact design directly on the air motor
3 Material pump and HP filter made of stainless steel
4 Easy to open high pressure filter with hook spanner
5 Coarse threads for easy assembly and disassembly of the material pump
6 Throat seal liquid sight glass; the level of throat seal liquid can be easily checked

MATERIALS
• Primers
• Sprayable spackle
• Sprayable paints and varnishes
• Plural-component and tar-epoxy paints (highly viscous and coarsely pigmented)
• Textured lacquers
• Hammered effect lacquers
• Zinc dust paints
• Anti-rust and micaceous iron oxide paints
• Low-solvent and solvent-free paints
• Stains
• Water-based varnished
• Transparent lacquers
• Thick-film varnishes

DIE EINSATZGEBIETE DER PHOENIX GX-SERIE
• Carpentries
• Furniture industry
• Paint shops
• Machinery and vehicle manufacture
• Steel and hall construction
• Steel processing industry
• Automatic and manual spray painting systems
• Marine coatings (interior coatings)
• Railcar manufacture
• Fluid transfer and paint supply systems
