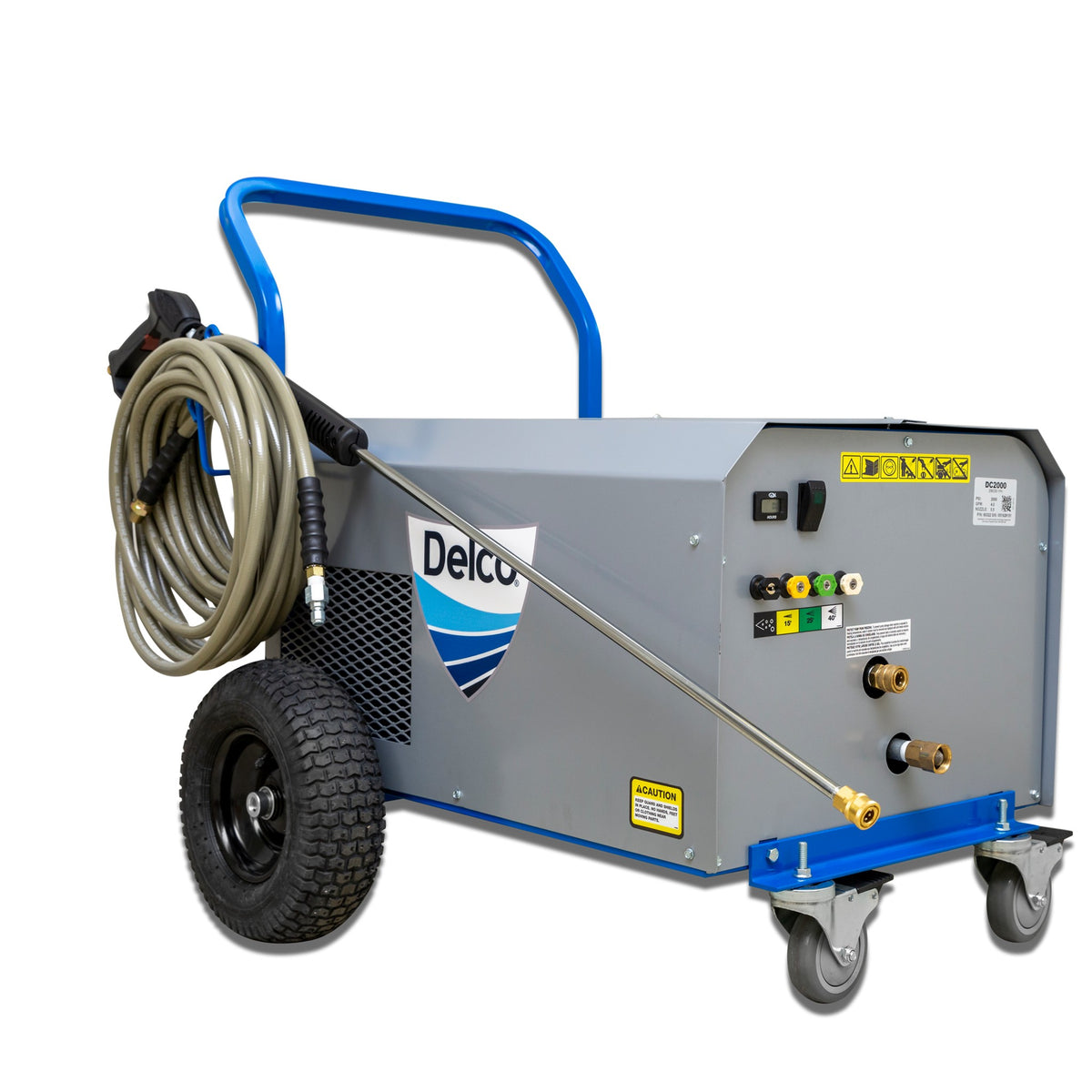

Delco CWE Portable DFMSS3050041C 3000 PSI @ 5.0 GPM 10HP 230V 3-Phase Electric Cold Water Pressure Washer, UDOR Triplex, Belt Drive

The Delco® CWE Portable DFMSS3050041C (part 65293) is an electrically powered, enclosed cabinet-style cold water pressure washer. It delivers 3000 PSI at 5.0 GPM (15,000 cleaning units) from a 10HP, 230V, 3-phase, 25A motor. Power reaches a belt-driven UDOR® industrial triplex pump through a large portable stainless steel frame. The pump's high-temperature seals accept water feeds up to 165° F. The compact design and simple operation suit shops and facilities that have 3-phase power and need a durable floor-model electric washer.

Performance & Motor

• 3000 PSI at 5.0 GPM for 15,000 cleaning units
• 10HP / 230V / 3-phase / 25A electric motor
• Automatic start/stop feature
• Built-in hour meter

Pump

• Belt-driven, slow-speed UDOR® industrial triplex plunger pump
• High-temperature seals for water feed up to 165° F
• Forged brass manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose

Frame & Portability

• Large portable stainless steel frame
• Removable handle and wheels
• Weight: 350 lbs.
• Dimensions: L 43" x W 30" x H 39"

Included Equipment

• 3/8" x 50' steel-braided Armor Hose®
• Trigger gun and lance
• Quick-connect nozzles: 15°, 25°, 40°, and Soap
• Downstream injector

Optional Accessories & Warranty

• 80655 Remote Box (Large Frame)
• 80653 Wall Mount Kit (Large Frame)
• Warranty: 10-Year Frame, 5-Year Pump, 1-Year Motor

Have questions about the Delco DFMSS3050041C or need help choosing accessories? Call Pittsburgh Spray Equipment at 888-714-1410.
