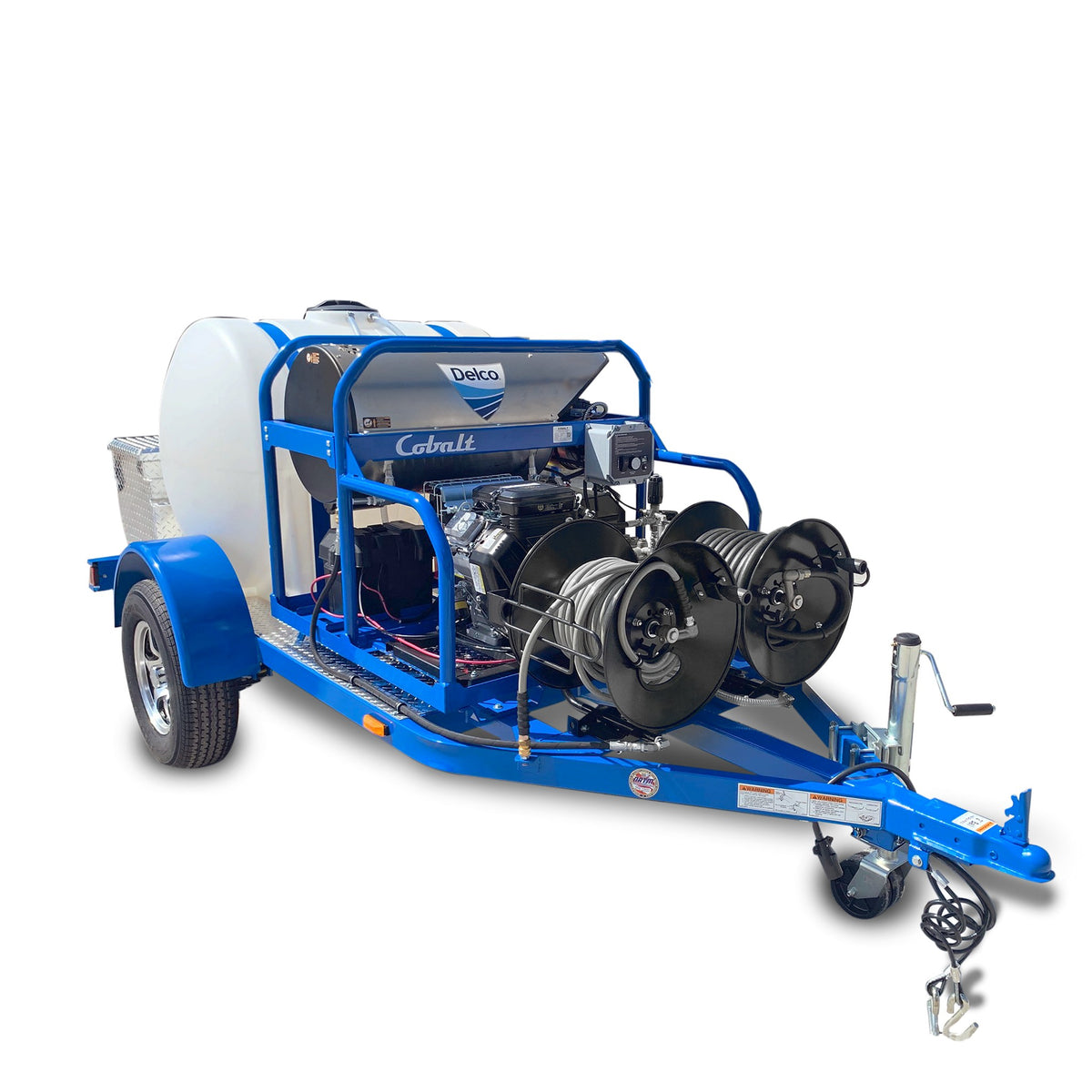

The Delco® Mobile Trailer DTRS33555141EAC11 (FNA part 95182) is a self-sufficient hot-water cleaning trailer. It delivers 3500 PSI at 5.5 GPM (19,250 cleaning units), powered by a CRX® 680 gas engine with a belt-driven UDOR® industrial triplex pump. It also has an oil-fired burner and a 525-gallon onboard water tank. It is engineered for job sites where water supply is scarce or limited, giving contractors and fleet operators dependable hot-water cleaning on a fully mobile platform. Not for sale in California.
Pump & Performance
- 3500 PSI @ 5.5 GPM hot water output, 19,250 cleaning units
- UDOR® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Engine & Burner
- CRX® 680 679cc gas engine with recoil / key-start
- Low-oil shutdown
- Oil-fired burner runs on No. 1/No. 2 diesel or kerosene
- 120VAC burner
Water Supply & Hoses
- 525 gal. translucent polyethylene water supply tank with easy-to-read water level indicators
- 200' high-pressure hose reel with 3/8" x 100' steel-braided Armor Hose®
- 200' supply hose reel with 5/8" x 90' supply hose
- Quick-connect nozzles for a variety of cleaning applications
Trailer
- Two axles rated at 5200 lbs. with leaf-spring suspension
- Electric brake system
- 6" powder-coated C-channel frame with LED lighting
- 2-5/16" ball coupling
- Jack with swivel wheel for easy maneuvering
- ST225/75R15 tires
- L 192" (includes tongue) x W 90" x H 62", 3500 lbs.
Included & Warranty
- Hose, lance, trigger gun and downstream injector
- Nozzles: 15°, 25°, 40° and soap
- Warranty: 1-Year Trailer Frame, 5-Year Pump, 3-Year Engine
Have questions about the Delco DTRS33555141EAC11 or need help choosing the right hot-water trailer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS33555141EAC11 |
| Part Number | 95182 |
| Pressure | 3500 PSI |
| Flow | 5.5 GPM |
| Cleaning Units | 19,250 |
| Engine | CRX® 680 (Recoil / Key-start) |
| Displacement | 679cc |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Burner | 120VAC |
| Water Tank | 525 gal. |
| Axles | 2 (5200 lbs. rating) |
| Tires | ST225/75R15 |
| Weight | 3500 lbs. |
| Dimensions | L 192" (incl. tongue) x W 90" x H 62" |
