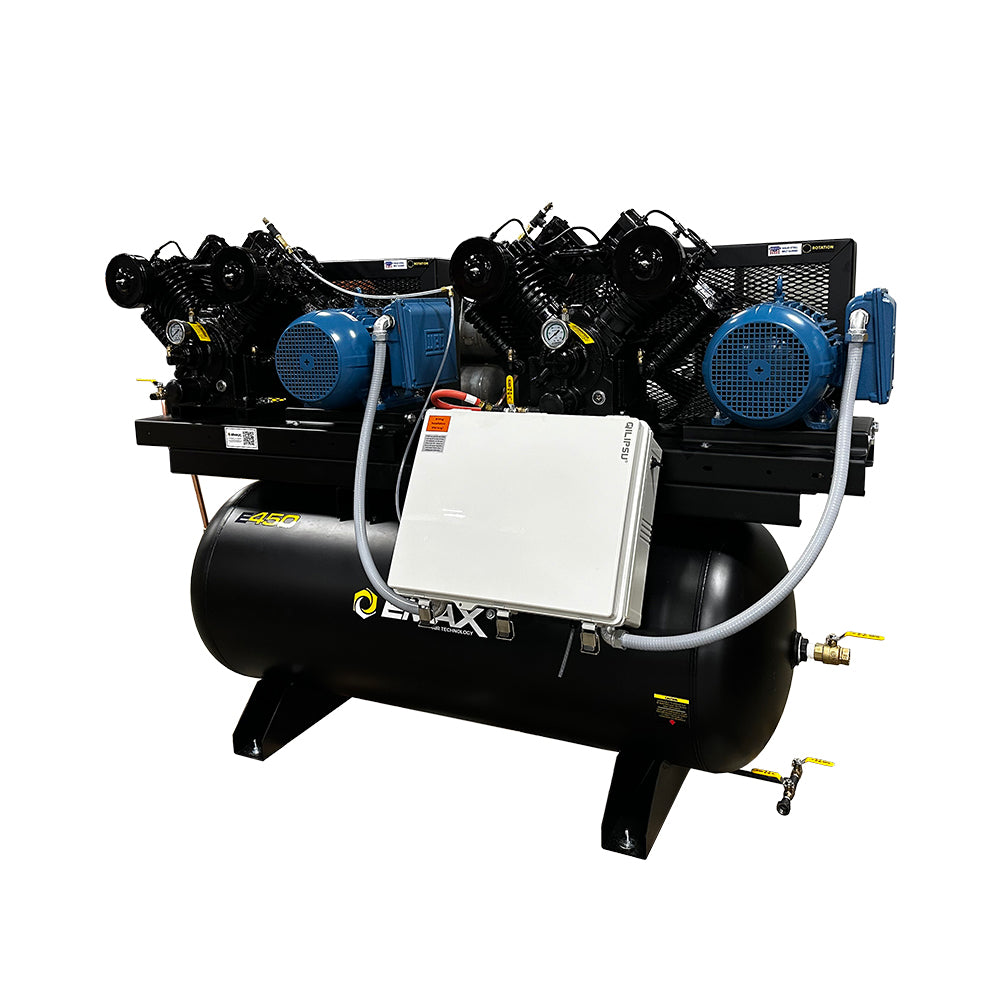

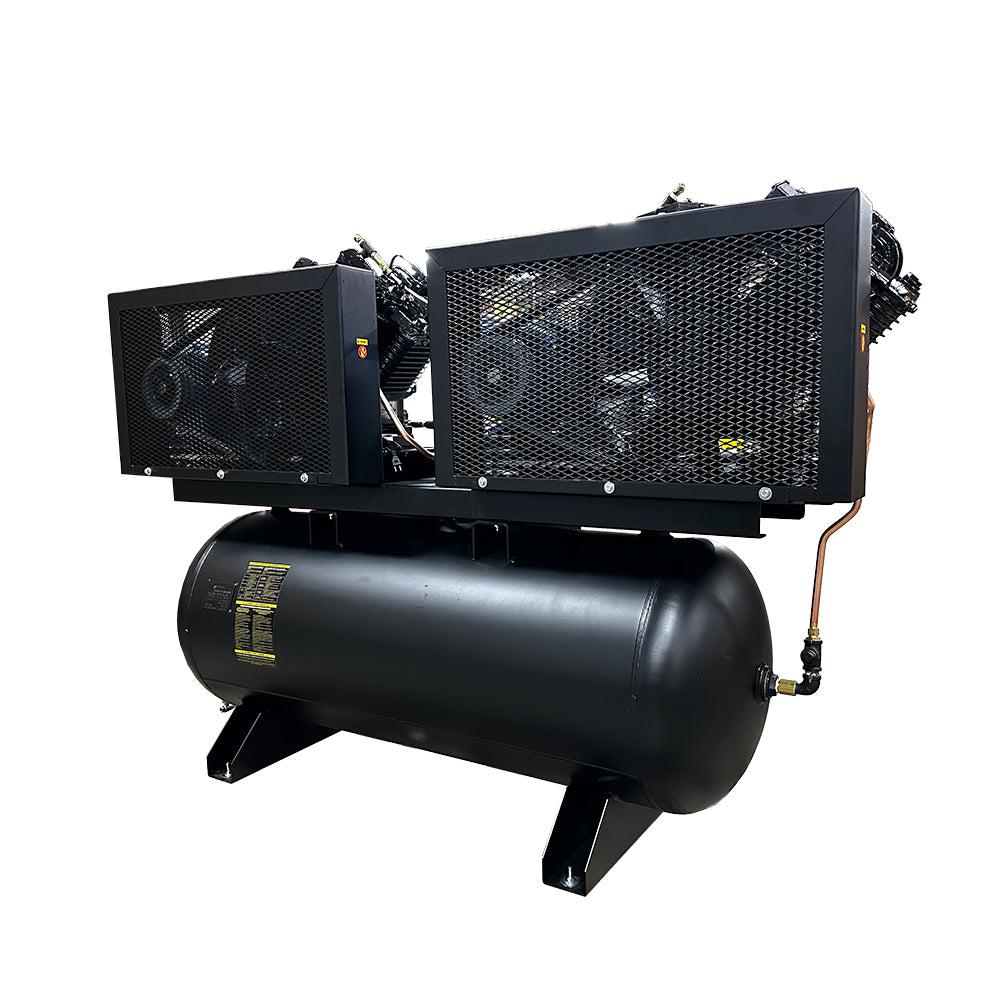

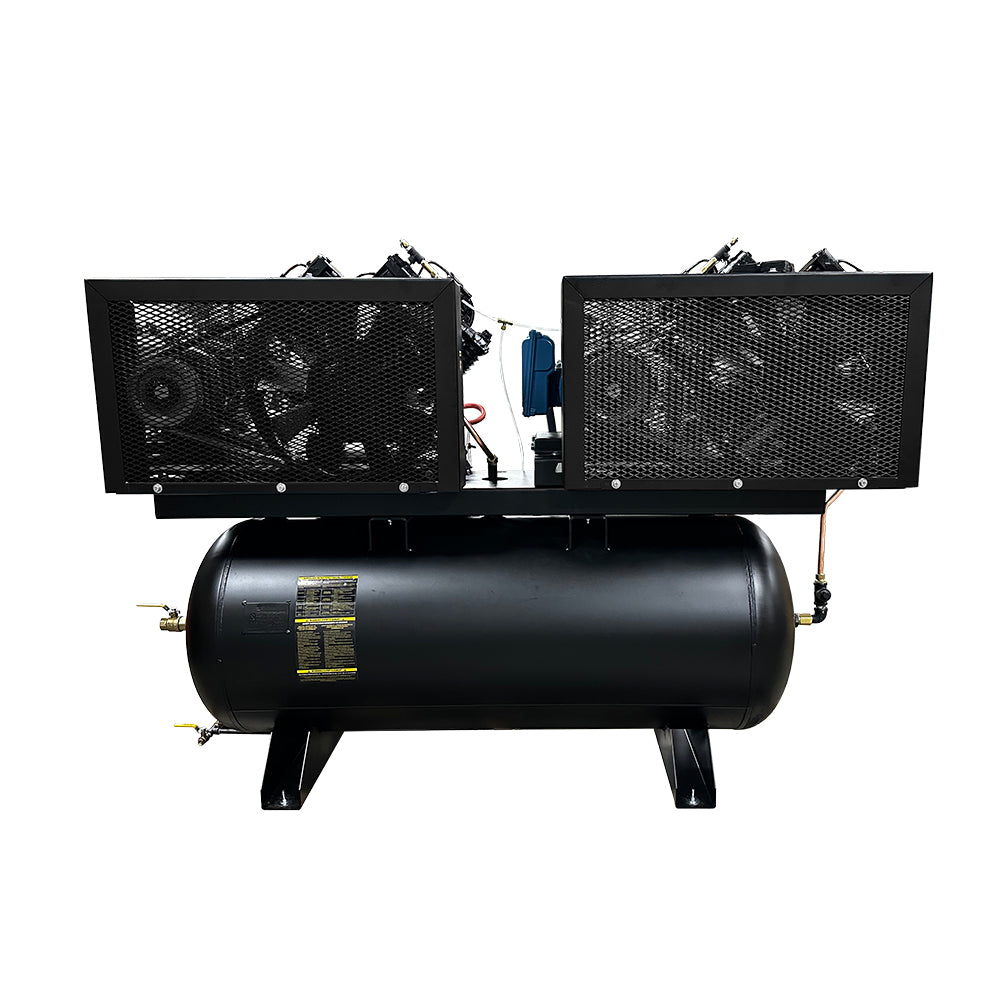

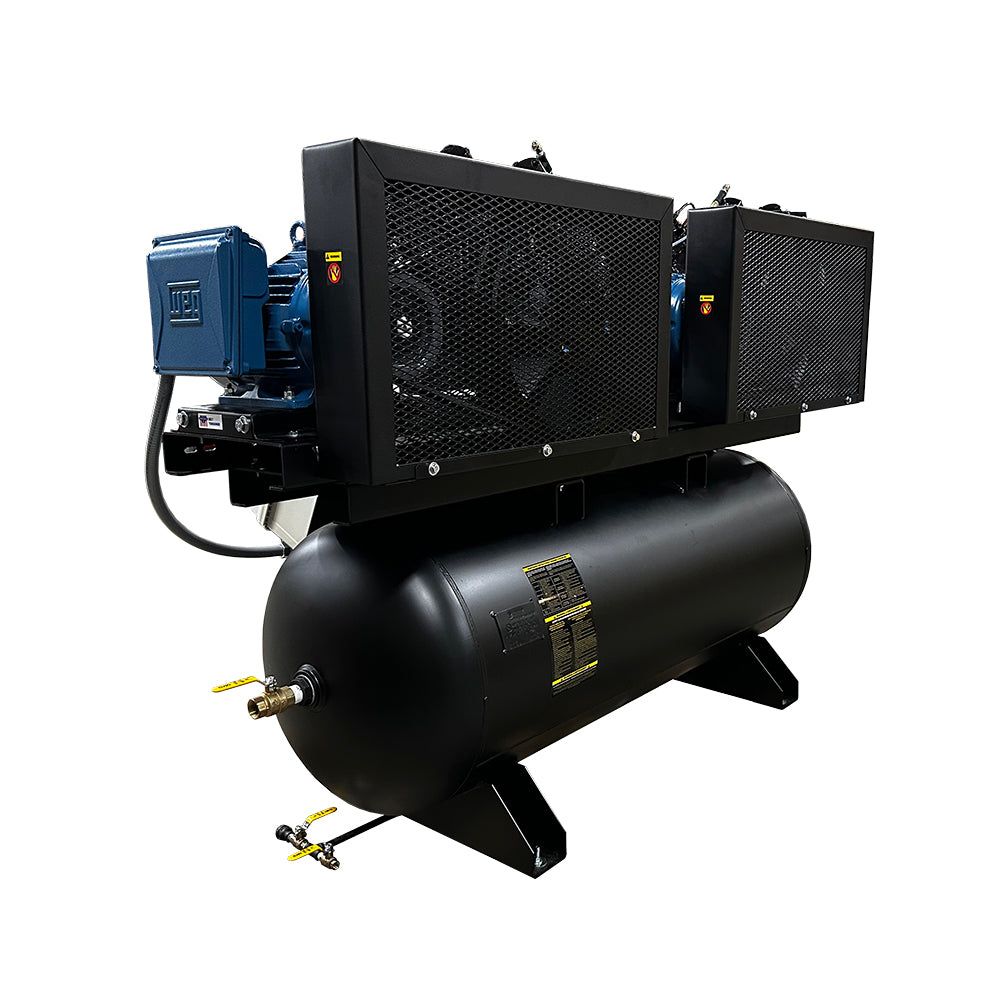

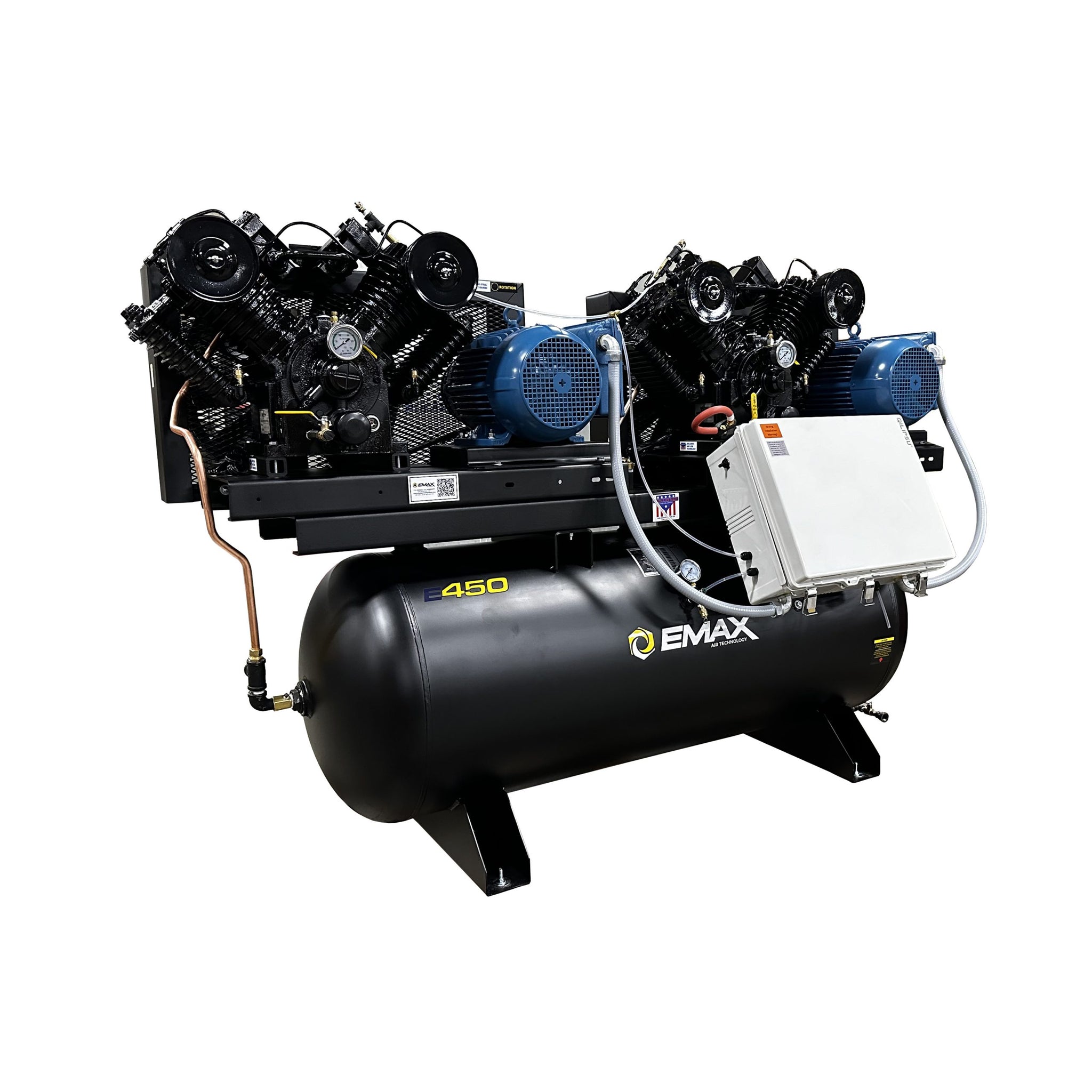

EMAX EP07DW120V3-460 NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 460V 3-Phase, 120-Gal Horizontal Tank with Alternating Switch

The EMAX EP07DW120V3-460 is a NEMA4-compliant, weather-resistant duplex air compressor that pairs two 7.5 HP two-stage, pressure-lubricated pumps (15 HP total) with a 120-gallon horizontal tank and an alternating switch. It delivers 62 CFM at up to 175 PSI and runs on 460V 3-phase power. It is suited to shops and facilities with demanding, continuous-duty compressed air needs.

Duplex Configuration & Weather Resistance

• Duplex Design: Two 7.5 HP pumps on a single 120-gallon horizontal tank provide a combined 15 HP and 62 CFM.

• Alternating Switch: Included with the duplex package.

• NEMA4 Compliant: Weather-resistant construction.

• Electrical Package: TEFC motors running at 1,740 RPM, with a magnetic starter and fixed start type, wired for 460V 3-phase.

• Certifications: ASME and CRN certified.

Pressure Lubrication System

• Gear-Driven Oil Pump: Mounted to the rear of the crankshaft, it generates positive oil pressure. It delivers a continuous flow of oil to each bearing point, which keeps bearings cool and extends pump life.

• Rifle-Drilled Crankshaft & Rods: Oil flows directly to key wear points, including the bearings, piston pin and other high-friction components.

• Spin-On Oil Filter: An automotive-style filter keeps oil clean and simplifies maintenance during oil changes.

• Analog Oil Pressure Gauge: Lets operators monitor oil pressure accurately.

• Built for Continuous Duty: Unlike splash-lubricated systems, pressure lubrication delivers oil precisely where it's needed. This reduces friction, wear and heat in high-stress environments.

Cast Iron Two-Stage Pump

• Cast Iron Major Components: The crankcase, cylinder heads, cylinders, connecting rods, crankshaft and high-pressure piston are all cast iron, for greater durability and rigidity than aluminum.

• Cast Iron High-Pressure Pistons: Designed to withstand heavy loads and prevent cylinder scoring and pump failure.

• CNC-Machined Connecting Rods: Solid cast iron rods give maximum rigidity and strength at the crankshaft end, which is where aluminum rods commonly fail.

• Fully Rebuildable: Replaceable bearing inserts and wrist pins let you rebuild the connecting rod assembly instead of throwing it away.

• Aluminum Low-Pressure Pistons: Used for balance and efficiency, since they operate under low stress (about 45 PSI).

• Pump Details: Pump model APP4V1043TP runs at 590 RPM with an estimated pump life of 70,000 hours.

Valves, Rings & Seals

• CNC-Machined Disc Valves: These precision surface-ground concentric ring valves seal better and last longer than feather or fixed reed valves. Service is quick: remove the retainer, lift out the valve for inspection and reinstall it within minutes.

• Head Unloader Ready: All valves are engineered to support an automatic head unloader system. Head unloaders relieve the intake valve during operation, which improves cooling and reduces wear in constant-run applications.

• Four-Ring Piston Design: Overlapping rings minimize compression loss and reduce oil carryover. Two oil control rings remove excess oil on the downstroke, and two compression rings prevent blow-by.

• Non-Oil-Absorbent Gaskets: Provide a reliable seal that minimizes oil leakage and reduces maintenance.

Drive System & Tank Features

• Heavy-Duty Cast Iron Flywheel: Each 7.5 HP pump uses a 20" flywheel with two B-style groove belts and nine large cooling fins. The flywheel's added mass reduces amp draw and improves pump cooling.

• Belt Tensioner & Pump Riser: Both are included for easier setup and belt maintenance.

• Automatic Tank Drain: Removes condensate from the 120-gallon horizontal tank.

• Outlet & Service: The unit has a 1" outlet and a 2-quart oil capacity, and is supported by service kit EFKIT008WBS.

Need help confirming this duplex compressor is the right fit for your air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 for sizing help.

Specifications — EP07DW120V3-460
