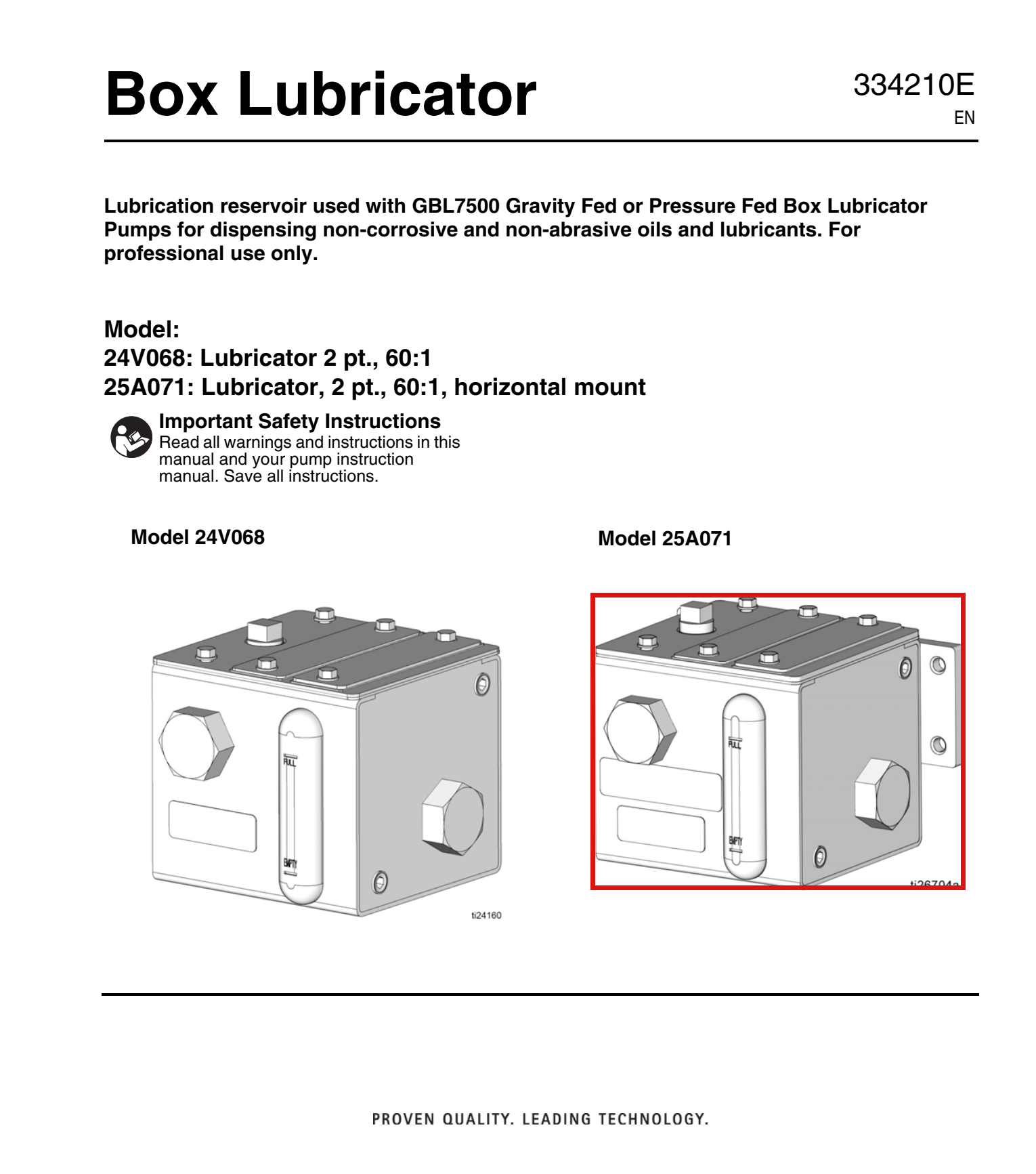

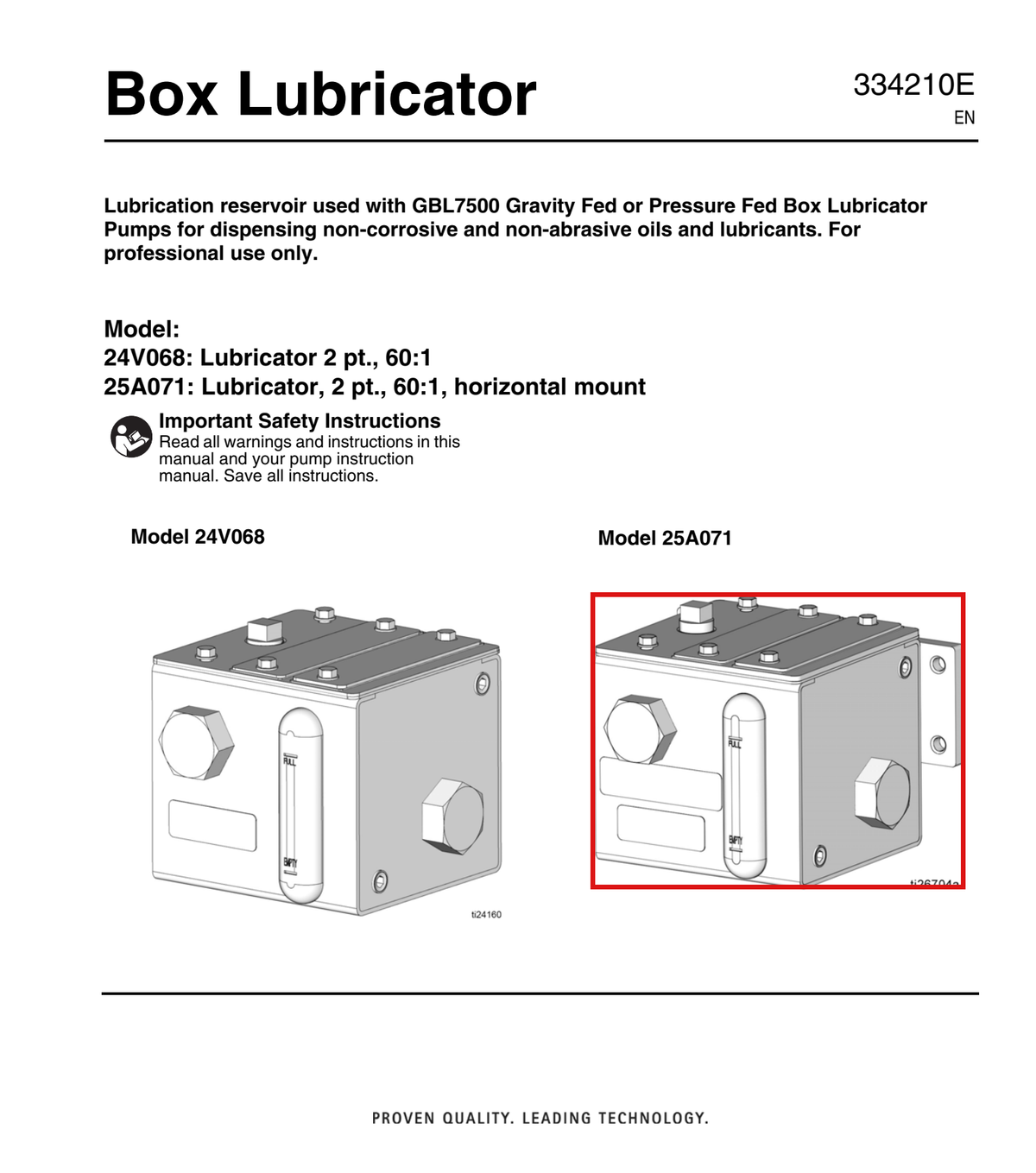

Lubricator, 2 pt., 60:1, Horizontal Mount
Specifications
| Compatible Material | Oil |
| Lubricator Gear Ratio | 60:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 2 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Model | Manzel |
| Overall Depth (in) | 7.13 |
| Overall Width (in) | 5.5 |
| Pump Size (in) | 3/16, 1/4, 3/8 |
| Type | Box Lubricator |
| Wetted Material | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Overall Depth (cm) | 18.1 |
| Overall Depth (mm) | 181.1 |
| Overall Width (cm) | 13.97 |
| Overall Width (mm) | 139.7 |
