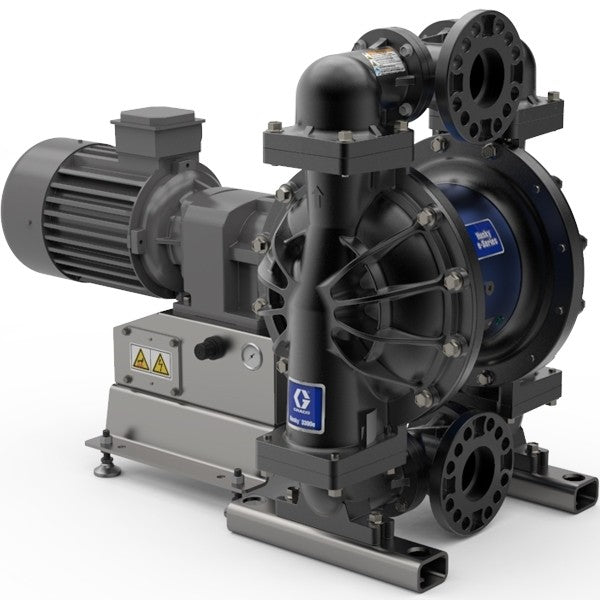

Husky 3300e 3" AL Electric Diaphragm Pump; 7.5 Hp AC Motor, 240V CMPSR, End Port NPT, AL Center, SS Seat, PT Ball, PT Diaphragm
Specifications
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 20/10A |
| Maximum Cycle Rate (CPM) | 185 |
| Maximum Flow Rate (GPM) | 220 |
| Maximum Fluid Pressure (psi) | 80 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Working Pressure (psi) | 80 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Husky |
| Motor Type | AC |
| Power Rating (HP) | 7.5 |
| Power Source | Electric |
| Seat Material | Santoprene |
| Standards Met | Class 1, Division 1 |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Weight (lb) | 437 |
| Wetted Material | Aluminum, Santoprene |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Outlet Size (mm) | 76.2 |
| Maximum Air Pressure (bar) | 5.52 |
| Maximum Flow Rate (L/min) | 681.30 |
| Maximum Fluid Pressure (bar) | 5.52 |
| Maximum Operating Temperature (°C) | 82.22 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (mm) | 12.70 |
| Minimum Operating Temperature (°C) | -40.00 |
