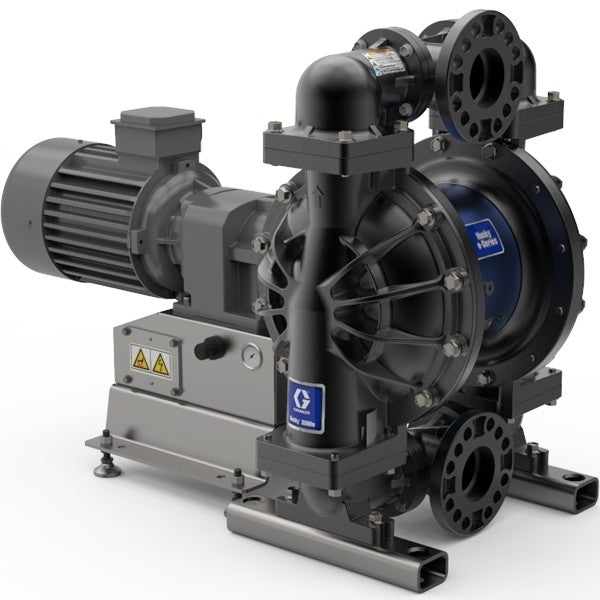

Husky 3300e 3" AL Electric Diaphragm Pump; 7.5 Hp AC Motor, 240V CMPSR, End Port BSP, AL Center, SS Seat, PT Ball, PT Diaphragm
Specifications
| Air Inlet Size (in) | None |
| Air Inlet Thread Gender | None |
| Air Inlet Thread Type | None |
| Application | Industrial |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Connection Type | BSPT |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 185 |
| Maximum Flow Rate (GPD) | 1.2 |
| Maximum Flow Rate (GPM) | 220 |
| Maximum Fluid Pressure (MPa) | 0.55 |
| Maximum Fluid Pressure (psi) | 80 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Working Pressure (psi) | 80 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Husky |
| Motor Type | AC |
| Overall Height (in) | 23.6 |
| Power Rating (HP) | 7.5 |
| Power Source | Electric |
| Seat Material | Santoprene |
| Series | 3300e |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Weight (lb) | 308 |
| Wetted Material | Aluminum, Santoprene |
| Fluid Inlet Size (cm) | 7.6 |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Outlet Size (cm) | 7.6 |
| Fluid Outlet Size (mm) | 76.2 |
| Maximum Air Pressure (bar) | 5.52 |
| Maximum Air Pressure (kPa) | 551.58 |
| Maximum Flow Rate (L/min) | 681.30 |
| Maximum Fluid Pressure (bar) | 5.52 |
| Maximum Fluid Pressure (kPa) | 551.58 |
| Maximum Operating Temperature (°C) | 82.22 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (mm) | 12.70 |
| Minimum Operating Temperature (°C) | -40.00 |
