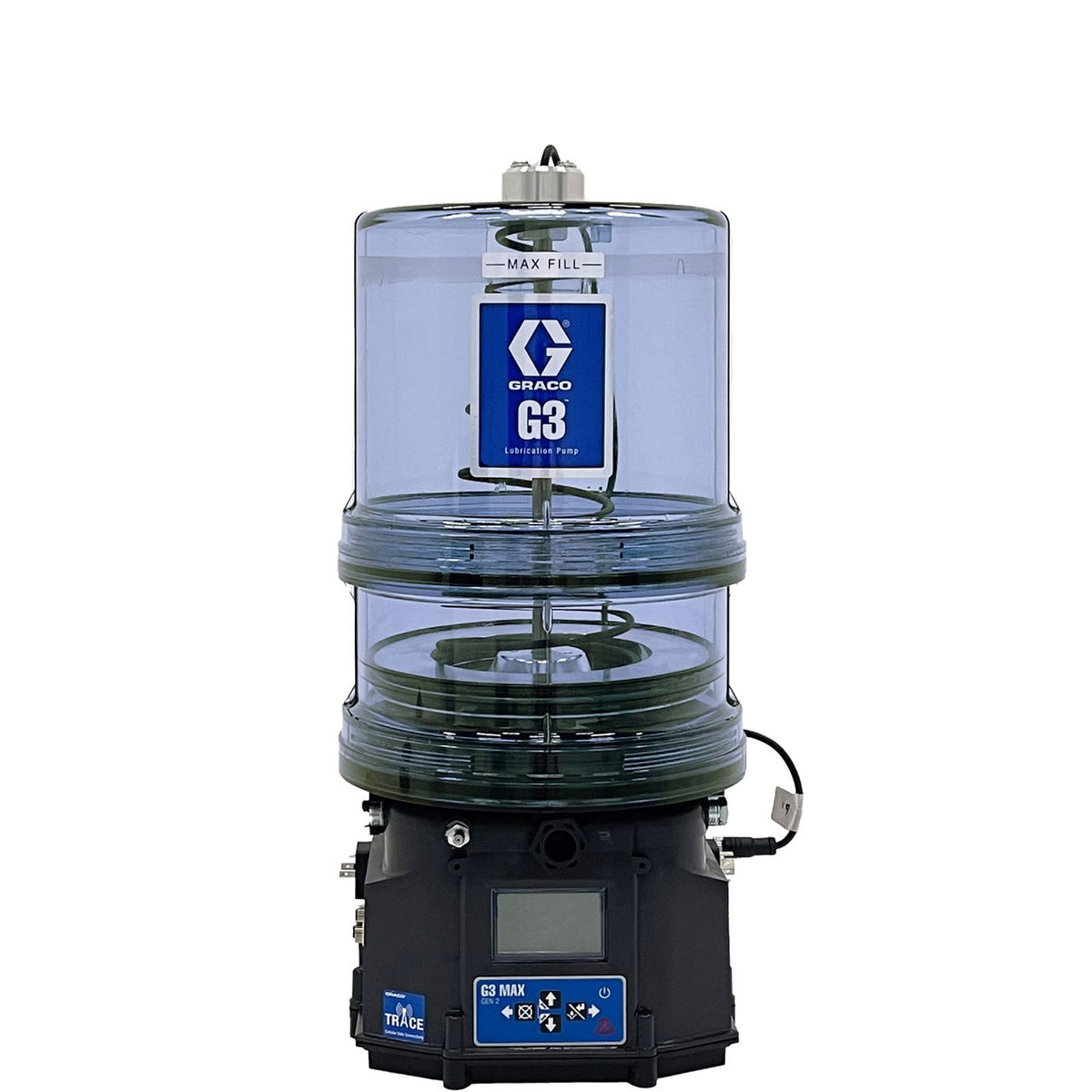

G3® Max Grease Lubrication Pump with Cellular Data Connectivity, 24 VDC, 8 liter reservoir with follower plate, level sensor, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor, machine count and one cycle switch
Specifications
| Cellular Connectivity | Yes |
| Compatible Material | Grease |
| Fluid Outlet Thread Type | NPSF |
| Includes | Graco Trace® Cellular Data Connectivity, Follower Plate, Level Sensor, CPC-7 I/O connector for power, remote button, and alarms for telematics, M12 connectors for vent valve, one pressure sensor (analog or digital), machine count and one cycle switch |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Reservoir Material | Polyamide |
| Reservoir Size (L) | 8 |
| Series | Max |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Working Pressure (bar) | 351.6 |
