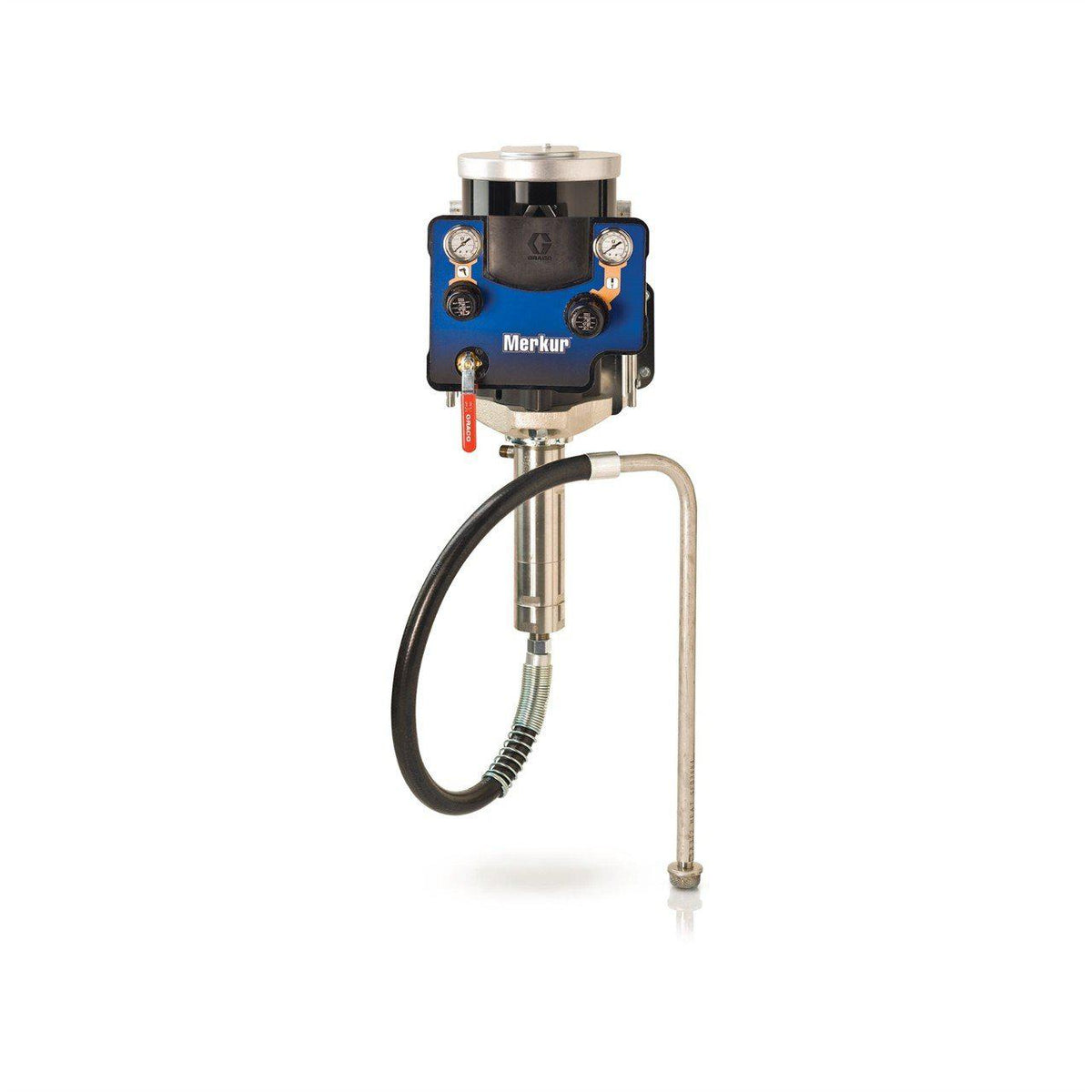

Graco G24W07 24:1 Merkur 2400 PSI @ 2.4 GPM Air-Assisted Airless Sprayer - Wall Mount

24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Wall Mount, G40 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Muffler provides low operating noise levels
• External valve access allows for easy servicing and online replacement to minimize downtime
• Operator Control Panel located at operator height for easy setting and monitoring
• Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service

Convertible	Non-Convertible
Fluid Inlet Size (in)	1
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	3/4
Fluid Outlet Thread Type	NPT
Gun Included	1
Gun Model	G40
Gun Technology	Air-Assisted
Gun Type	Air-Assisted
Hose Inlet Diameter (in)	0.1875
Includes	Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM)	2.4
Maximum Hose Length (ft)	25
Maximum Working Pressure (MPa)	16.5
Maximum Working Pressure (psi)	2400
Model	Merkur
Motor Type	Pneumatic
Mount Type	Wall Mount
Number of Guns	1
Power Source	Air
Pressure Type	High Pressure
Product Type	Spray Package
Pump Ratio	24:1
Pump Type	Pneumatic Piston Pump
Spray Type	Air-Assisted
Technology Type	Air-Assisted
Type	Air-Assisted Airless Sprayer
Weight (lb)	89
Wetted Material	Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer
