Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine
Katool KT-WL70 Rim straightener turning, rims wheel straightening machine

Katool KT-WL70 Rim straightener turning, rims wheel straightening machine

Regular price
$5,999.00
Sale price
$5,999.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

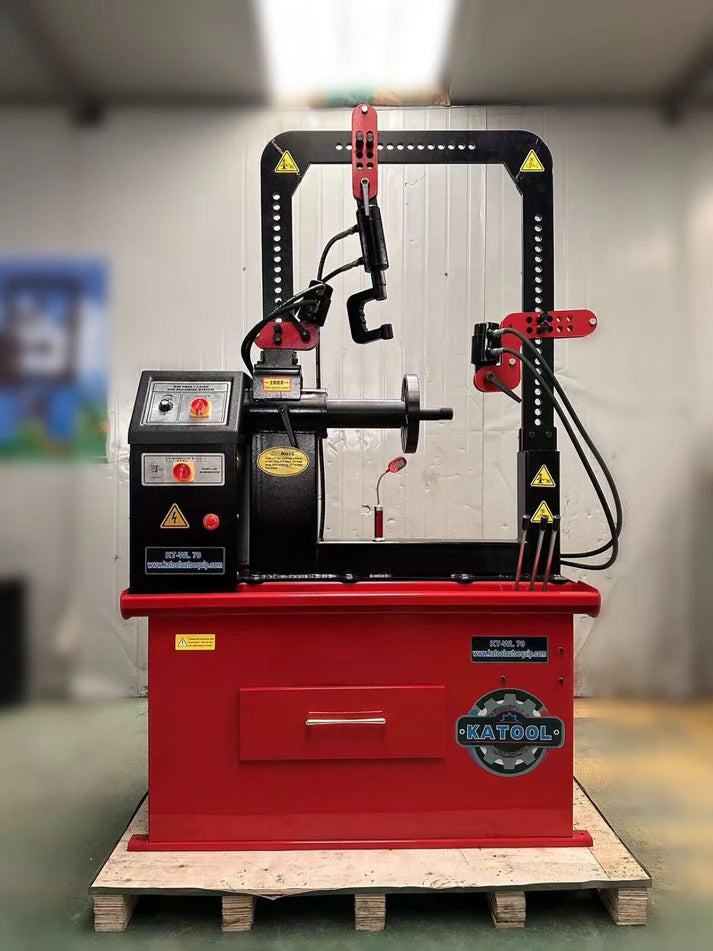

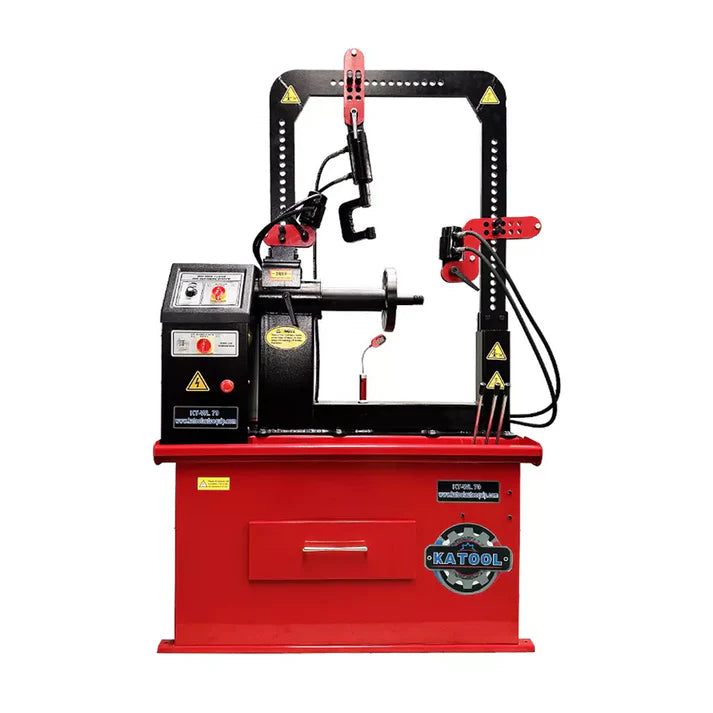

The Katool Automotive Equipment KT-WL70 Rim Lathe is a professional-grade wheel repair system designed to straighten, restore, and refinish damaged rims with precision and efficiency. Combining hydraulic straightening power with an integrated lathe function, the KT-WL70 allows technicians to both repair structural damage and machine the wheel surface for a clean, finished result.

Built for high-demand environments such as wheel repair shops, tire centers, and automotive service facilities, the KT-WL70 is engineered to handle a wide range of wheel sizes while delivering smooth, controlled operation. Its hydraulic drive system provides consistent force for straightening, while the lathe unit refines the wheel after repair, improving both performance and appearance.

Constructed from Q235 and Q245 steel, the KT-WL70 is designed for durability and long-term reliability in professional shop conditions.

Key Features

  • Combination rim straightener and lathe machine
  • Designed for repairing and refinishing damaged wheels

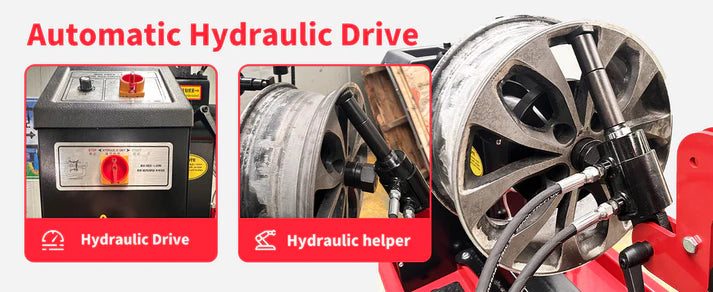

  • Hydraulic system for controlled straightening force
  • Integrated lathe unit for post-repair machining
  • Handles a wide range of wheel sizes for versatile shop use
  • Heavy-duty steel construction for long-term durability
  • Ideal for wheel repair shops, tire centers, and service facilities

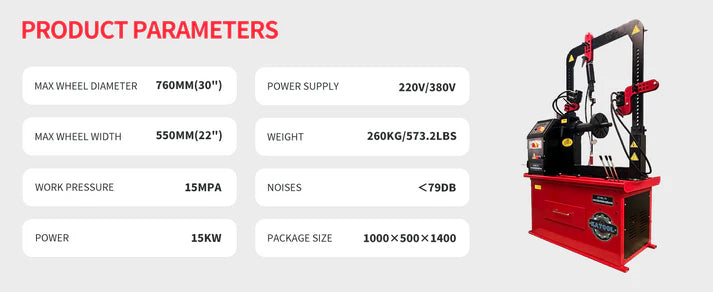

Specification Details
Model KT-WL70
Brand Katool Automotive Equipment
Product Type Rim Straightener with Lathe Function
Max Wheel Diameter Up to 30"
Max Wheel Width Up to 21.6" (550 mm)
Motor Power 15 kW
Drive System Hydraulic
Noise Level ~75–79 dB
Dimensions 55.1" × 35.4" × 54.7" (1400 × 900 × 1390 mm)
Net Weight Approx. 330 kg (727 lbs)
Construction Q235 / Q245 steel
