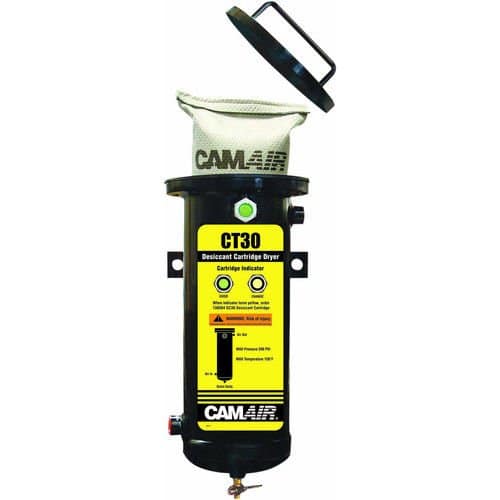

The desiccant air dryer is designed to be a point of use system. It is capable of removing dirt, water, oil, and water vapor from compressed air. It consists of a separator and desiccant cartridge. The cartridge has a housing material that acts like a coalescer and final filter.
SPECIFICATIONS
| Air Inlet Air Outlet Air Flow Capacity 30 CFM Maximum Operating Pressure Maximum Temperature Humidity Indicator Water Vapor Removal Particle Removal Manual Drain |
1/2" NPT (Female) 1/2" NPT (Female) 200 PSIG (14 Bar) 150o F (65.6o C) Green: OK Yellow: Replace Desiccant -40o F Dew Point 0.1 micron included |
