Low-Ceiling Muscle with APEX Attitude

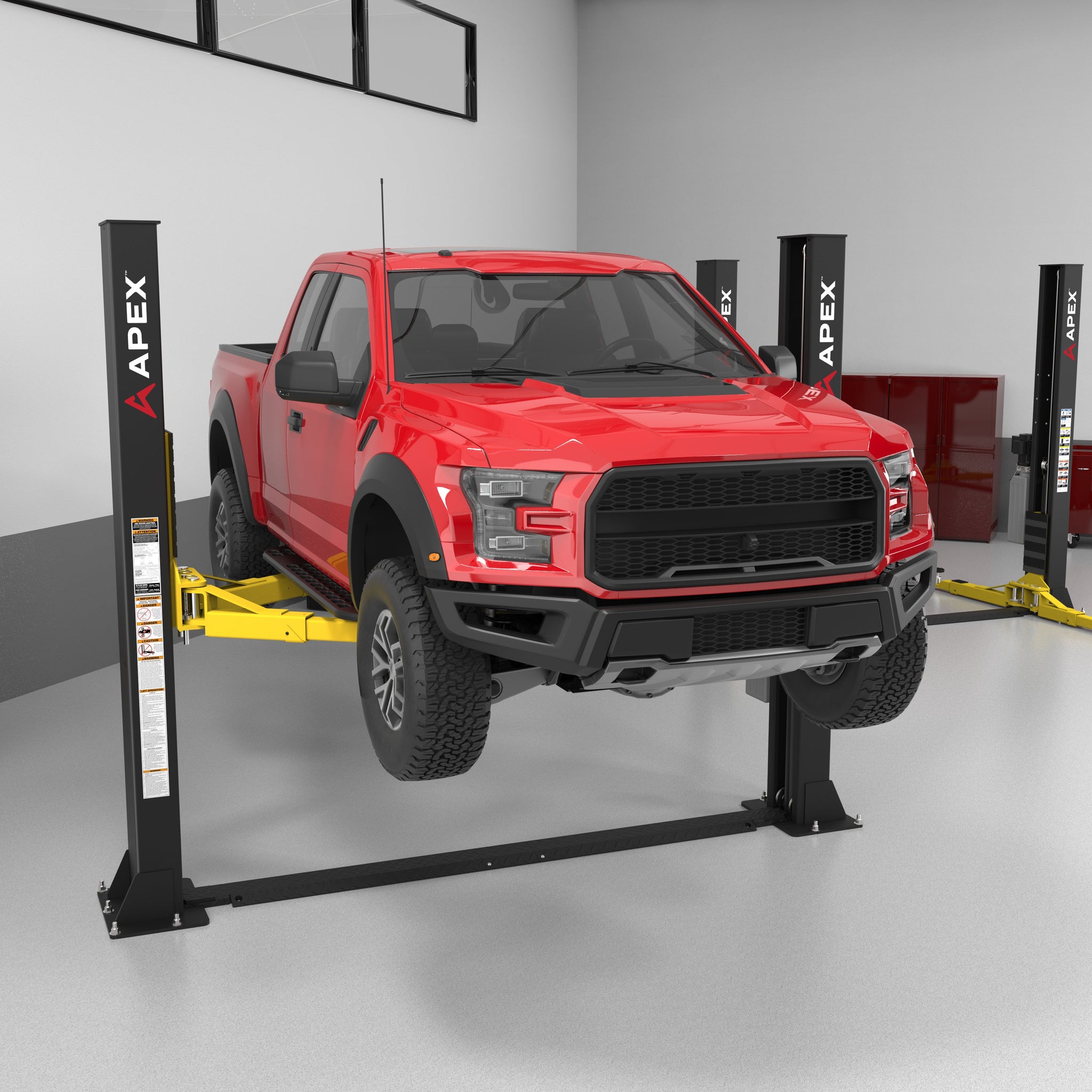

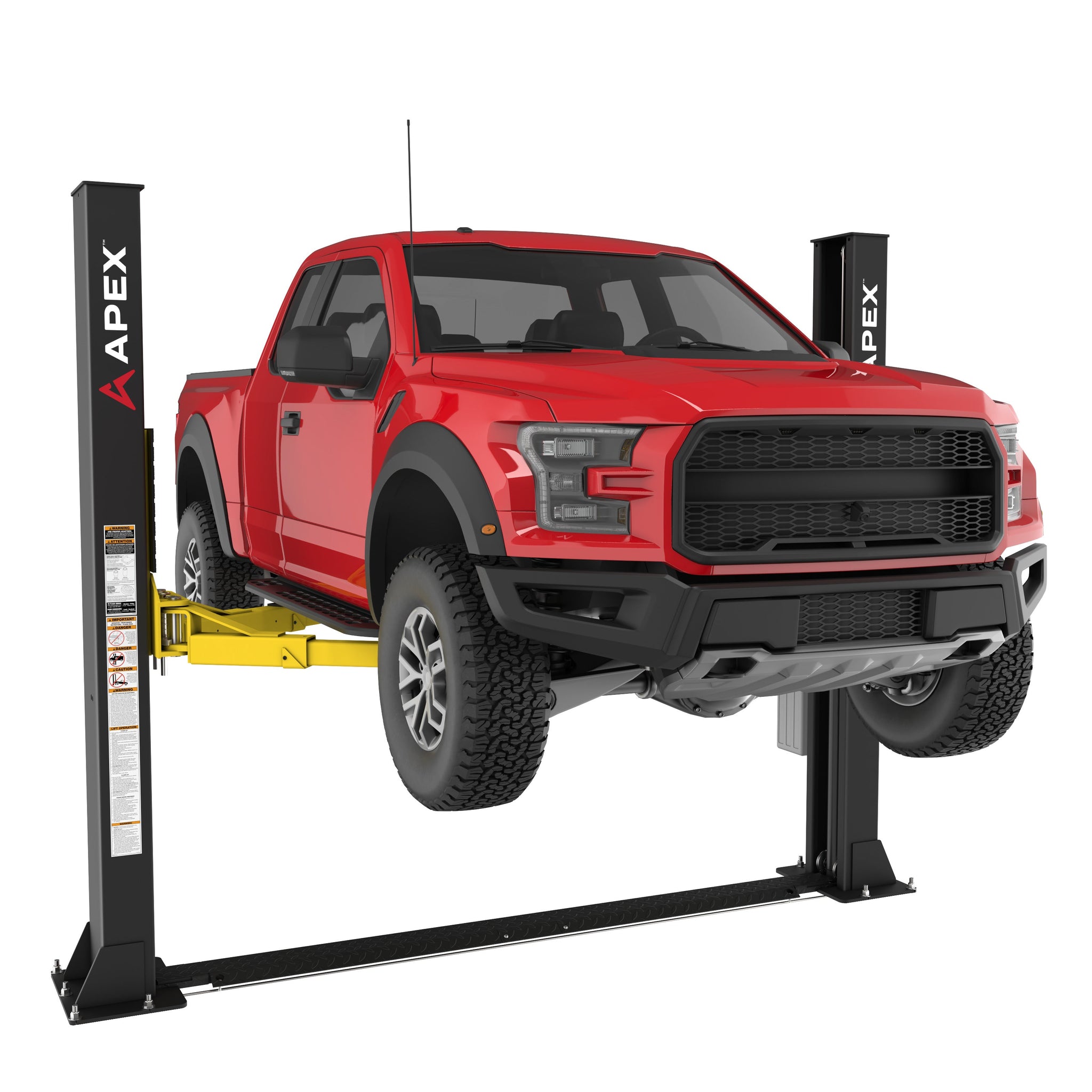

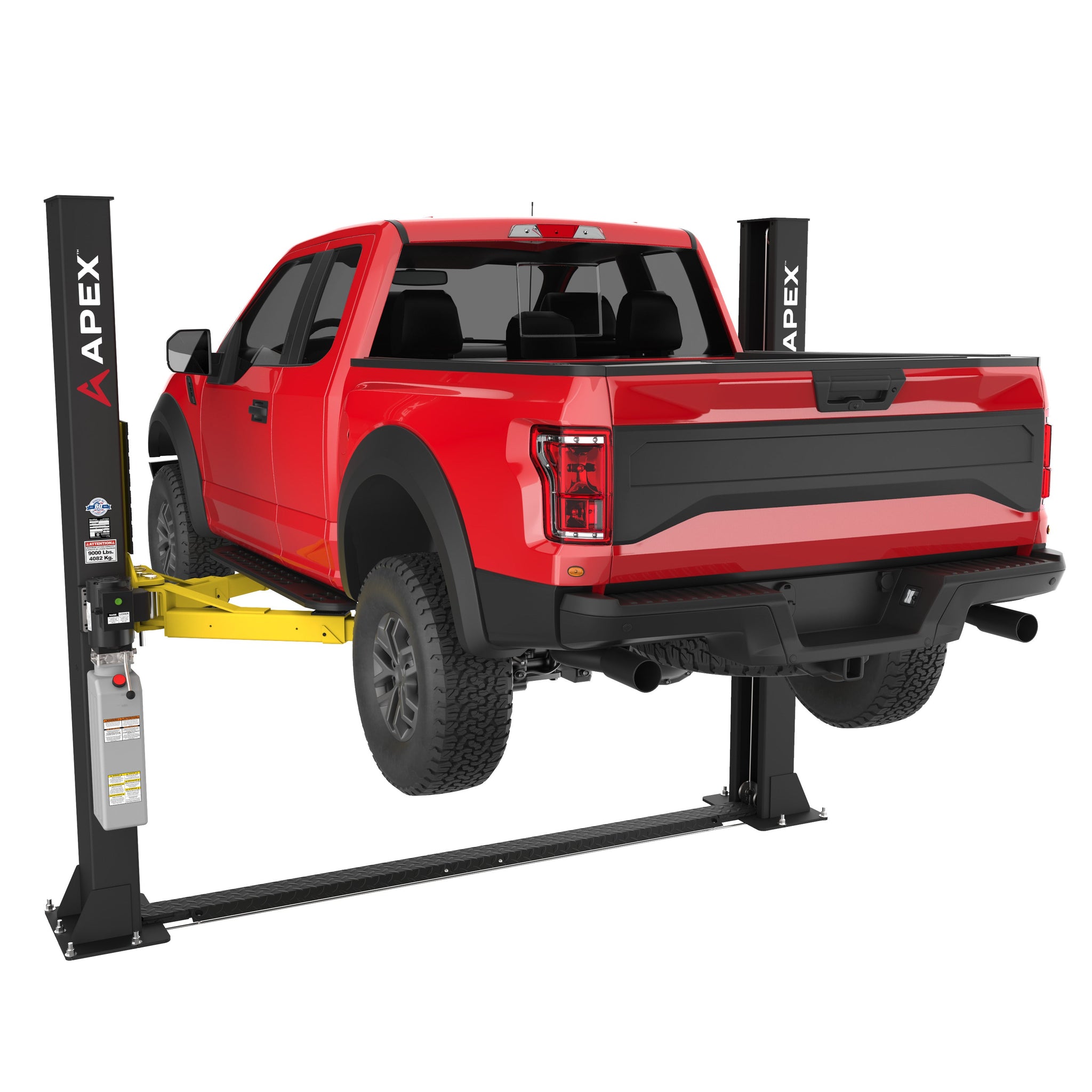

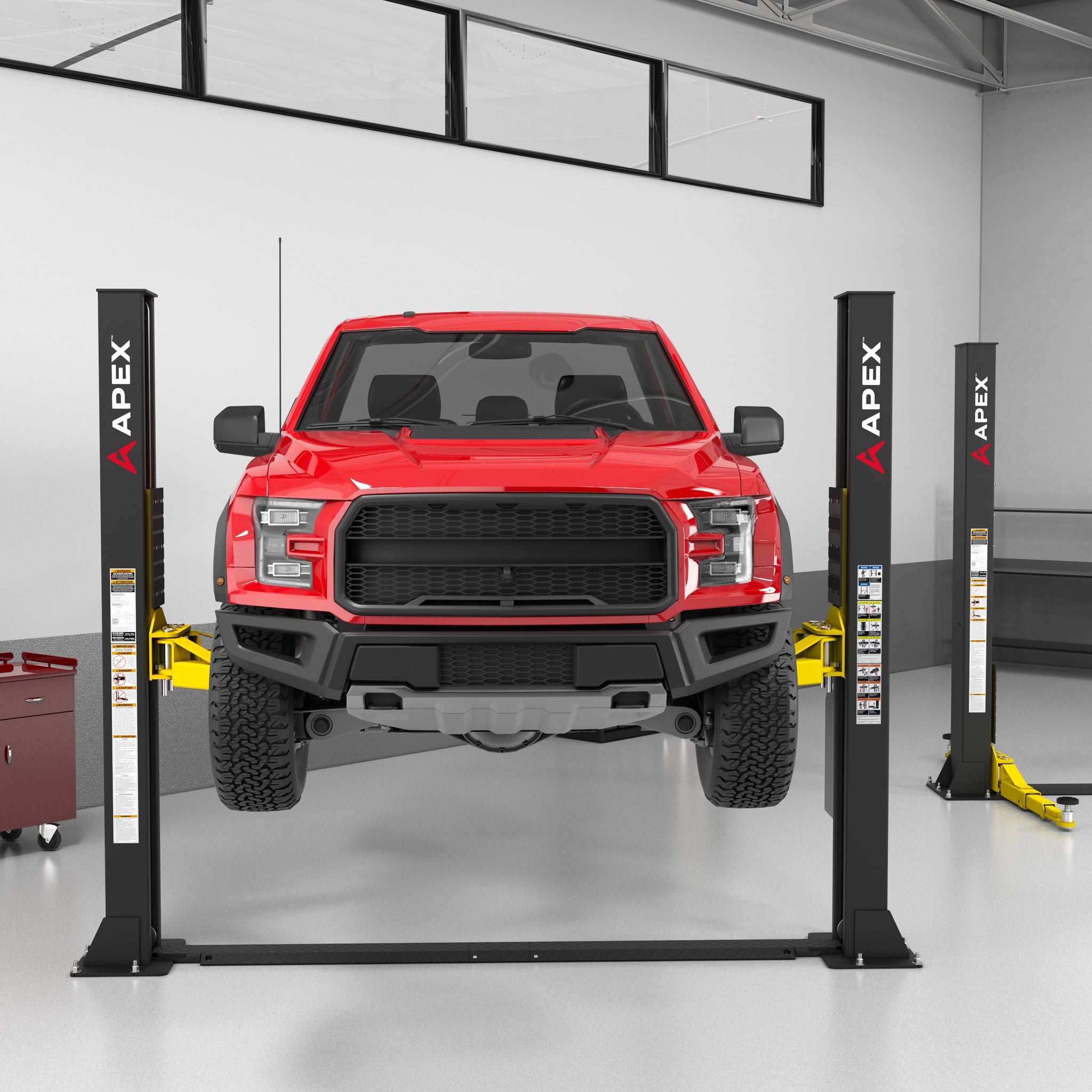

The APEX AL9LC Floorplate Two-Post Lift gives shops and serious home garages a professional lifting solution when overhead clearance is limited. With a 9,000-lb. lifting capacity and an open-top floorplate design, the AL9LC eliminates the restrictive overhead crossbar found on many two-post lifts while still delivering the strength needed for passenger cars, performance vehicles, and light trucks.
This floorplate two-post lift is especially useful for garages with lower ceilings, taller vehicles, or layouts where an overhead beam would get in the way. The AL9LC keeps the workspace open above the vehicle while providing dependable frame-engaging lifting capability, making it a smart fit for small shops, performance garages, and home mechanics who want real two-post lift performance without giving up usable vertical space.
Flexible Arm Reach for Faster Vehicle Positioning
Proper vehicle setup matters on any two-post car lift, and the AL9LC is built to make positioning faster and more predictable. Symmetric and asymmetric arm configurations allow technicians to adapt the lift arm layout to the vehicle, helping create balanced contact with approved lifting points across a wide range of cars and light trucks.

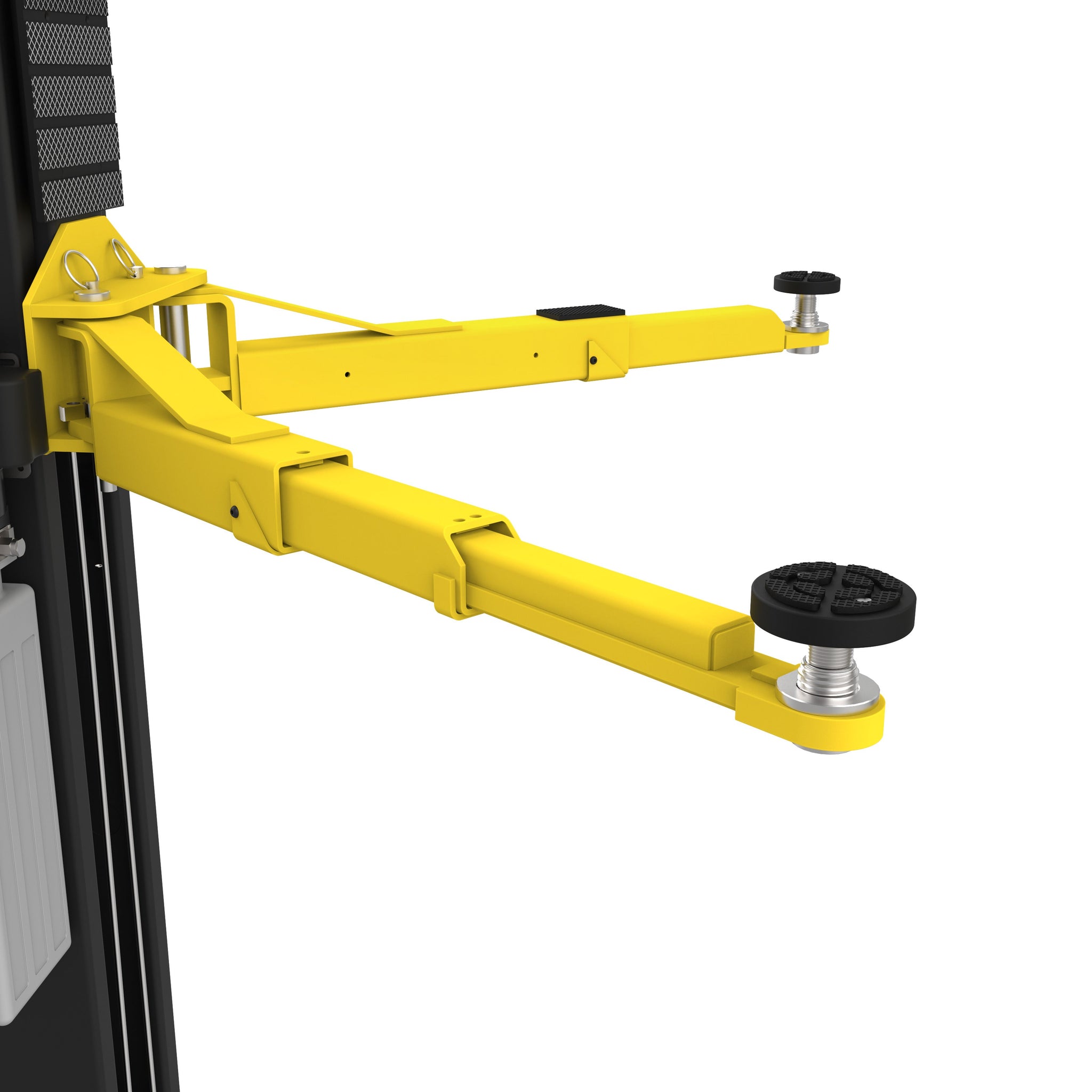

Triple-telescoping front arms and dual-stage extended rear arms provide extra reach for different wheelbases and frame designs. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, plus the included 4-piece 63 mm stackable adapter set, help create secure contact for vehicles that need additional lift-point height or frame clearance.
Chain-Over Lifting System with Heavy-Duty Construction

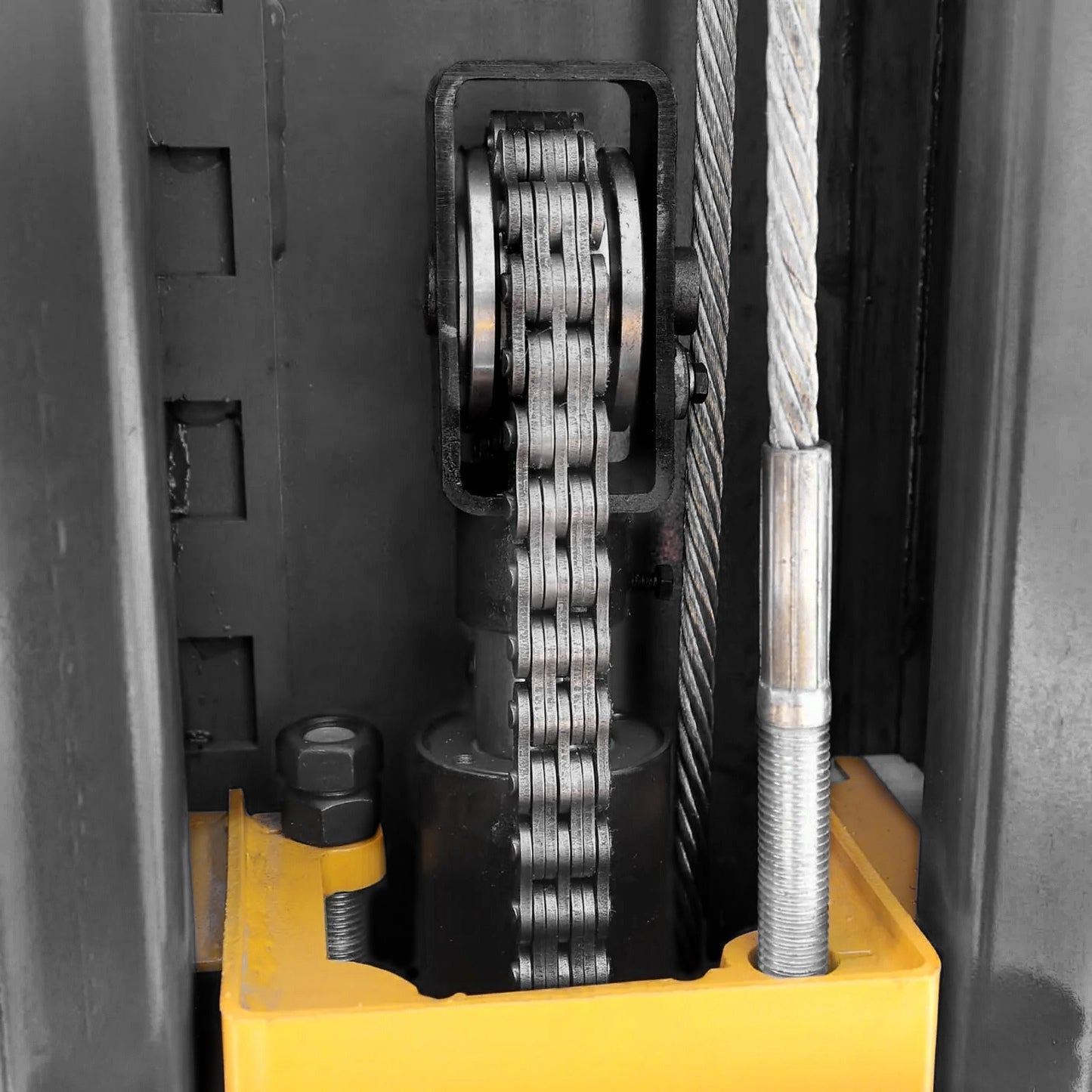

The AL9LC uses a proven chain-over lifting system built around an industrial-grade, high-strength leaf chain manufactured to ANSI standards. This design is engineered for repeated lifting cycles, dependable load movement, and low-maintenance operation in busy shop and garage environments.

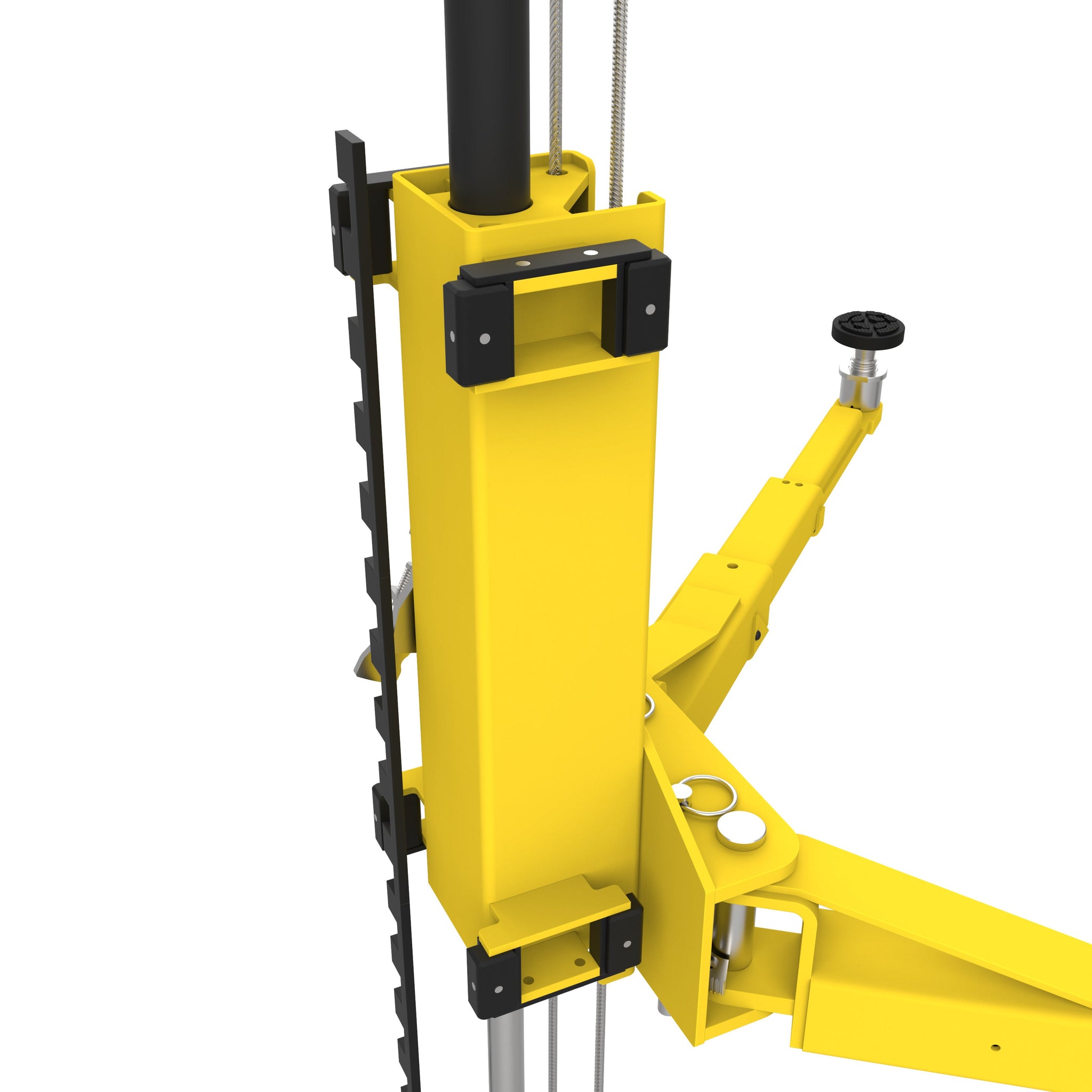

Heavy-duty 6-inch by 6-inch tubular steel carriages provide serious load-bearing strength, while oversized 20.5-inch by 15.5-inch base plates help distribute vehicle weight for improved stability. Oversized heavy-duty rollers with Zerk grease fittings and self-lubricating UHMW polyethylene guide blocks reduce friction and help keep the lift operating smoothly over time.
Automatic Safety Locks and BendPak-Backed Support

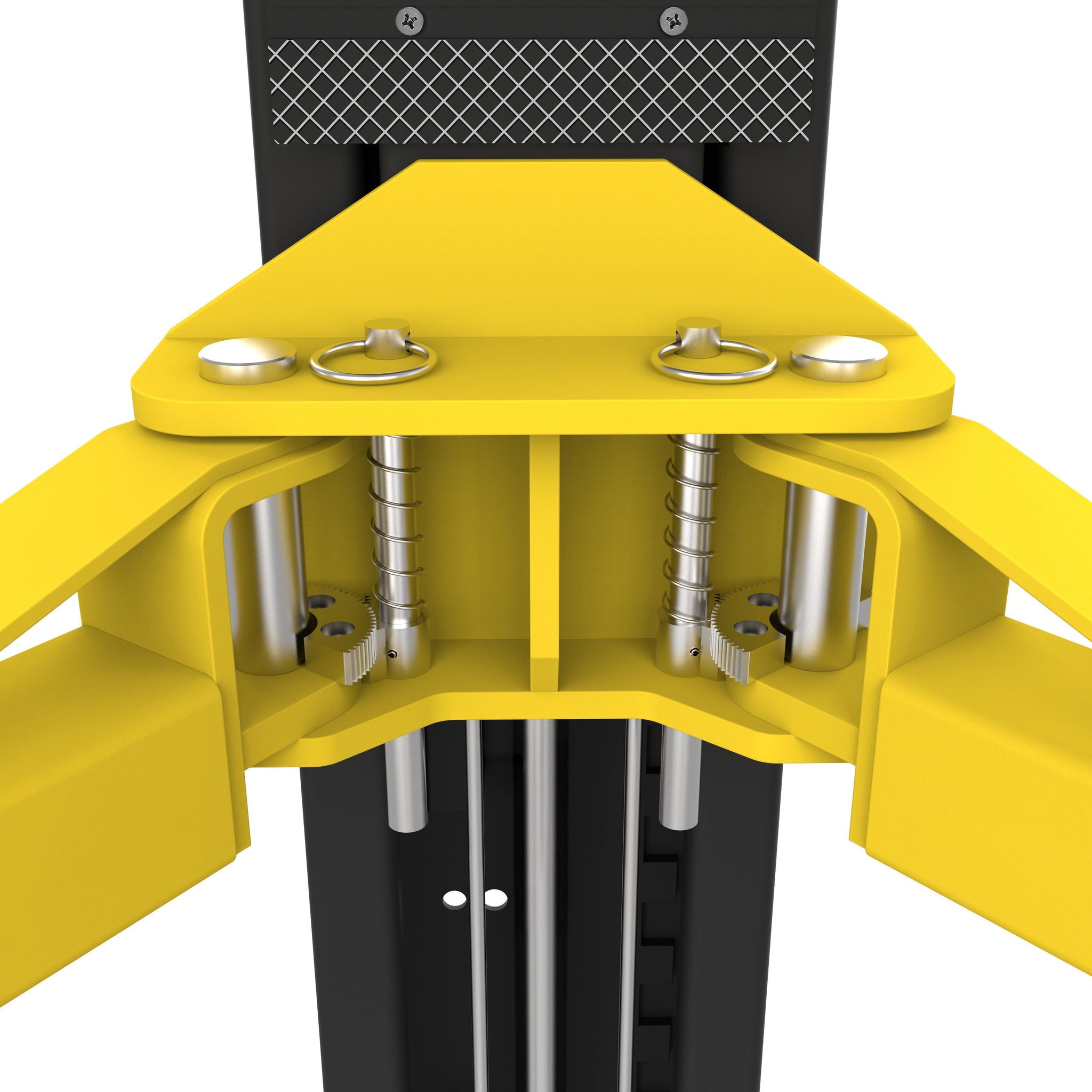

The AL9LC is designed with safety features throughout. Automatic safety locks engage every 3 inches throughout the lifting range, helping hold the load securely at working height. Automatic arm restraints help prevent unwanted arm movement once the vehicle is raised, giving technicians more confidence during service.
The AL9LC was previously sold under the GrandPrix name and now fits into the APEX lineup as part of BendPak’s broader value-focused product family. The lift retains the same floorplate architecture, chain-over lifting system, structural components, and safety features, while being backed by BendPak support and a 36-month limited warranty.
Low-Ceiling Floorplate Design
The AL9LC uses a floorplate layout with no overhead crossbar, making it a strong choice for garages where ceiling height is limited. It keeps overhead space open while delivering true two-post lifting capability.
9,000-lb. Capacity
Built to lift passenger cars, performance vehicles, and many light trucks, the AL9LC provides dependable 9,000-lb. lifting strength for shop and garage service.
Flexible Arm Geometry
Symmetric and asymmetric arm configurations help technicians position vehicles faster and more confidently. The arm design supports a wide range of lift points and wheelbases.
Chain-Over Lifting System
An industrial-grade leaf chain supports reliable lifting performance through repeated service cycles. The design is built for strength, smooth movement, and low-maintenance operation.
Automatic Safety Locks
Safety locks engage every 3 inches throughout the lifting range to help hold the vehicle securely at working height. Automatic arm restraints help keep the lift arms locked during service.
Included Adapter Set
A 4-piece 63 mm stackable adapter set helps accommodate frame designs that need extra contact height. Double-telescoping screw pads add more lift-point flexibility.
Recommended Add-ons
Features
- 9,000-lb. lifting capacity
- Floorplate two-post lift design
- Open-top layout for low-ceiling garages
- Frame-engaging vehicle lifting
- Symmetric and asymmetric arm configurations
- Triple-telescoping front arms
- Dual-stage extended rear arms
- Double-telescoping screw pads
- Tear-resistant polyurethane non-slip pads
- 4-piece 63 mm stackable adapter set included
- Automatic safety locks every 3 inches
- Automatic arm restraints
- Heavy-duty 6-inch by 6-inch tubular steel carriage
- Oversized 20.5-inch by 15.5-inch base plates
- 36-month limited warranty
Specifications
| Lifting Capacity | 9000 lb |
| Max Capacity Per Arm | 2250 lb |
| Rise | 70 in |
| Max Lifting Height with Pad | 76.5 in |
| Min Lifting Height with Pad | 3.9 in |
| Lifting Time | 65 seconds |
| Height | 109.5 in |
| Width | 137.25 in |
| Outside Columns | 127.5 in |
| Inside Columns | 113.5 in |
| Drive-Thru Clearance | 103 in |
| Floorplate Height | 1.25 in |
| Front Arm Reach Min | 22.5 in |
| Front Arm Reach Max | 43.25 in |
| Rear Arm Reach Min | 33.5 in |
| Rear Arm Reach Max | 53.25 in |
| Screw Pad Adjustment | 2 in |
| Horsepower | 5 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | < 70 dB |
| Shipping Dimensions | 27 x 114 x 27 in |
| Shipping Weight | 1458 lb |
| Shipping Method | LTL |
| Offload Requirement | Forklift |
